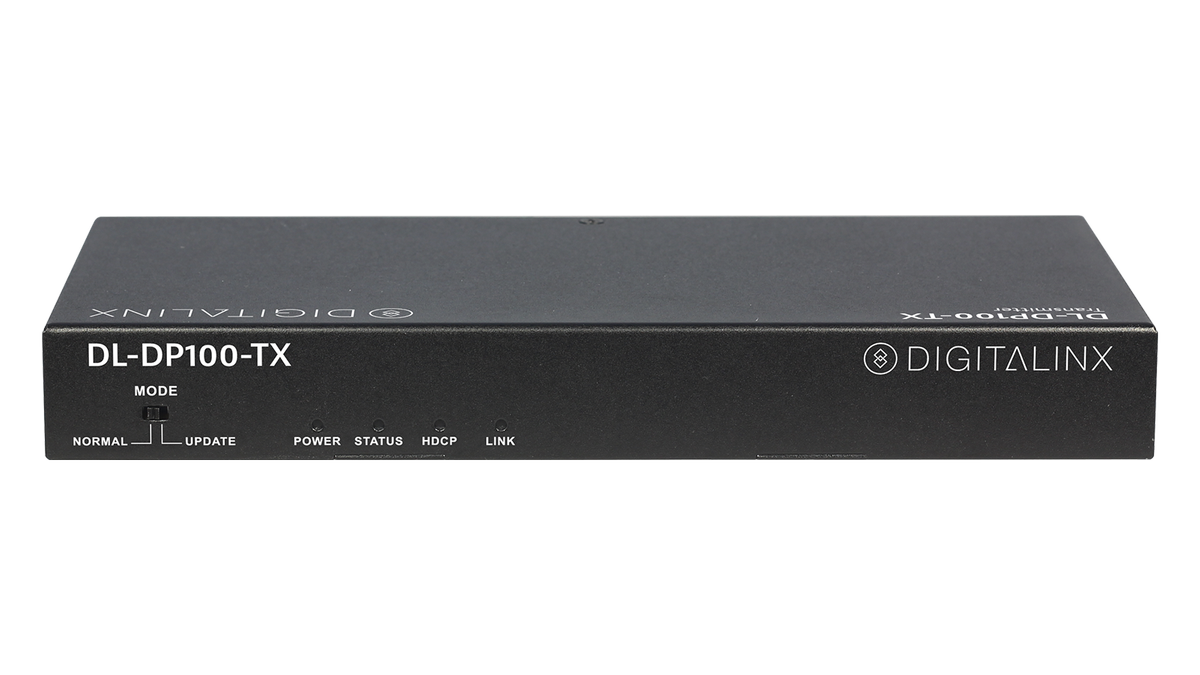

Liberty AV DL-DP100
HDBaseT DisplayPort, 4K/30, USB, RS-232, IR Extender Kit - 330'
- This Kit comes with both a Transmitter and Receiver
- Supported Video Resolutions: 1080p/60 & 4k x 2k @30Hz (4:2:0)
- Video Compliance: DisplayPort 1.2 and HDCP 1.4
- Bandwidth: 10.2 Gbps
-Patrick S.
Description

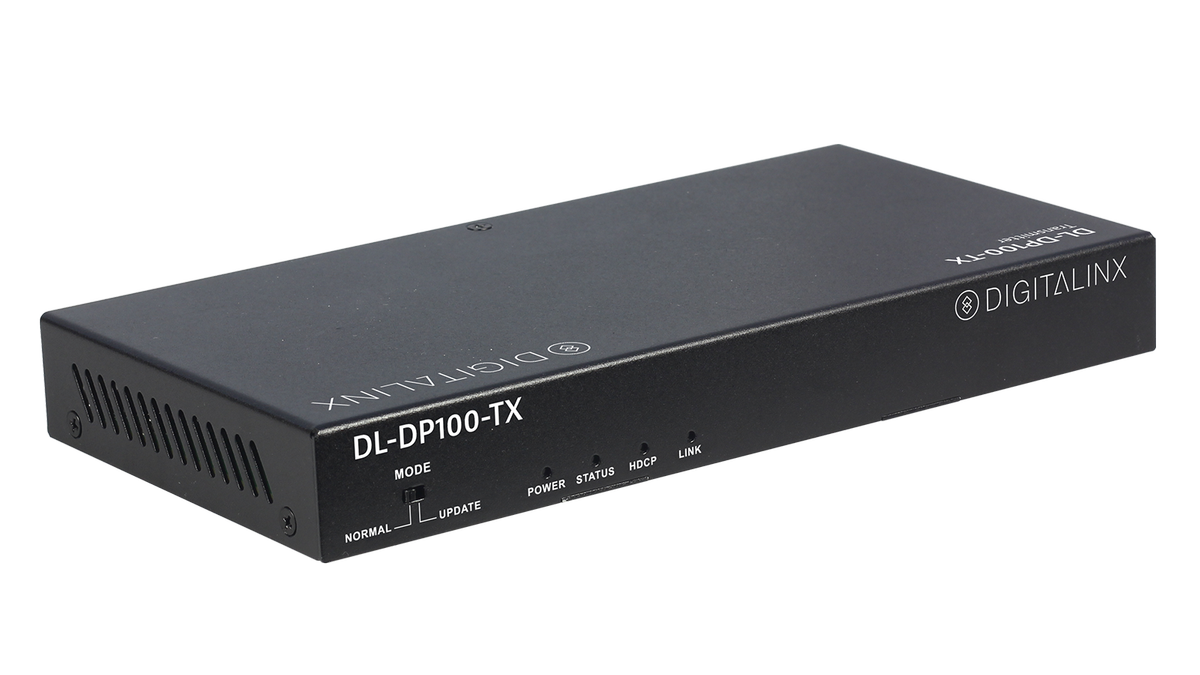

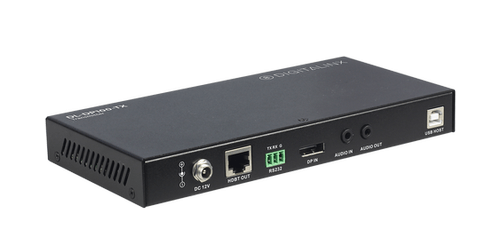

The Digital Linx DL-DP100 from Liberty AV is a HDBaseT DisplayPort Extender Kit that includes a Transmitter and Receiver and is designed to transmit DisplayPort (1080p & 4K/30 4:2:0) including HDCP 1.4, USB-HID, HD Audio, and RS-232 pass through signals up to 330' using a single Cat6 twisted pair cable. With built-in diagnostic LED's to ensure a hassle-free and robust installations. The DL-DP100 supports USB-HID pass-through providing a solution to allow users the flexibility to control or operate physically inaccessible PC, Server or a Workstation remotely. Designed with a 48V PoH (Power over HDBaseT) setup allows the units to be powered strictly at the Transmitter end, making only one power supply required. The 12 volt power supply is secured with a screw-on connector to prevent the power from accidentally being disconnected. This unit has the ability to transmission signal speed of 10.2 Gbps, and is controlled via bi-directional RS-232 and IR, or through USB connection. The DL-DP100 supports up to 8PCM 8-channel audio formats including Dolby Digital TrueHD, DTS-HD Master Audio and S/PDIF Audio formats of Stereo, LPCM 5.1, Dolby/DTS 5.1. Comes with power supply, 4 mounting ears, 2x 3-pole terminal block, and is backed by a 2 year warranty from Liberty AV.
Specifications
- Transmission Distances: CAT 5e/6: 3840x2160: Max 229' & 1080p: Max 330' / CAT6a/7: 3840x2160: Max 330', 1080p: Max 330' Transmitter Inputs: DisplayPort

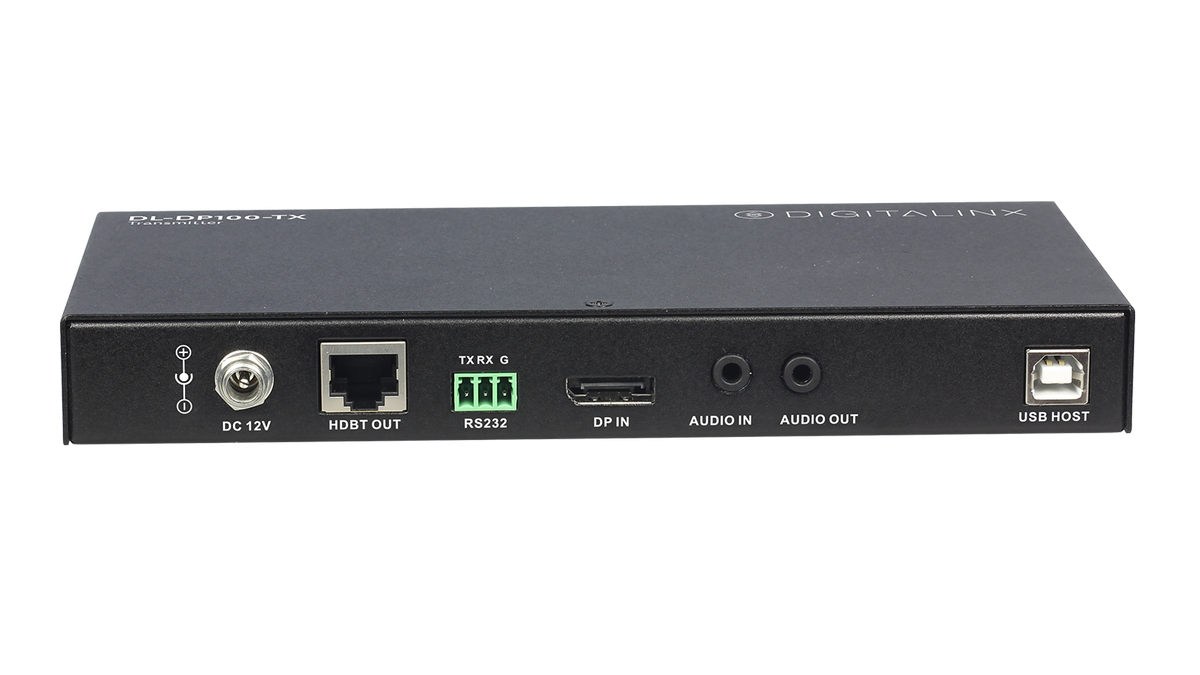

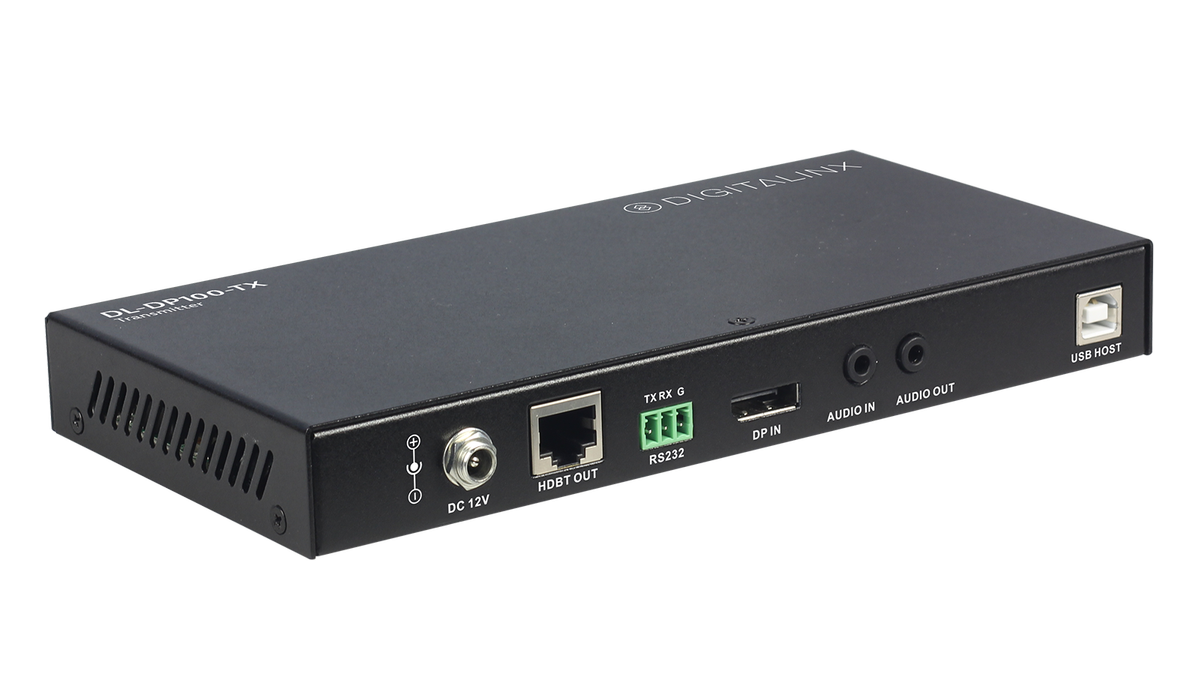

- Transmitter Outputs: HDBaseT

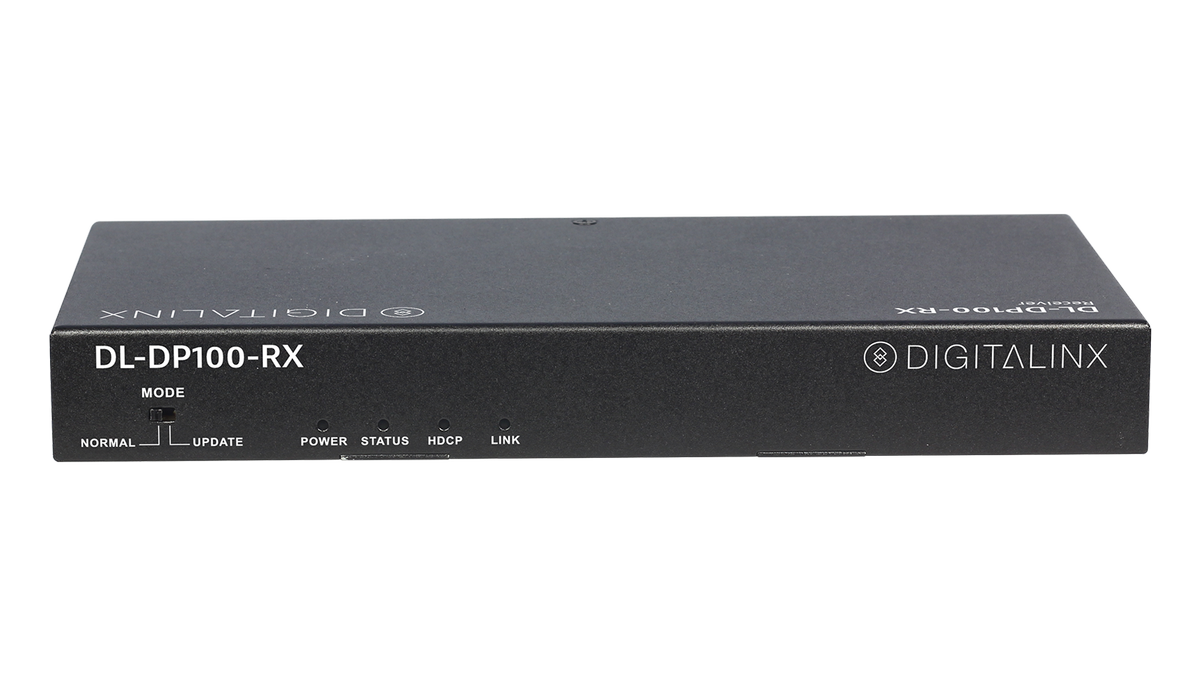

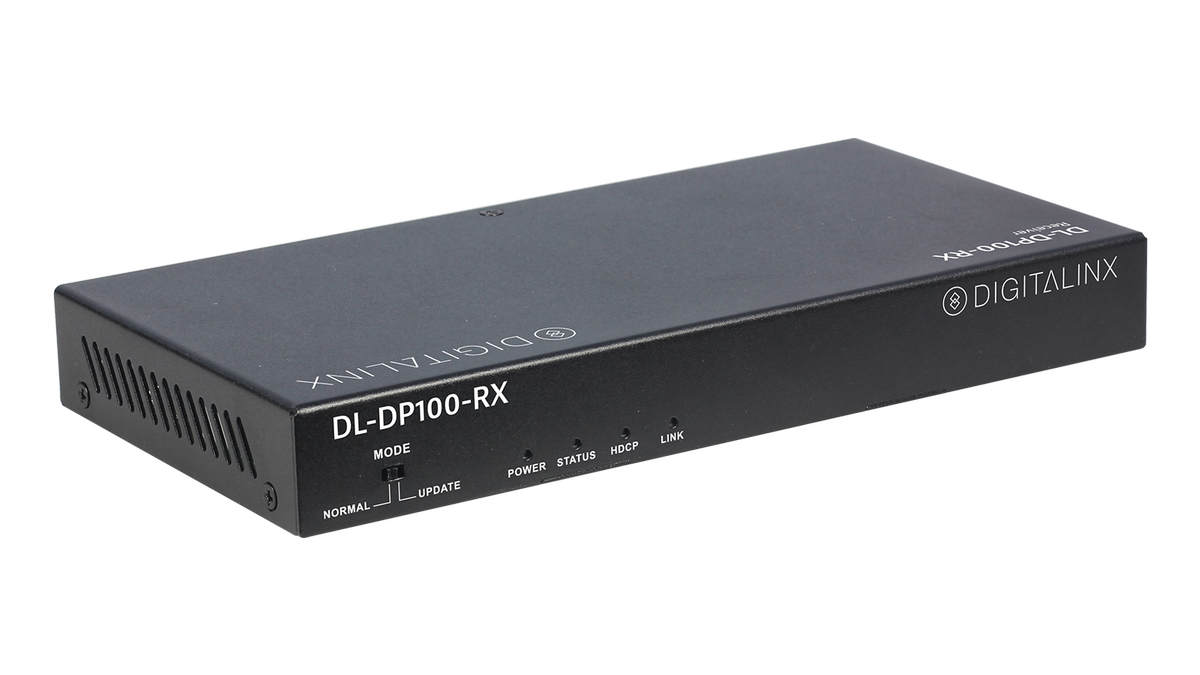

- Receiver Inputs: HDBaseT

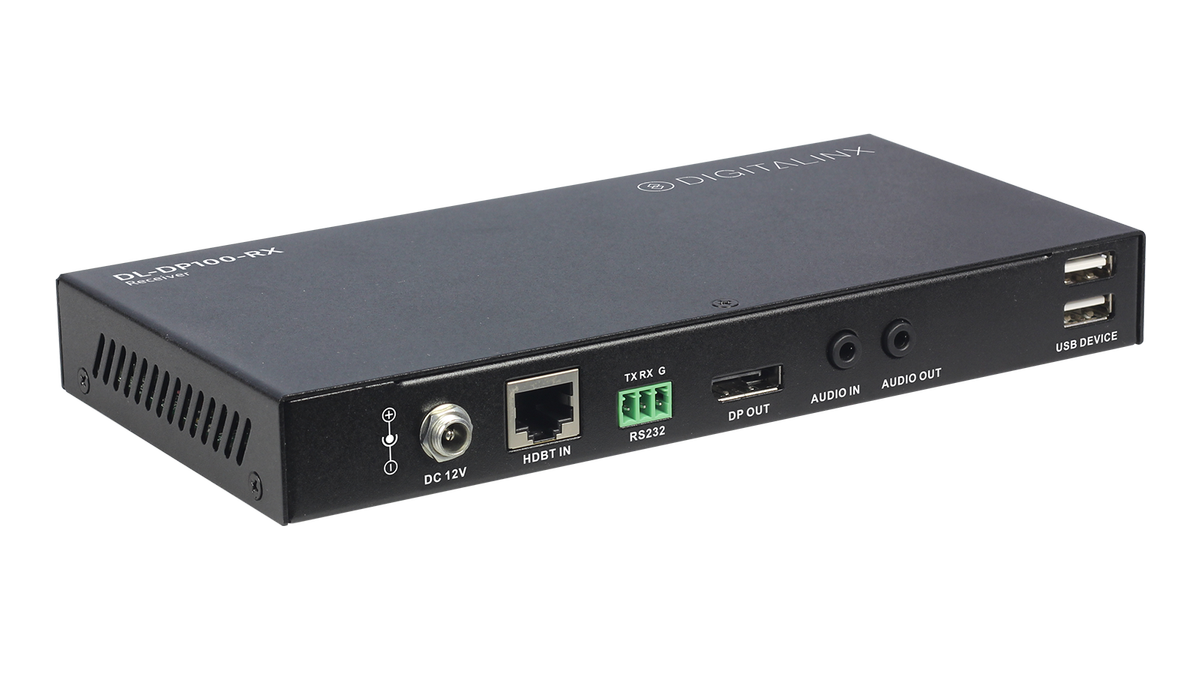

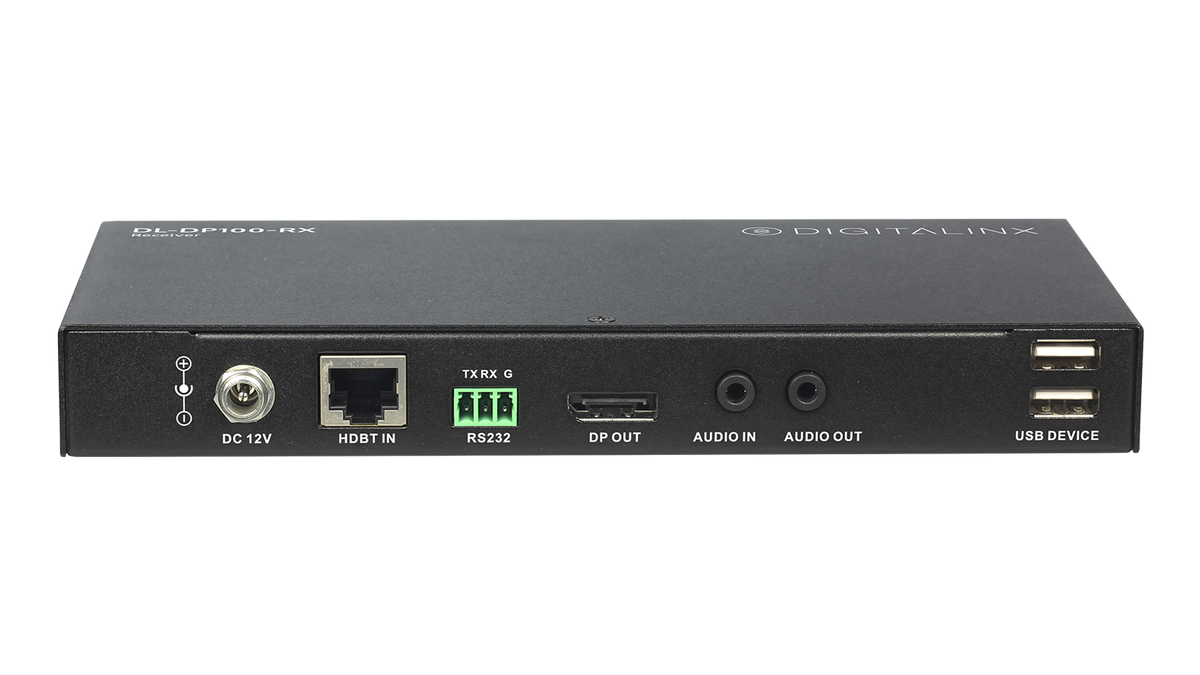

- Receiver Outputs: DisplayPort
- Ports Tx & Rx: Audio In/Out, RS-232, USB
- Audio Formats: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
- S/PDIF Audio: Stereo, LPCM 5.1, Dolby/ DTS 5.1
- RS-232 Baud Rate: Up to 115200 baud
- Control: RS-232, Ethernet, USB
- Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
- ESD Protection: Human-body Model: 8Kv (Air-gap discharge)/ 4Kv (Contact Discharge)
- Power Supply Input Voltage: 100-240V AC at 50-60 Hz
- Power Supply Output Voltage: 12V - 1.5A
- Regulatory: CE, FCC
- Included Accessories: Installation Guide, Power Supply, (4) Mounting Brackets, (2) 3-pole Terminal Block
- Warranty: 2 Years
