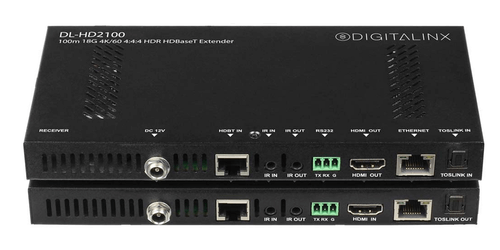

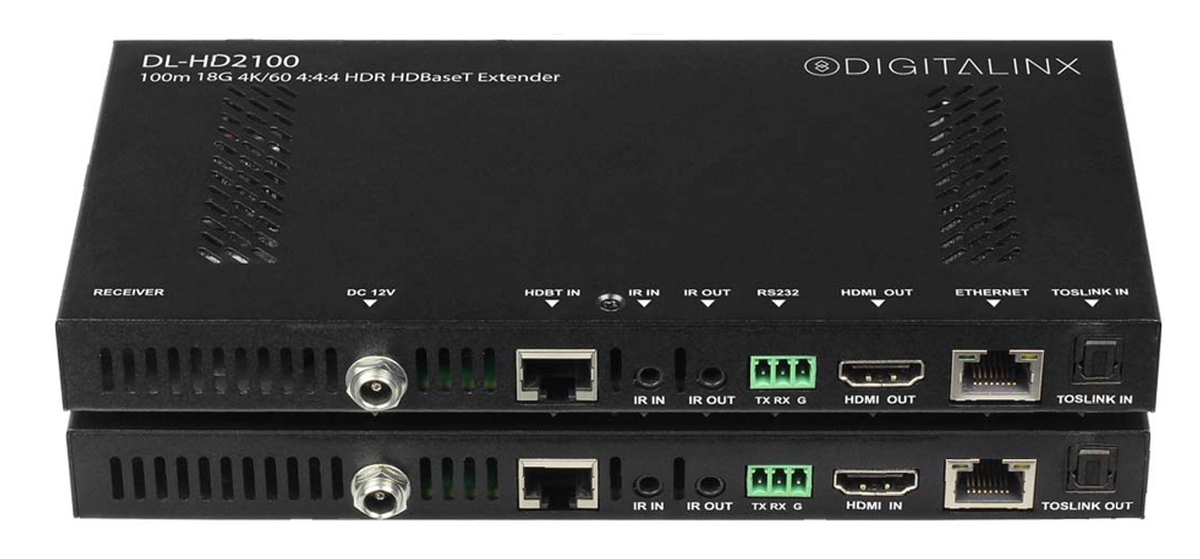

Liberty AV DL-HD2100
HDMI HDBaseT 18G 4K60 4:4:4 HDR-Capable Extender Set

Description

Summary

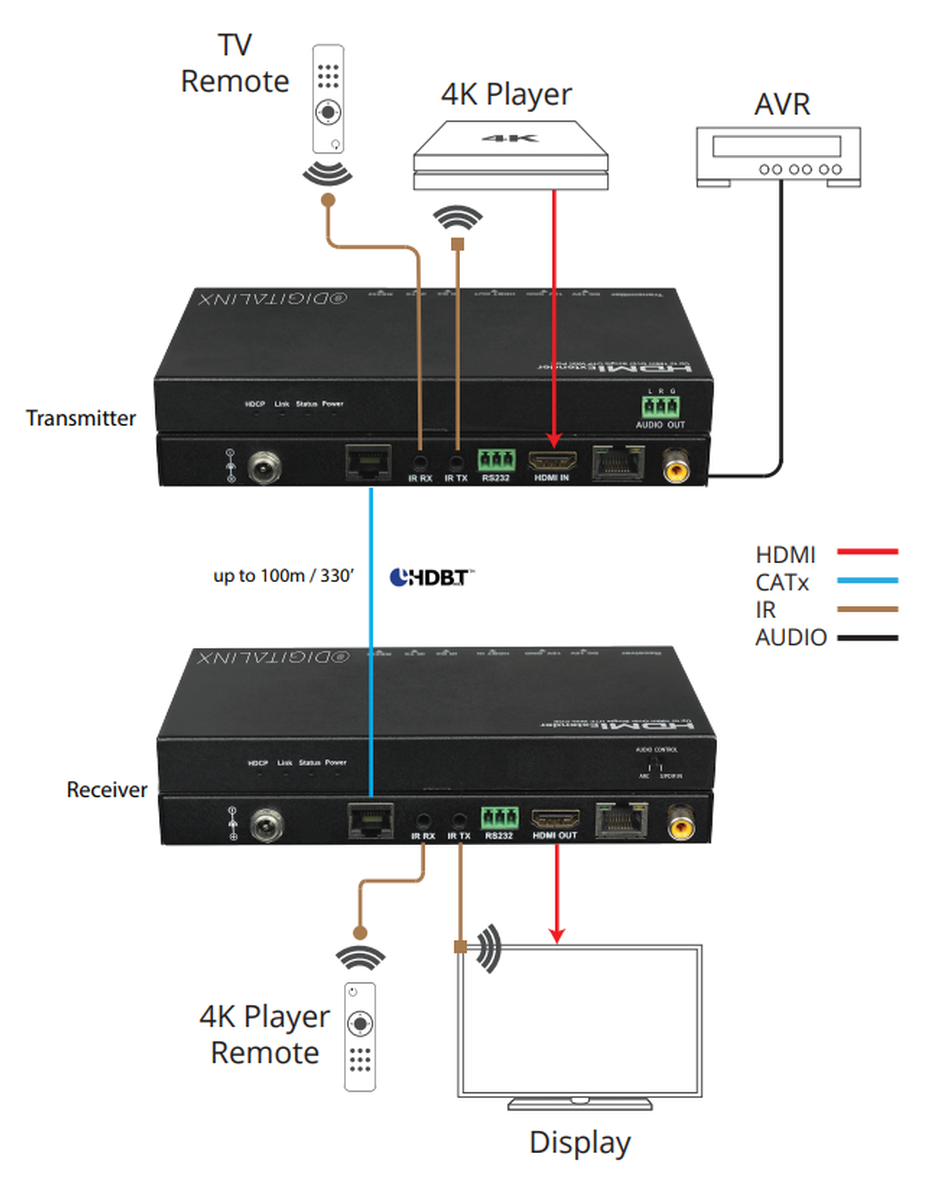

The DigitaLinx DL-HD2100 is an 18G HDMI 2.0 extender-over-category cable that transports 18Gbps data rates up to 328 feet. The system uses 2:1 data compression when the signal surpasses 10Gbps, anything under 10Gbps will never be compressed. In addition to extending high bandwidth HDMI signals, the extension system will extend IR, RS232, digital audio, Ethernet, and is ARC compatible. System supports flexible power so entire extender circuit can be powered by either the TX or RX side.

Features and Benefits

• 18G 4K60 4:4:4 HDR capable HDBaseT complete extender set
• Extend HDMI, IR, RS232, Ethernet, & ARC up to 100m
• Optical Toslink connection for ARC or Digital audio extension
• Analog Audio De-embeding
• Flexible PoE power can be applied at either end
• Includes Re-Clocking Circuitry for maximum device compatibility
• Threaded power supply included

Specifications

• Embedded Audio: Up to PCM 8 channel, Dolby Atmos, DTS: X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital and DTS
• IR Carrier Frequency Range: 33-55kHz at 5 volts
• RS232 Baud Rate: Up to 115200 baud
• HDBaseT Signal Characteristics
• Maximum Distance: 330 feet
• Cable Requirements: Solid core F/UTP Category 6 cable or greater with TIA/EIA-568B crimp pattern
• Bandwidth: 18 Gbps
• Chassis and Environmental
• Dimensions TX: 7.7 in. x 3.7 in. x 0.8 in.
• Dimension RX: 7.7 in. x 3.7 in. x 0.8 in.
• Operating Temperature (Environment): TX/RX +32 to +113 F
• Operating Temperature (Chassis): TX: 88 F / RX: 100 F
• Operating Humidity (Environment): 10% to 90%, Non-condensing
• Product Weight: 2.2 lbs
• Power
• Maximum Power Consumption: 27 watts (TX)- when receiver is powered by transmitter / 27 watts (RX) - when transmitter is powered by receiver
• Power Supply Input Voltage: 100-240V AC at 50-60 Hz
• Power Supply Output Voltage: DC 12V 3A
• ESD Protection: 8kV (air-gap discharge) / 4kV (contact discharge)
• Surge Protection Voltage: 1 kV
• Regulatory: CE, FCC
• Other
• Standard Warranty: 2 Years
• Included Items: (1) Transmitter / (1) Receiver / (1) Quick Install Guide / DC 12V Power Supply with US, UK, EU, and AU adapters / (2) IR Transmitters / (2) IR Receivers / (1) IR-AC IR coupler cable / (4) Mounting Brackets and Mounting Screws

Downloads

• Liberty AV DL-HD2100 Specifications (PDF)
• Liberty AV DL-HD2100 Manual (PDF)
