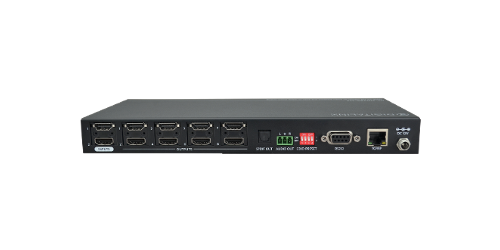

Liberty AV DL-HD28A-H2
2x8 HDMI Distribution Amp / Splitter
- HDMI 2.0 18G HDMI switching distribution amplifier
- 2 switchable HDMI inputs and 8 HDMI outputs

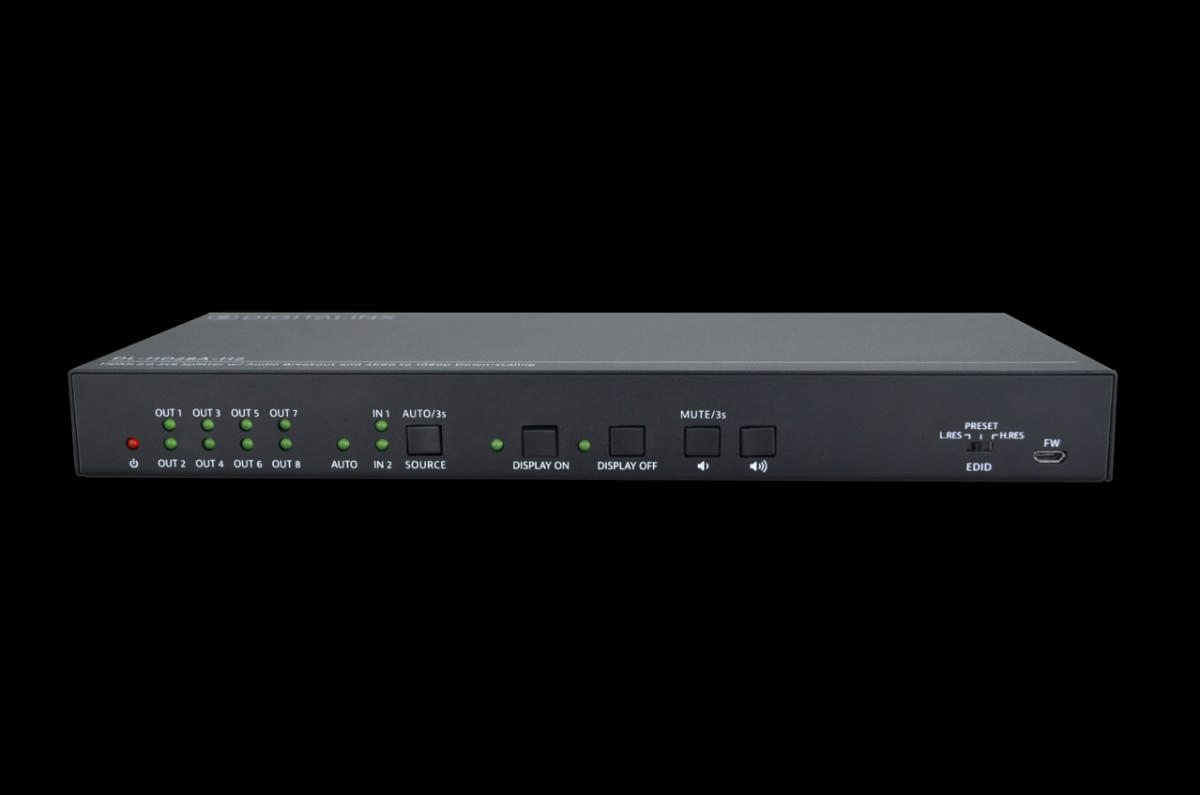

- Front panel button, RS232, or TCP/IP control for input selection
- Supports 4K60 8-bit 4:4:4 color & HDR
Description

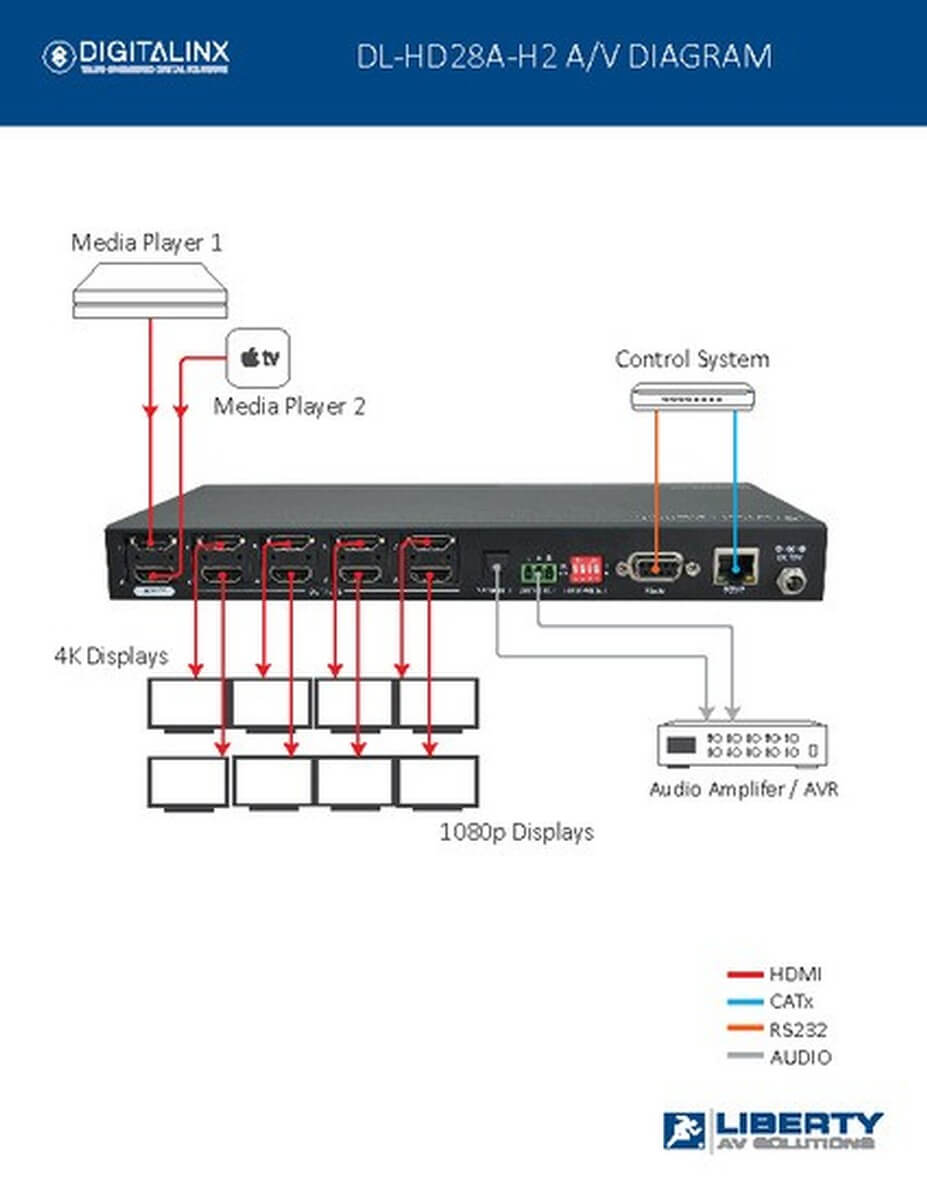

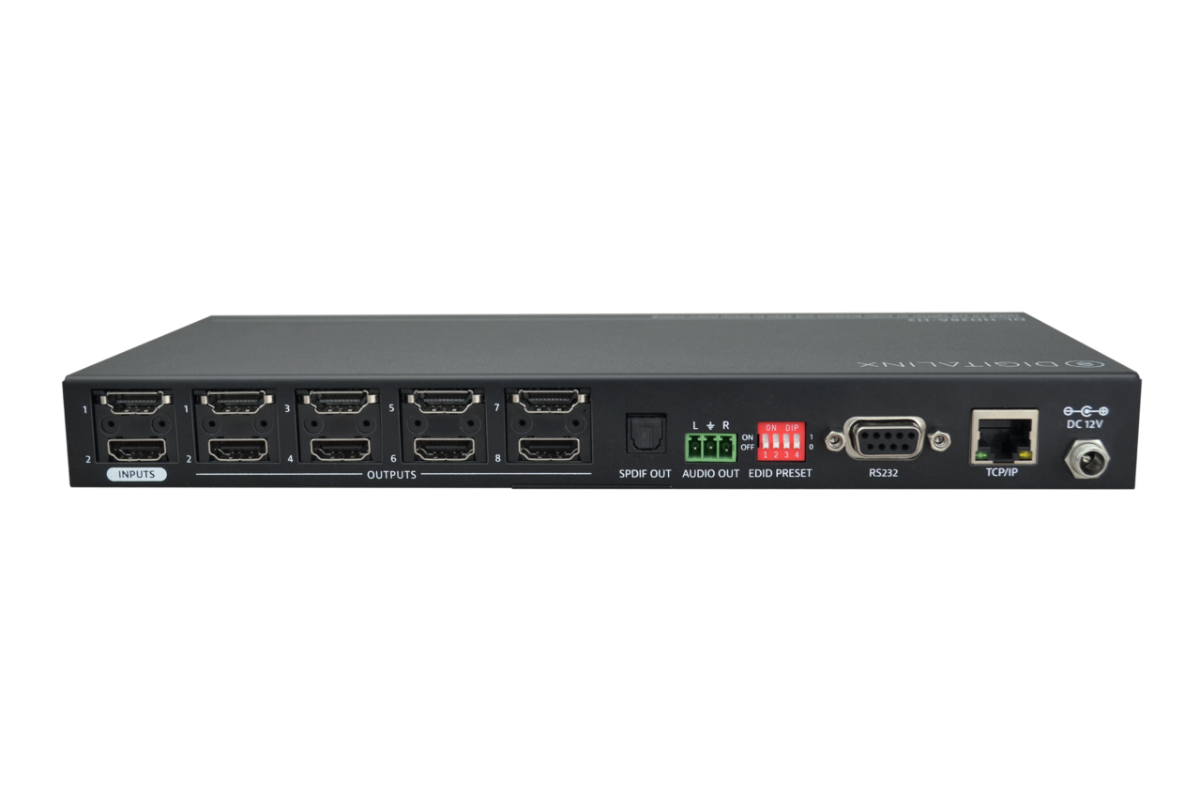

The Digitalinx DL-HD28A-H2 is an HDMI 2.0 compatible 2:8 auto scaling and auto switching HDMI distribution amp / splitter that features two HDMI inputs and eight HDMI outputs. The splitters HDMI outputs can switch as a group to either input via auto or manual switching methods and supports down scaling so a 4K video input can automatically be down scaled to an 1080p output when connecting a display that only supports resolutions up to 1080p. The DL-HD28A-H2 supports 4K signals up to 4K@60Hz / 4:4:4 / 8 bit color and features an easy EDID management option using dip switches on the rear panel of the unit. Analog and digital audio can be de-embedded from the selected HDMI input and the DL-HD24A-H2 supports CEC control and is HDCP 2.2 compliant. The DL-HD24A-H2 can be controlled via front panel buttons, RS232 or by TCP/IP control.
Specifications
- Analog and Digital audio de-embedding
- HDCP2.2 compliant
- Auto down scaling for maximum compatibility with mixed resolution displays
