Liberty AV DL-HDDM2
HDMI 2.0 Multichannel, 2-Channel Audio Down Mixer and De-Embedder

Description

Summary

Liberty AV present the Digitalinx DL-HDDM2, an HDMI 2.0b and HDCP 2.2-compatible multichannel audio down mixer and de-embedder. The DL-HDDM2 is for use in installations in which a digital or multichannel audio source is sent to an analog audio device that does not support multichannel audio.

The DL-HDDM2 features an HDMI 2.0b compatible with audio support for up to six channel audio. The HDMI output passes the native multichannel audio signal through the HDMI output while sending multichannel audio through the optical digital audio output. The DL-HDDM2 also provides a 2-channel stereo down-mixed version to the L/R analog RCA outputs. Featuring three audio selection modes,  you can choose the compatible audio format for the HDMI output as well as the Toslink and RCA audio outputs.

Features and Benefits

• HDMI 2.0b (18Gbps), HDCP 2.2- and DVI-compliant
• Supports HDR
• Passes native HDMI embedded audio
• Down mixes to 2 channel stereo (analog) and multi channel audio (optical) simultaneously
• Supports video resolutions up to 3840x2160@60Hz / 4:4:4
• HDMI embedded audio supports LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• Optical audio output supports LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• Analog audio output supports 2 Channel Stereo
• Supports CEC bypass

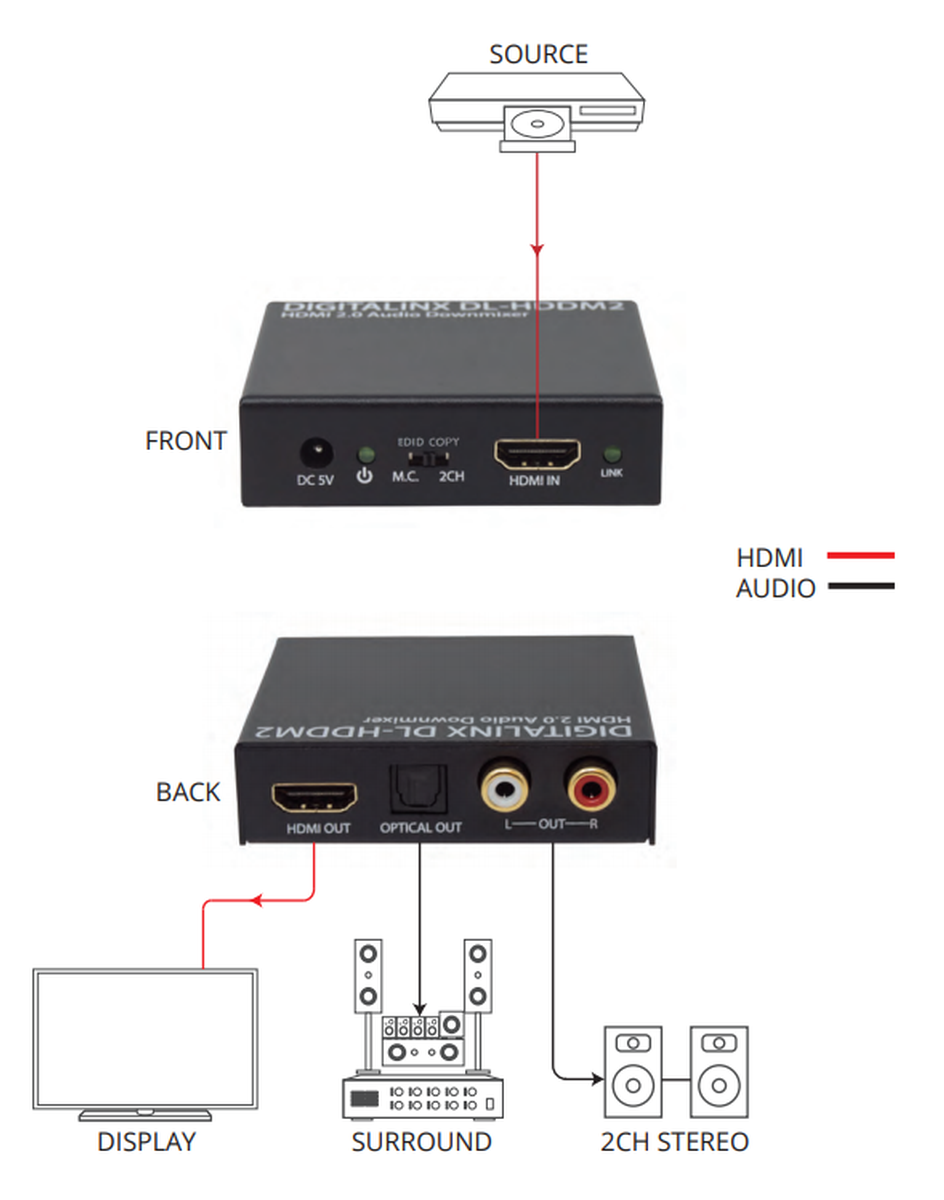

Applications

• Add HDMI audio source to analog audio distribution
• Route Audio to ancillary audio processing equipment
• Ease HDMI matrix and DA audio issues

Specifications

• Video Output: (1) HDMI
• Video Output Connector: (1) HDMI type A
• Output Video Signal: HDMI
• Input Resolutions Supported: Up to 3840 x 2160@60 (YUV4:4:4)
• Color Depth: 8bit, 10bit, 12bit
• Standards: Compliant with HDMI 2.0b & HDCP2.2
• Audio
• Supported HDMI Output Formats (pass through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTSHD, Master Audio, Dolby Atmos, DTS:X
• Supported Optical Output Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• Supported Analog Output Formats: Stereo 2CH
• Audio Output: Analog and Digital
• Audio Output Connector: (1) L/R RCA, (1) Digital Toslink
• Frequency Response: 20Hz~20K Hz
• Other
• System Bandwidth: 18Gbps
• Temperature: 0 -45 C / 32-104 F
• Humidity: 20% ~ 90%
• Power Supply: DC5V 1A
• Power Consumption: 1.25W (Max)
• Dimension (W*H*D): 3" x 2.4" x .8"
• Weight: 0.3 lbs
• Warranty: 2 years
• Certification: CE, FCC, RoHS
