Liberty AV DL-HDDM21
Digitalinx Multi Channel Dolby & DTS De-Embed / Down Mixer
- Dolby Digital &
- DTS 5.1 to 2 channel Down Mix for audio distribution
- Embedded Dolby Digital and DTS Decoder technology
- Pass native or down mix HDMI and de-embed SPDIF multi-channel or down mix to 2 channel at the same time
Description

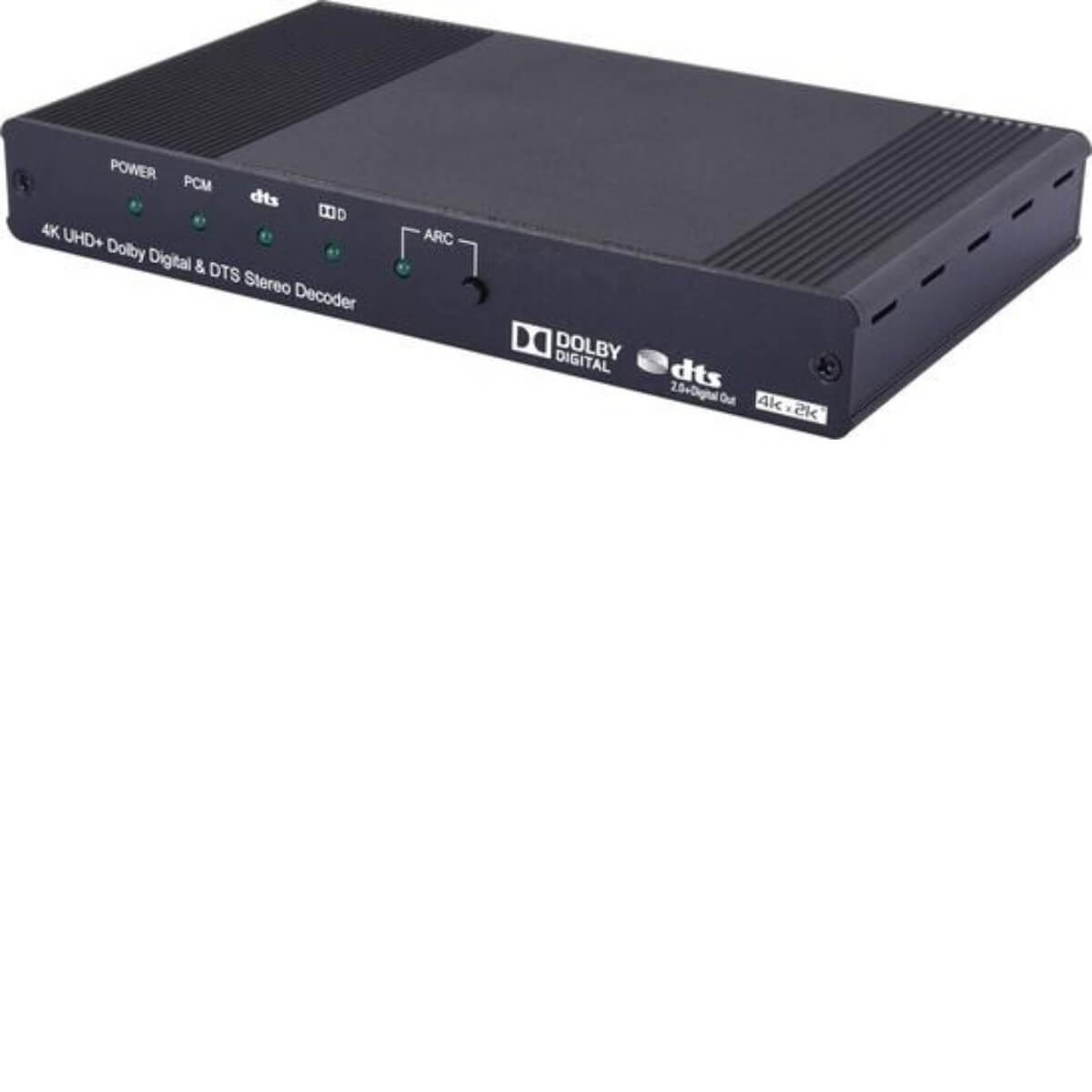

This Digitalinx DL-HDDM21 is an HDMI Dolby Digital & DTS Stereo Decoder that supports the transmission of high bandwidth (18Gbps) video and allows the associated audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance.
This unit can decode standard Dolby Digital & DTS formats up to 5.1 and output the audio as stereo (LPCM 2.0) over HDMI, S/PDIF (optical and coaxial) and analog RCA connections. If the connected display supports ARC (Audio Return Channel), and has it enabled, then the DL-HDDM21 can extract the ARC audio and route to all available audio outputs.
Both the input and output HDMI ports support 4K UHD resolutions up to 4K@60Hz (4:4:4, 8-bit). Built-in EDID management support allows the user to select from multiple EDIDs and, with the use of optional PC software, to upload, download, or edit EDID files.
