Liberty AV DL-HDR-H2
Digitalinx HDMI 2.0 Equalizer / Booster
- Extends resolutions up to 4k@60Hz / 4:4:4 / 8 bit color up to 20 meters / 66 feet
- Extends 1080p up to 50 meters / 165 feet
- Dual Power options, external or HDMI BUS power
-Gregory W.
Description

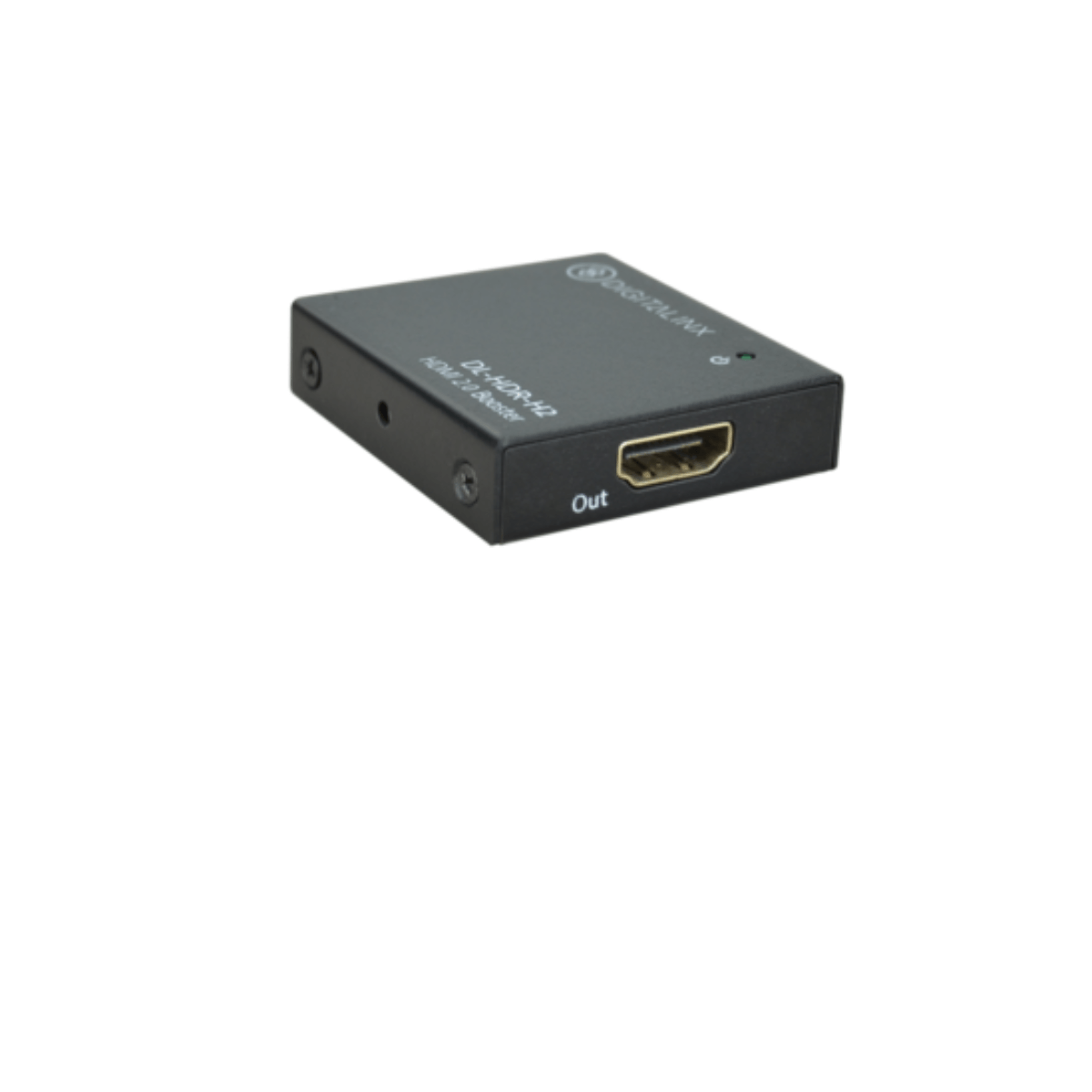

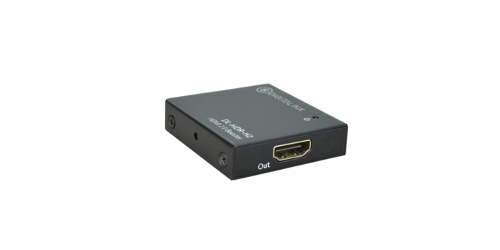

The DigitaLinx DL-HDR-H2 is an HDMI 2.0b booster / equalizer designed to extend HDMI signals up to 4k@60Hz / 4:4:4 / 8 bit color up to 20 meters / 66 feet. The DL-HDR-H2 supports HDMI 2.0b and HDCP 2.2 encryption.
The total transmission distance of a 4K@60Hz / 4:4:4 / 8 bit color signal (~17-18Gbps) is up to 20 meters / 66 feet, maximum distance from the HDMI output of the DL-HDR-H2 to TV display is 10 meters / 33 feet using a High Speed HDMI cable rated at 18Gbps
The total transmission distance of a 4K@30Hz / 4:4:4 / 8 bit color signal (~9Gbps) is up to 35 meters / 115 feet, maximum distance from the HDMI output of the DL-HDR-H2 to TV display is 15 meters / 50 feet using a High Speed HDMI cable rated at 10.2Gbps
The total transmission distance of a FullHD 1080p signal (~4.9Gbps) is up to 50 meters / 165 feet, maximum distance from the HDMI output of the DL-HDR-H2 to TV display is 30 meters / 100 feet using a Standard Speed HDMI cable rated at 4.9Gbps
