Liberty AV DL-PSMV62
Digitalinx 6 Input Multi-Format Presentation Switch w/HDBT & MultiView
- 6x1+1 (HDMI & Mirrored HDBT Outputs) 4K Presentation Switcher w/HDBT Out
- Inputs include HDMI, DP, & USB-C
- Supports multi view with 16 different pre-configured multi-view modes & custom mode for custom window sizing
- USB-C supports AV via ALT-DP and charging power for connected device
-Brandon K.
Description

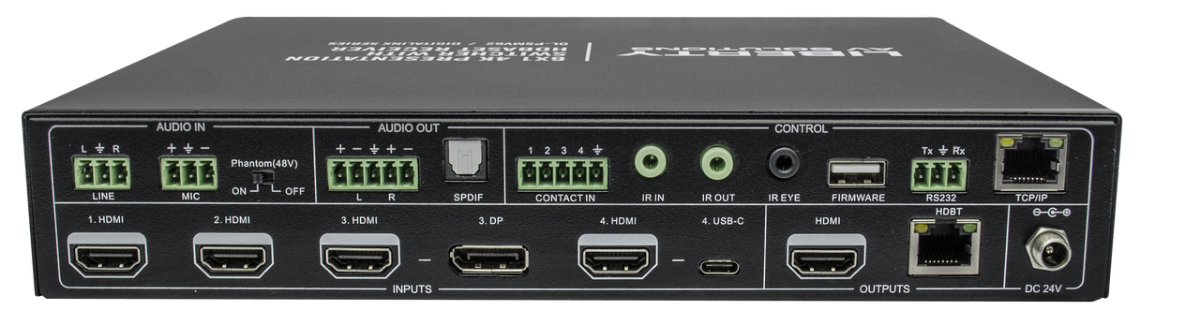

The DigitaLinx Series is a family of extension, routing, and switching products designed to allow digital signals to extend beyond their limitations. Liberty's latest addition, DL-PSMV62, is an HDMI 1.4 and HDCP 2.2 compliant presentation switcher that offers four HDMI, one display port and one USB-C input with power charging capability along with mirrored HDMI and HDBaseT outputs. The HDBaseT output supports PoC and can be paired with the Digitalinx DL-HD70-RX HDBaseT receiver to extend 4k@30Hz/1080P signal up to 40 meters (131ft) / 70 meters (230ft) all over a single CATx cable.

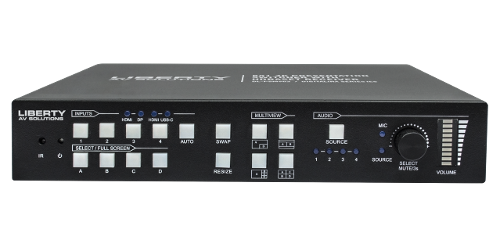

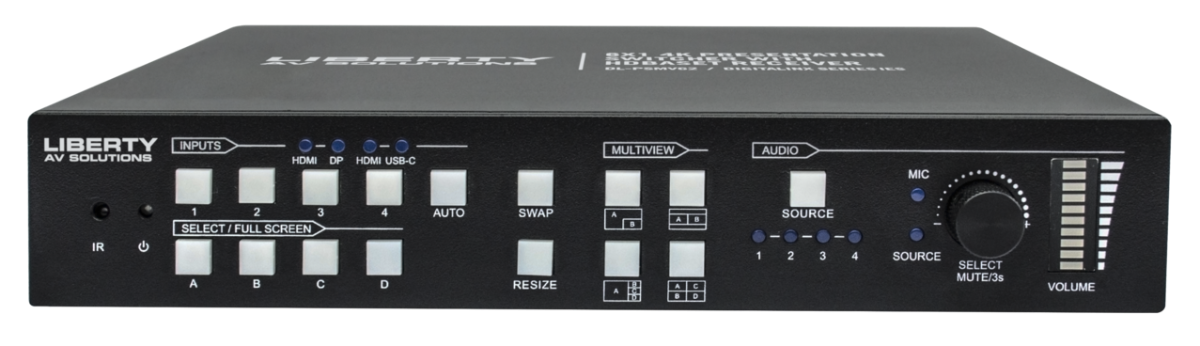

The switcher features external line audio input that can be embedded into any HDMI input, and provides microphone input for voice lift. The presentation switcher provides multi-view functionality and supports up to 20 layouts. The switcher features a wide range of control flexibility via TCP/IP, front panel buttons, built-in web GUI, IR remote, RS232 and CEC.
Specifications
- Integrated scaling up to 4K
- Seamless switching & auto switching
- Use as a 4x1+1 in auto switching or multi-view mode (Inputs 3 and 4 offer selectable input types) or 6x1+1 when used as a standard switcher & controlled via API
- HDCP 2.2 compliant
- HDBT output 40m for 4K and 70m for 1080p
- Supports audio embedding & de-embedding & mic mixing with 48v Phantom Power
- Control via TCP/IP, front panel, GUI, IR remote, RS232 and CEC
- Pair with optional HDBaseT Receiver part number DL-HD70RX
- TAA Compliant
