Liberty AV DL-SC31U-BX
"TeamUp+" Series Multi-Format Table Box VC Collaboration Switcher
- Conference, Huddle, Training room 3x1 table box presentation switcher
- Complete Plug and Play, NO additional driver or software required to be recognized by the computer
- 2 HDMI &
- 1 USB-C inputs (HDMI 2 on bottom of box) &
Description

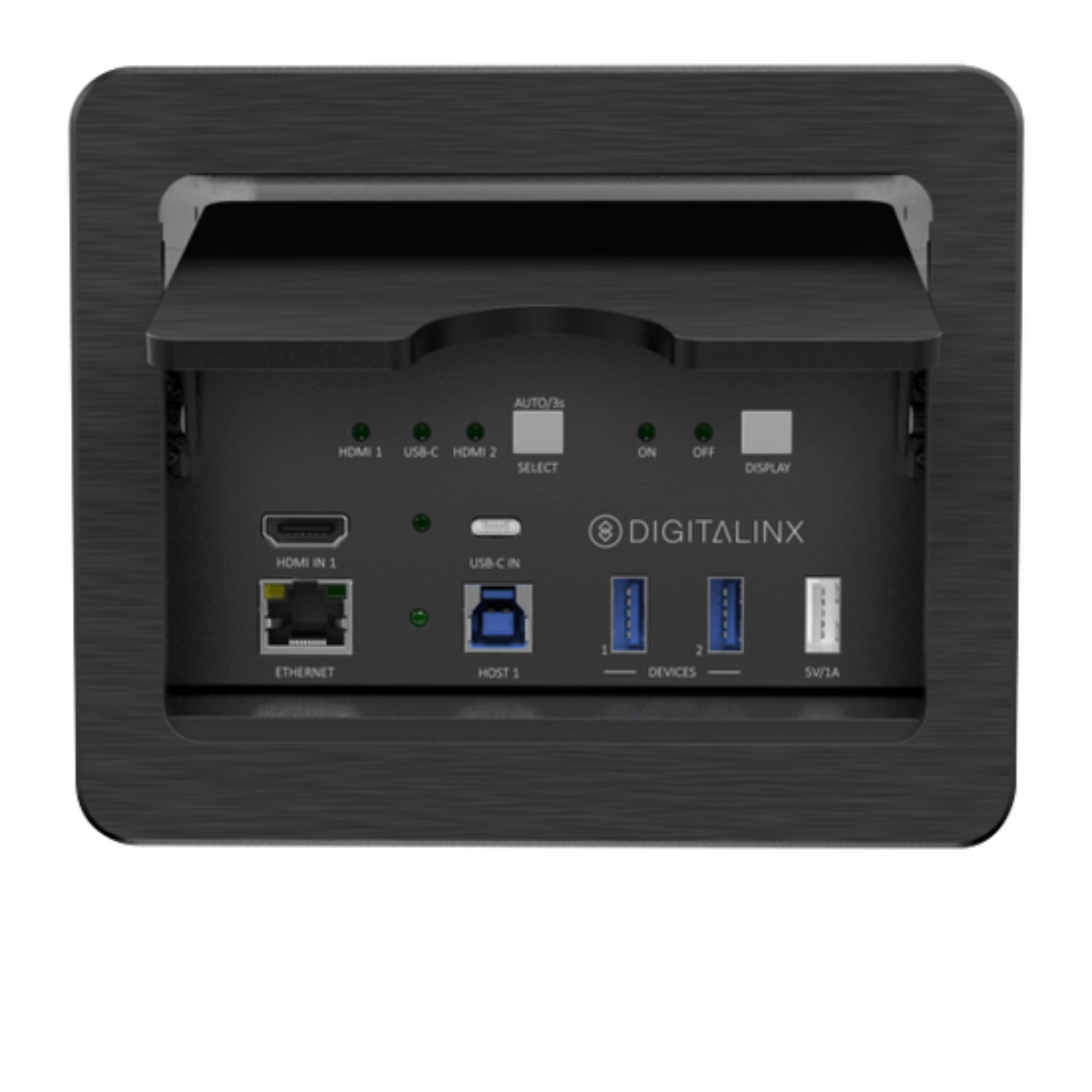

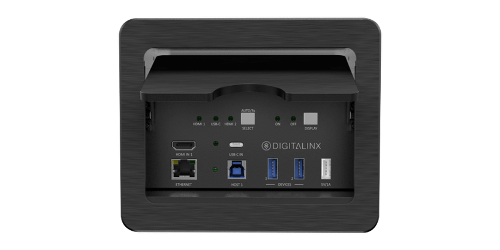

The DigitaLinx DL-SC31U-BX is a 3x1 multi format A/V and USB conference auto switcher and table pocket that supports video resolutions up to 4K@60Hz 4:4:4 8bit deep color and has a built in 4 port USB 3.x hub for integration of USB devices such as USB cameras and microphones that can switched between three USB (PC) hosts. The switcher features three video inputs; (2) HDMI and (1) USB-C. The USB-C input supports video, data (USB host) and power charging up to 40w. The 4 port USB device hub (2 top and 2 bottom) can switch between the USB (PC) hosts automatically or can be assigned to follow a video input in auto switching mode so when the video input is triggered the corresponding USB host will switch as well.
The DL-SC31U-BX gives you the ability to automate the display power ON by using pre-loaded RS232 commands whenever a video signal is introduced to the system using any A/V input or by pressing the DISPLAY control button on the front panel. It will also turn the display power OFF after a specified amount of time has passed when no video signal or switching activity is present.
The DL-SC31U-BX can be controlled by API commands using RS232 or Ethernet. A web server / GUI is built in that features A/V and USB switching control, automatic display control and input EDID management. The DL-SC31U-BX is ideal for software based video teleconference rooms that require the consolidation and sync of A/V and USB signals from a laptop or room PC.Specifications
- Ethernet pass-through
