Liberty AV DL-SE3H1V-C
4x1 Tx/Rx HDBaseT Auto Switcher: Simple Auto Control - 230'

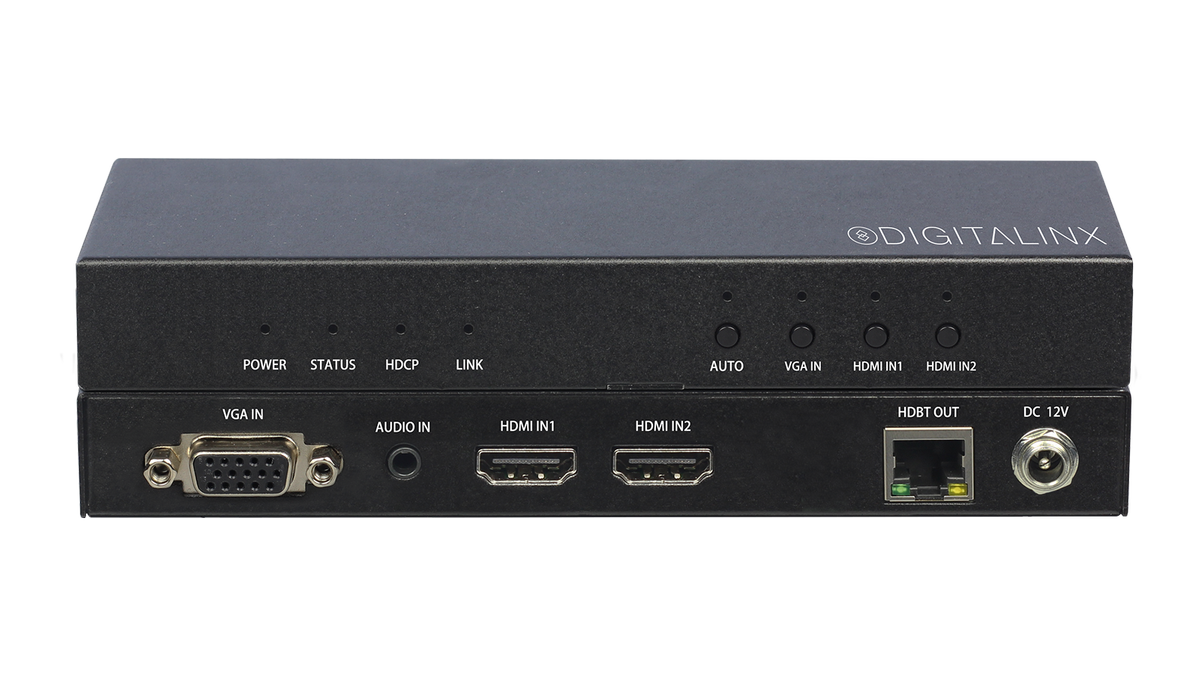

- Tx Inputs: 2x HDMI, 1x VGA w/audio

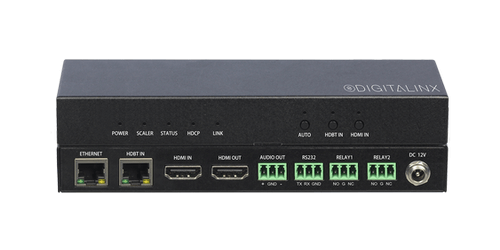

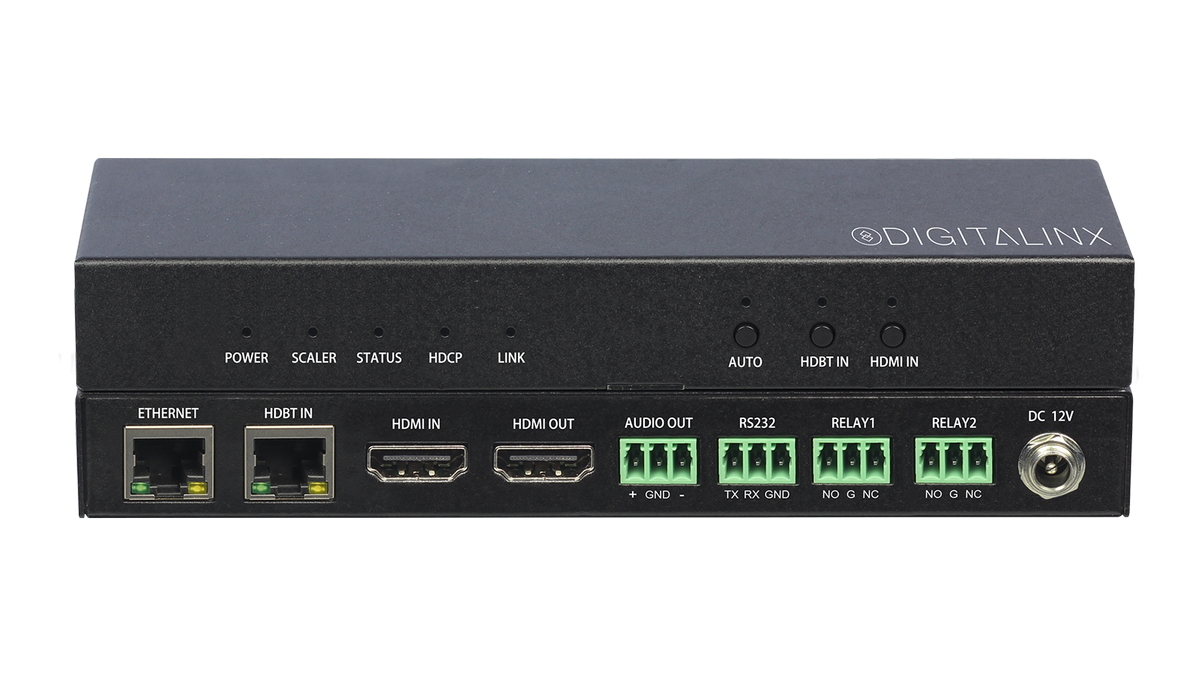

- Rx Inputs: 1x HDMI
- Rx HDMI input offers connectivity for remote devices such as wireless BYOD gateways
- Signal Extension up to 230'
-Patrick S.
Description

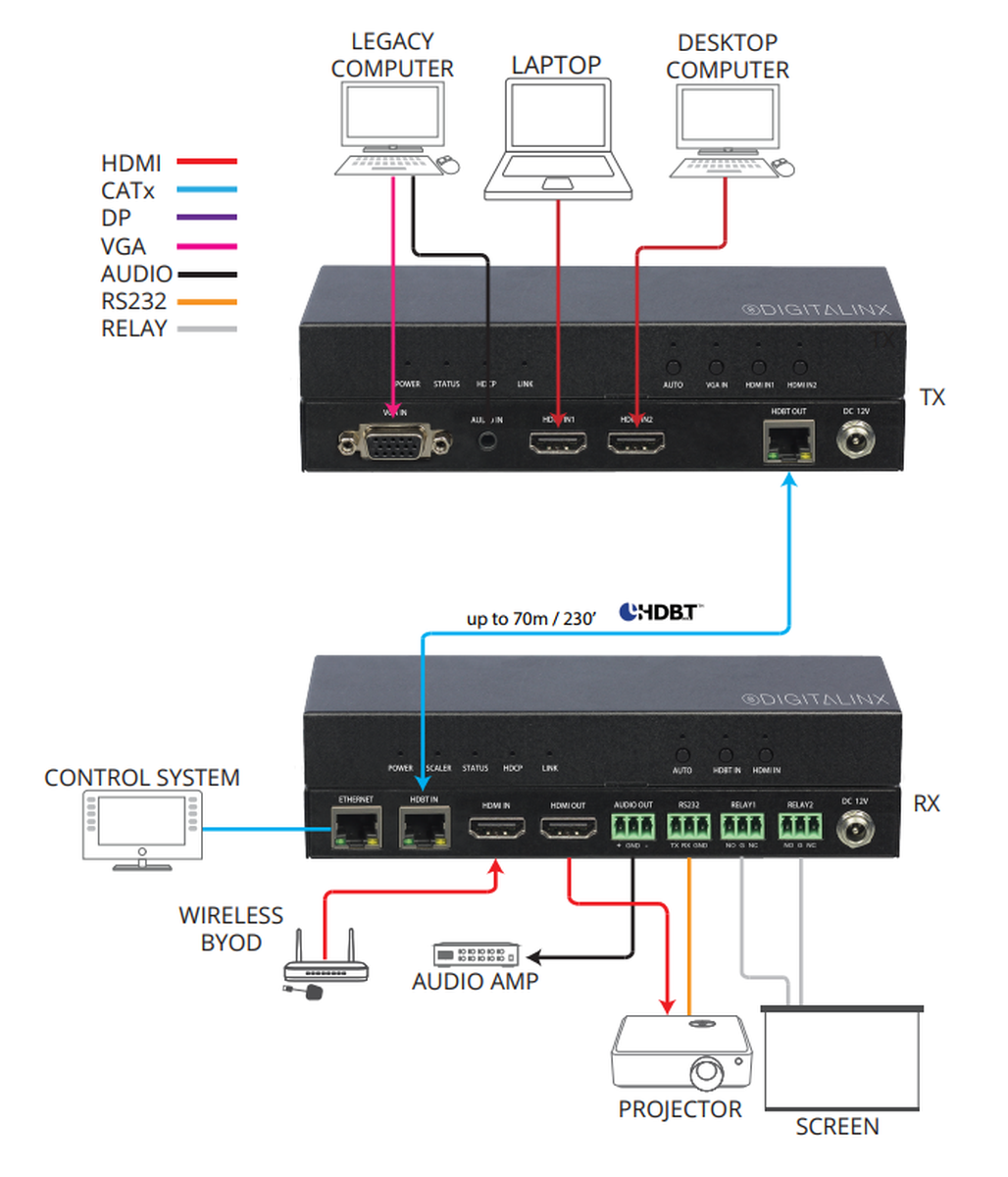

Introducing the Digitalinx DL-SE3H1V-C 4x1 Two Piece HDBaseT Auto Switcher from Liberty AV with Simple Automated Control Capability. The transmitter unit has 2x HDMI and 1x VGA with 3.5 audio, while the receiver unit has 1x HDMI input for integration on wireless BYOD products. These devices create a HDBaseT extension system that support long distance transmission of HDMI up to 230' over Cat6 cable (not included).
Additionally, they support RS-232 control as well as TCP/IP control and has an Ethernet pass through port. The RS-232 can automatically turn the display on and off and once video signal is introduced to the system, it can activate relays. The receiver also features a line audio output and two relays to activate room peripherals like window shades or projector screens. Ideal applications for this auto switcher include settings such as conference spaces, huddle rooms, or any setting where the user(s) need screen sharing or local collaboration. This product comes backed from Liberty AV with a two year warranty.
Specifications
- HDBaseT w/PoE Extension
- Ethernet Extension
- Integrated Controller with 1x RS232, 2x relays, and CEC Control
- Audio de-embedding
- Auto Switching or Manual Control
- Simple automation control triggers commands when signal is presented or removed
- Warranty: 2 years
