Liberty AV DL-SE3H1V-C-BSTK
Digitalinx 4x1 Multi-Format Conference Room Collaboration Switcher/Extension Set
-Brandon K.
Description

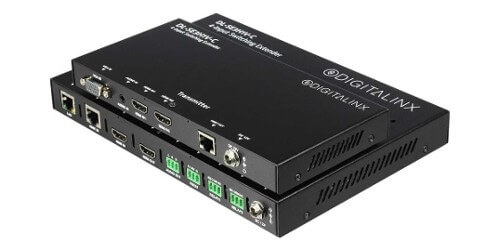

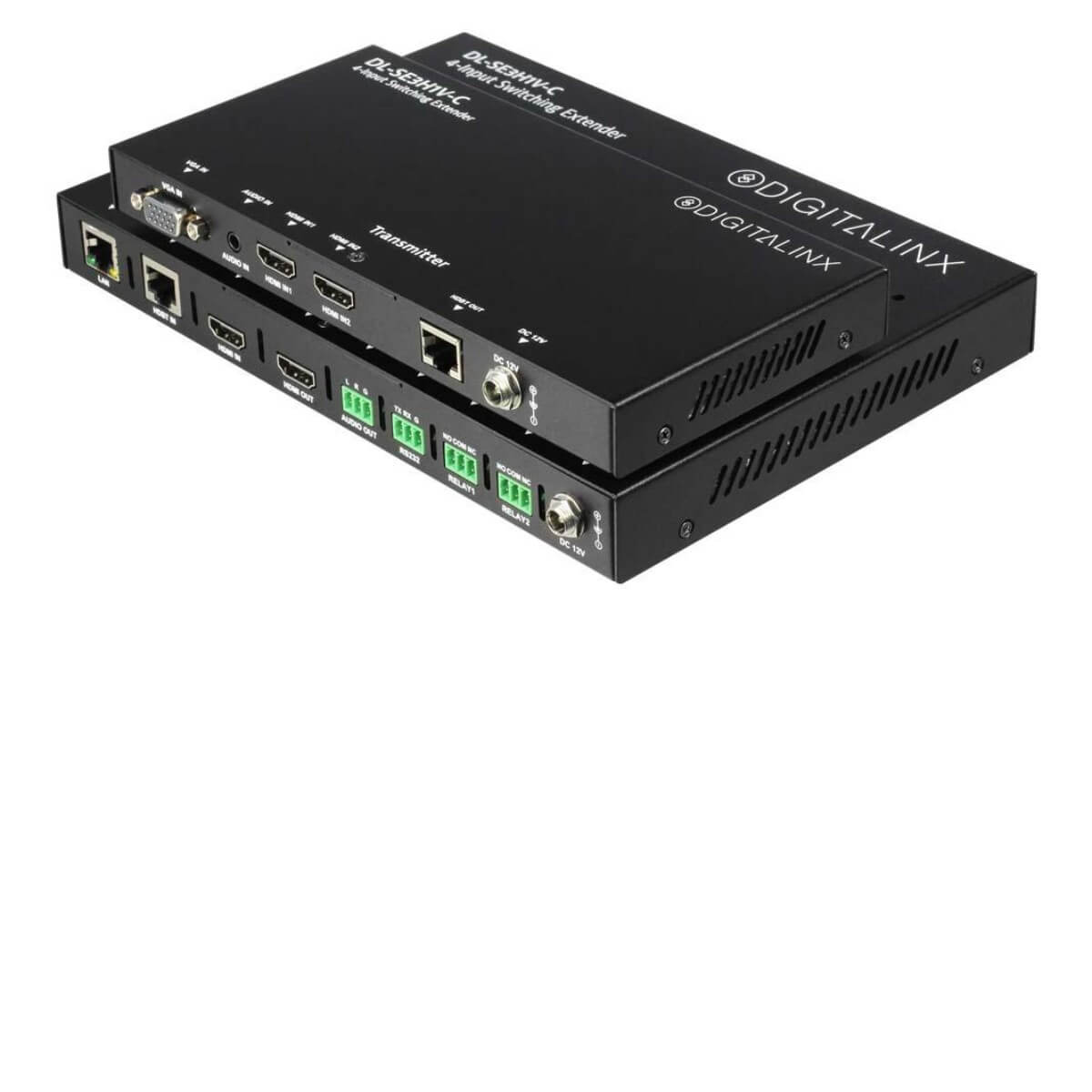

The DigitaLinx DL-SE3H1V-C is a 4K compatible, 4 input multi format A/V auto switcher, extender and video scaler system that supports long distance transport of HDMI between transmitter and receiver up to 70 meters / 230' using Cat6 cabling. System supports PoE , receiver powers transmitter.
The DL-SE3H1V-C features a total of 3 video inputs on the transmitter; (2) HDMI, (1) VGA with 3.5 Audio and (1) HDMI input located on the receiver for integration of a local HDMI input such as a wireless BYOD / screen share product. The receiver also features a stereo analog audio output to connect to an audio amplifier for audio reinforcement, an RS232 serial control port for display control / connectivity and two relay ports for projection screen or window shade control / connectivity.
The DL-SE3H1V-C can be controlled via push button control on the transmitter and receiver or by issuing telnet and serial commands when integrated with a 3rd party control system. The system can be programmed to automate RS232, CEC and relay control when a new video signal is introduced to the system thus creating a stand alone, plug and play A/V automation system that consolidates control of a connected display and room peripherals such as a projector screen or window shade.
