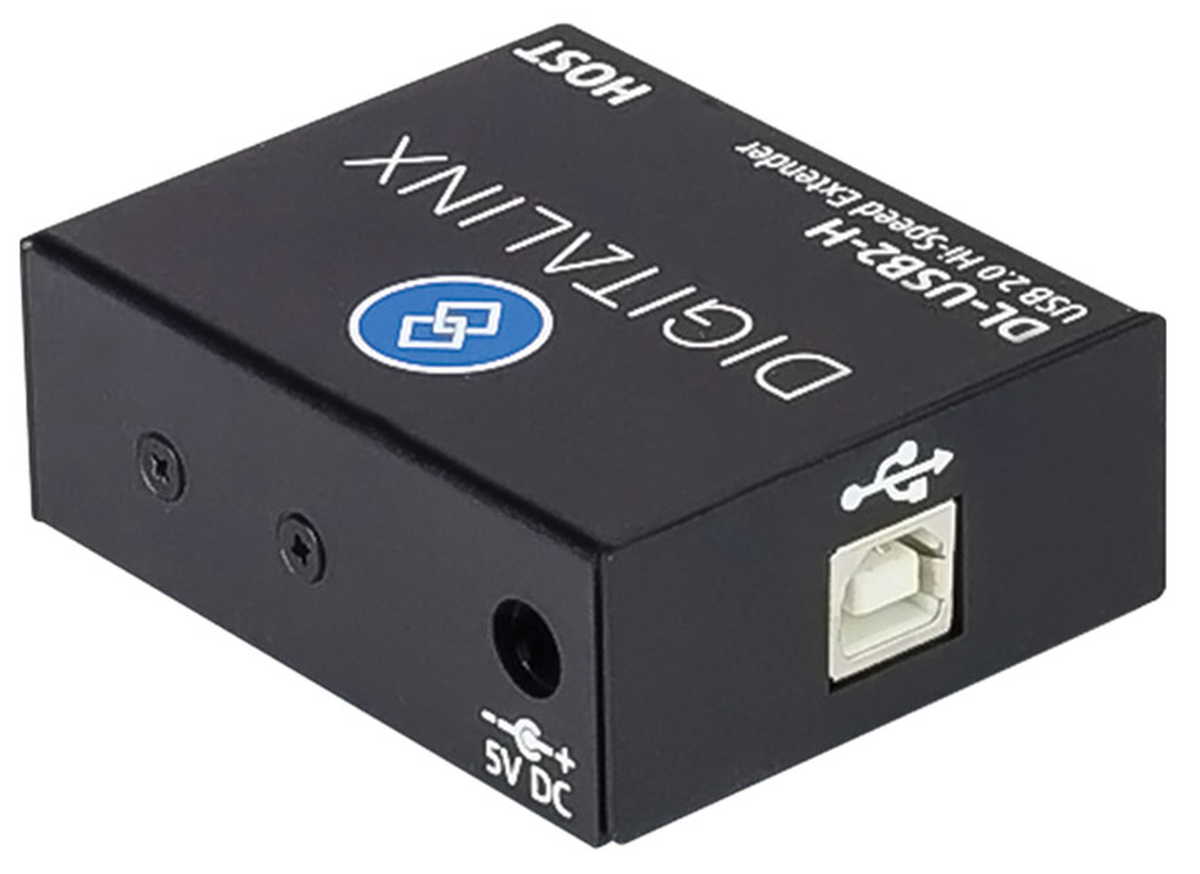

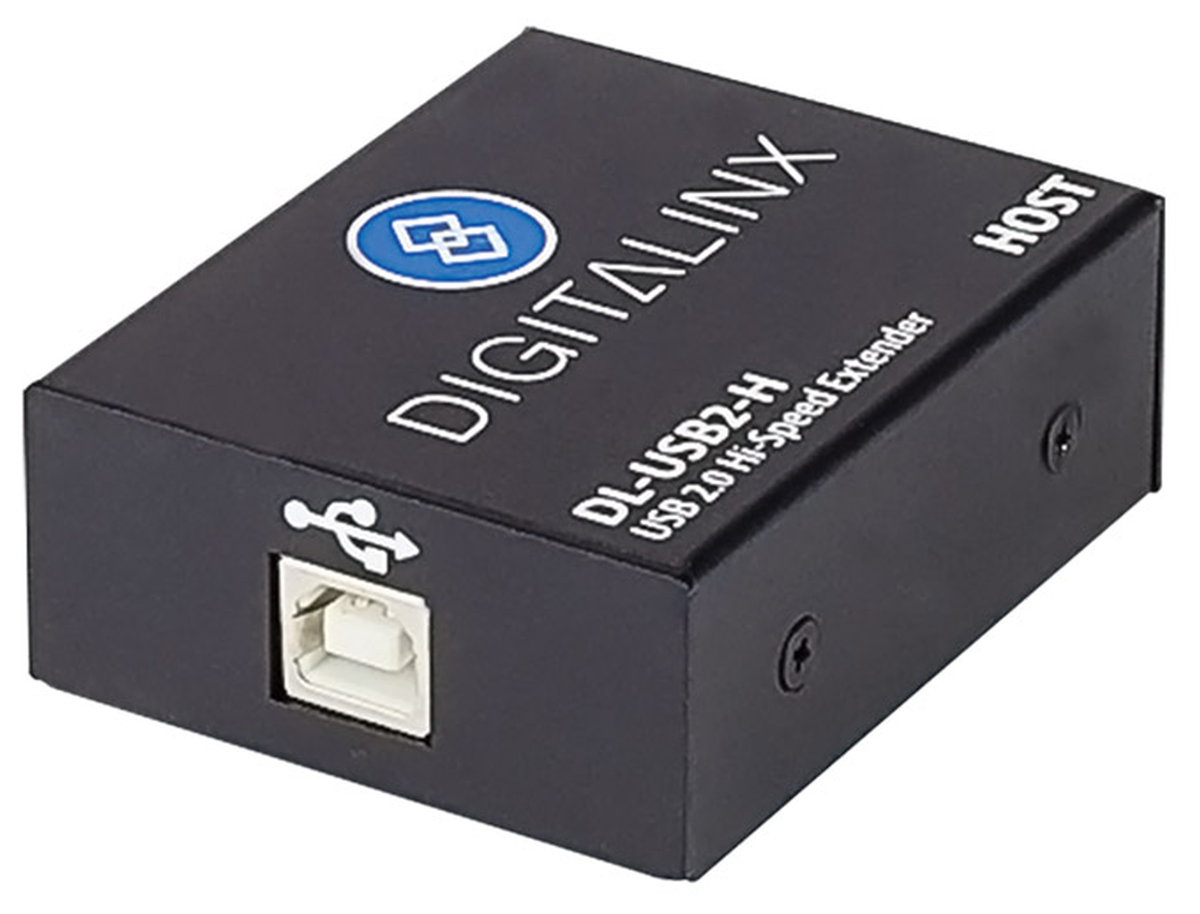

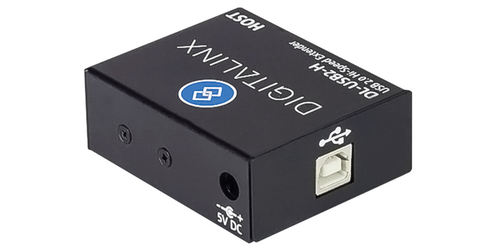

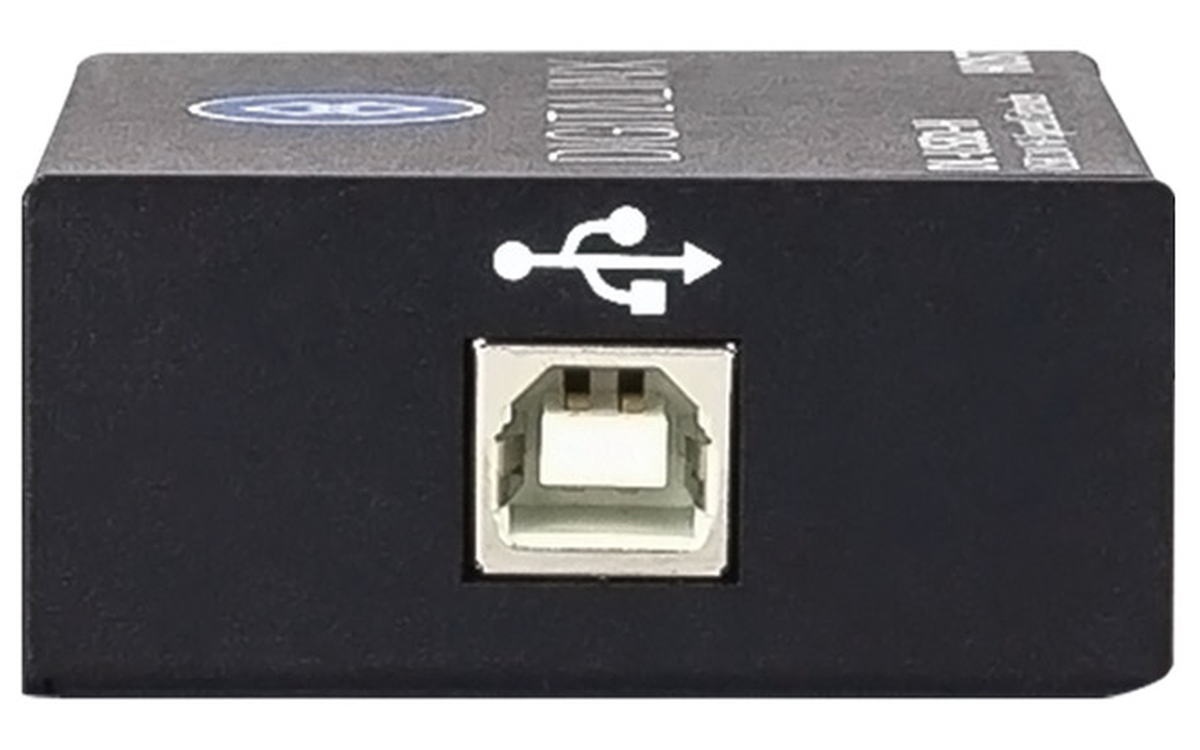

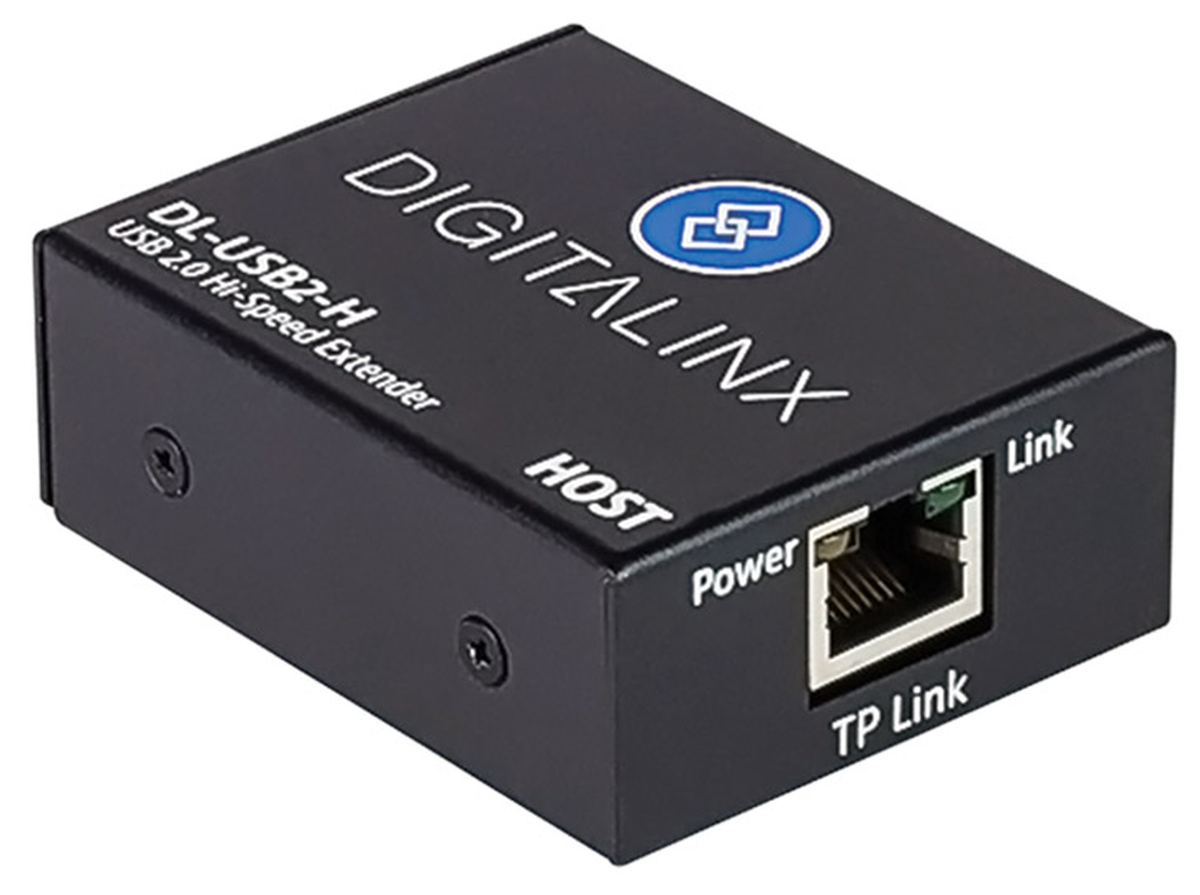

Liberty AV DL-USB2-H
USB2.0 High-Speed Twisted Pair Extender Host

Description

Liberty AV's DL-USB2-H is a USB host transmitter that extends USB at high speed up to 330 feet. This device is powered via client-side extender, and it supplies up to 500mA to USB devices. This device is designed for USB2.0, but it can also extend USB1.1 signals. This wall plate extender is a great choice when high-bandwidth USB devices need signal extension or when USB signals need plenum routing.

Note that the DL-USB2-H does not support Webcams that require Isochronous data.

This extender host is designed to work alongside a modular USB client receiver, a wall plate USB host transmitter, and wall plate USB receiver.

Specifications

• 2.1 mm ID)
• Supported Signals
• USB 2.0: Low Speed (1.5 Mbps), Full Speed (12 Mbps), and Hi-Speed (480 Mbps)
• USB 1.1: Low Speed (1.5 Mbps) and Full Speed (12 Mbps)
• Extender Characteristics
• Maximum Distance: 100 m (328 ft)
• Cable Requirements: Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern
• Chassis and Environmental
• Enclosure: Painted Aluminum
• Dimensions: 2.05 in x 2.52 in x 0.94 in
• Shipping Weight: 0.3 kg (0.66 lbs)
• Operating Temperature: 0 to +40 C (+32 to +104 F)
• Operating Humidity: 20% to 90%, Non-condensing
• Storage Temperature: -10 to +60 C (+14 to +140 F)
• Storage Humidity: 20% to 90%, Non-condensing
• Power, ESD, and Regulatory
• Power to USB Devices: 500mA
• Maximum Power Consumption: 4.3 watts
• Power Supply Input: 100V-240VAC / 50-60 Hz
• Power Supply Output: 5VDC / 2A
• ESD Protection: 8kV (air-gap discharge), 4KV (contact discharge)
• Extender Regulatory: FCC, CE, RoHS
• Power Supply Regulatory: UL, CUL, CE, PSE, GS, RoHS
• Other
• Warranty: 2 years

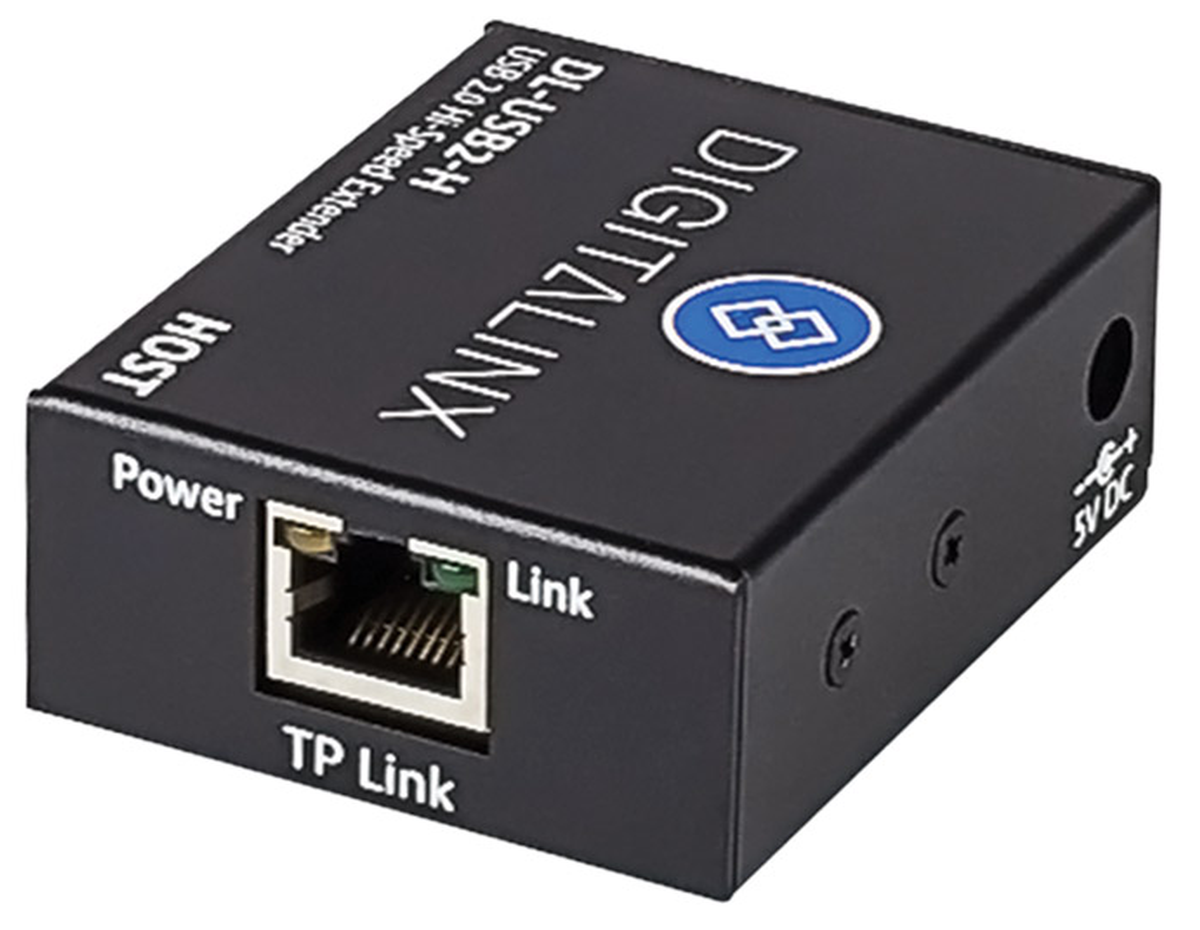

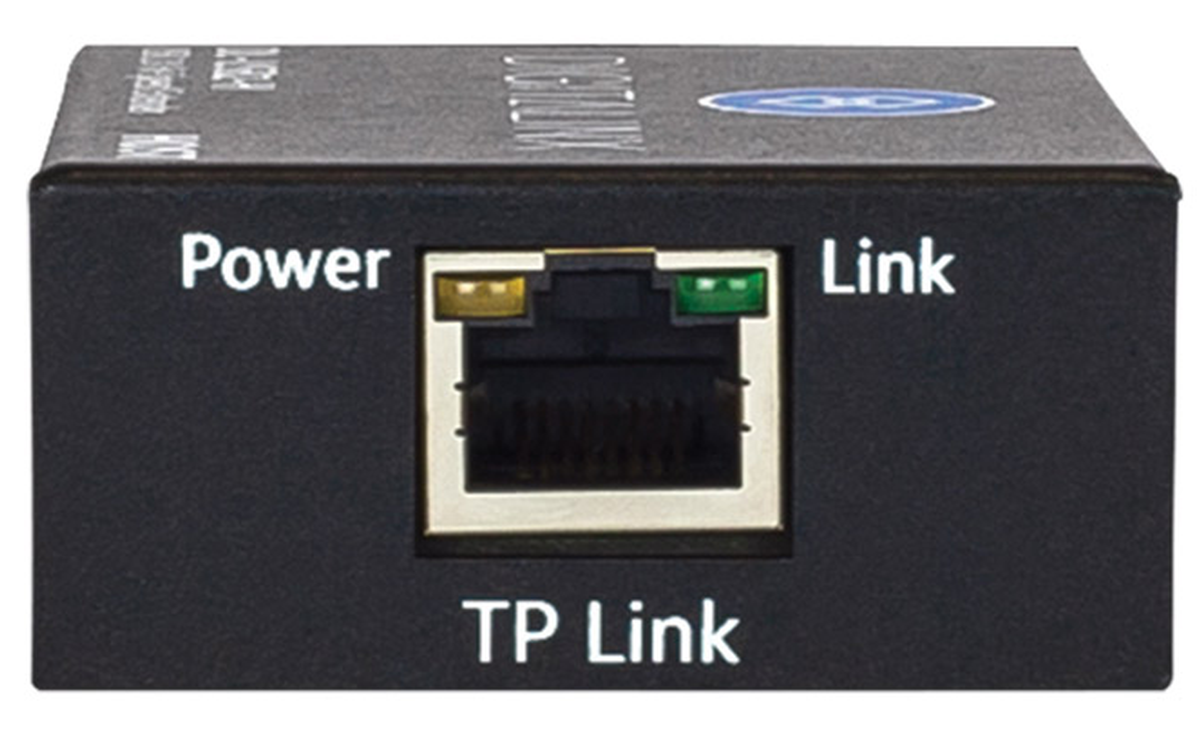

• Diagnostic Indicators: Power and Link LEDs
• Included Accessories: Installation Guide, Power Supply with US plug, USB A to USB B cable
• Compatible Client Extenders: DL-USB2-C, DL-USB2-WP-C

Downloads

• Liberty AV DL-USB2-H Specifications (PDF)
• Liberty AV DL-USB2-H Quick Start Guide (PDF)
