Liberty AV DL-ZHDM-M-008M
25' Liberty 18G Active Optical Low-Smoke Zero Halogen HDMI

Description

Features and Benefits

• Unique patented Opto electronics warrants 18G w/o power

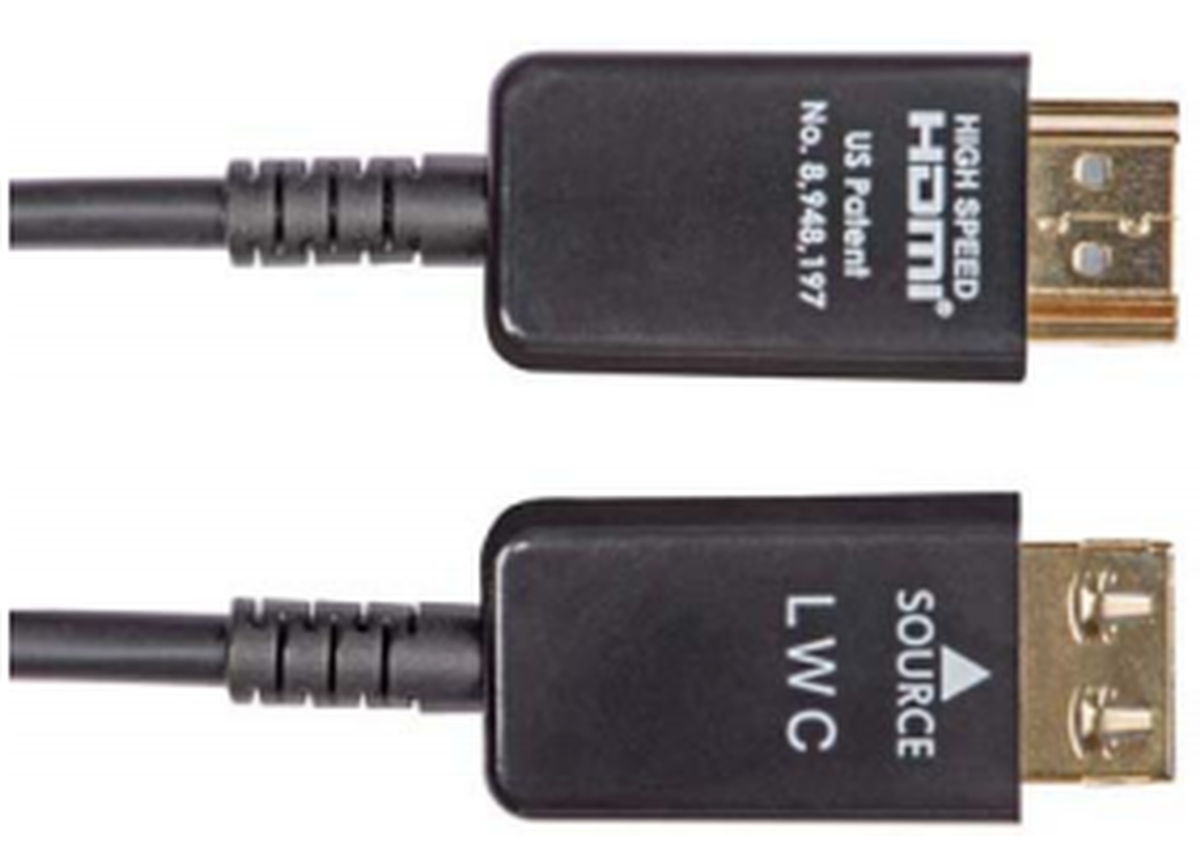

• HDMI "A" to HDMI "A" Male connectivity
• Run up to 330 feet without external power!
• High Retention HDMI plugs
• CPR Eca rated

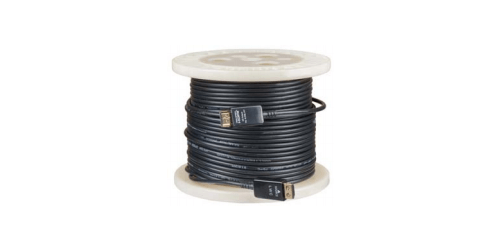

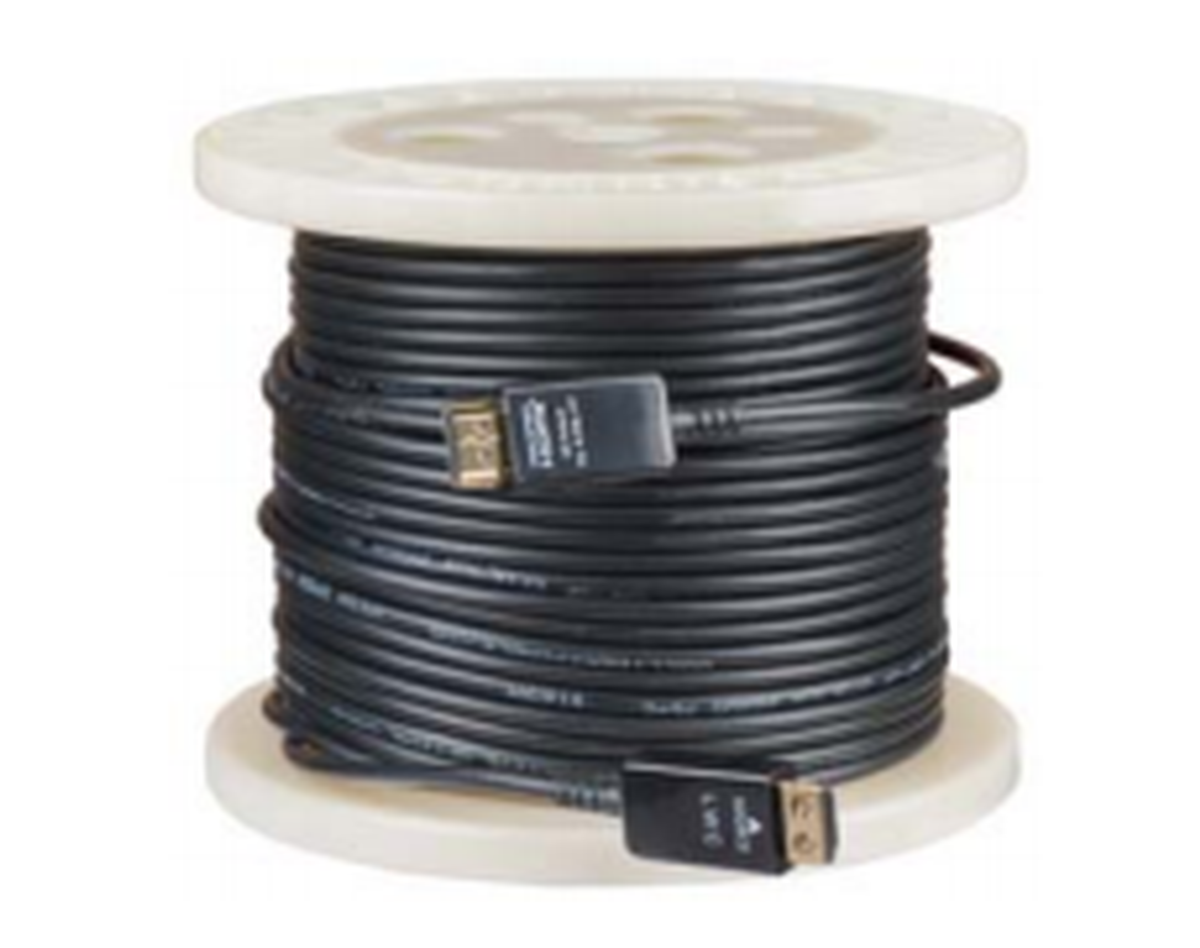

• Small and flexible bulk cable
• Real glass, no plastic optical fiber
• Built to be installed, full strain relief for head pull
• Full HDMI 2.0b 18G, HDR, 4K60Hz 4:4:4, all Audio, CEC
• Does not support Ethernet
• Low Smoke Zero Halogen Jacket for all EU and LED apps
• Lengths: 8m, 10m, 15m, 23m, 30m, 50m, 60m, 70m, 100m

Applications

• Full spectrum HDMI, High Dynamic Range, 4K60Hz 4:4:4
• Medical Imaging, Digital Signage, HDMI extension
• Future proofing current HDMI installs for new content

Specifications

• Video Compliance: HDMI 2.0, HDCP 2.2, HDR
• Embedded Audio: Dolby True HD, DTS HD Master Audio
• HEAC Support: No Ethernet, does support Audio Return Channel (ARC)
• CEC Support: Yes
• Maximum Bandwidth: 18.0 Gbps
• Cable Construction
• HDMI Hood Material: Molded ABS
• HDMI Hood Dimensions: 30mm x 18mm x 9.40mm. Strain relief is 14.0mm
• Fiber Jacket Material: Low Smoke Zero Halogen Polyolefin Alloy
• Cable Construction: Hybrid GOF (Glass Optical Fiber) and Copper
• Overall Cable Diameter: 4.0 mm
• Minimum Bend Radius: Unloaded: 40 mm, Loaded: 80mm
• Maximum Tensile Load: 44 lbs.
• Environmental Requirements
• Operating Temperature: 0 to 75 C (+32 to +140 F)
• Operating Humidity: 20% to 85%, Non condensing
• Storage Temperature: 22 to +122 F
• Storage Humidity: 20% to 85%, Non condensing
• Power and Regulatory
• Power Supply: HDMI BUS power from pin 18 of the source and sink
• Regulatory: Eurospec CPR rated Eca, RoHS Compliant
• Other
• Warranty: 2 years

Downloads

• Liberty AV DL-ZHDM-M-008M Specifications (PDF)
