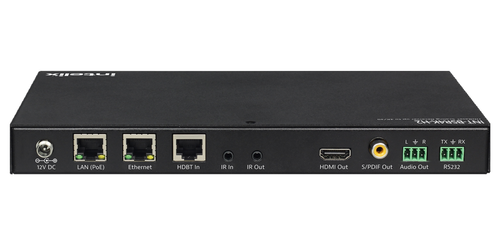

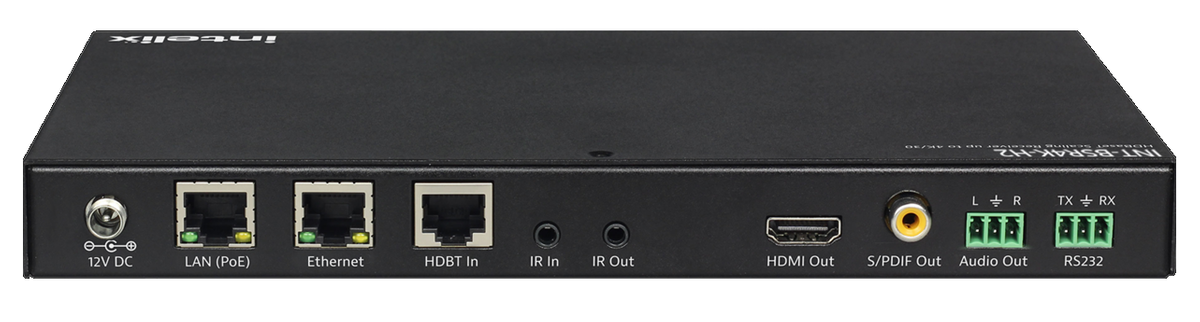

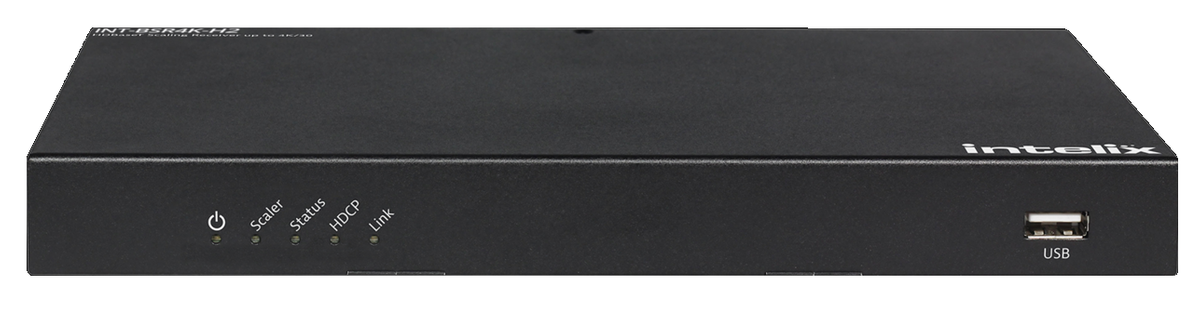

Liberty AV INT-BSR4K-H2
HDBaseT 4K60 Scaling Receiver w/ PoE, Audio-De-Embed
Part #: INT-BSR4K-H2
Satisfaction Guaranteed!
MSRP: $731.10
Our Price:
$638.00
Top INT-BSR4K-H2 Specifications
- Includes HDBaseT Scaling Receiver, mounting tabs, power supply
- Built in scaling up to 4k@60Hz / 4:2:0 / 8 bit deep color
- Up/Down Scaling ability with built in DDC Re-clocking
- 100 meter max distance
"Great support and help from technical support!"
-Patrick S.
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The Liberty AV INT-BSR4K-H2 is an HDMI 2.0 and HDCP 2.2 compliant HDBaseT scaling 4K receiver that distributes uncompressed 4K@60Hz UHD video, digital coax / analog stereo audio, Ethernet, RS232 and bi-directional IR up to 100m/330ft over a single category cable. The INT-BSR4K-H2 can be controlled by telnet or RS232 but also can also store and pass display commands via RS232 as well as generate CEC display ON and OFF commands. The two-port network switch on the INT-BSR4K-H2 allows a second device to share the 100BaseT Ethernet pass-through connection without adding additional hardware to the installation. The INT-BSR4K-H2 requires local power, however it can provide power to a compatible Intelix HDBaseT transmitter.
Applications
- Up & Downscaling ability removes the lowest common resolution concern
- Commercial, residential, education, and any other application for video or presentations
Specifications
- PoH powers the remote transmitter
- PCM SPDIF and analog audio de embedding
- Compatible with all Intelix HDBaseT products
- Affordable way to scale HDBaseT signals to match your display needs
- Passes 2 way IR, RS232, Ethernet for control
- Can store and generate display RS232 / CEC commands with active signal
