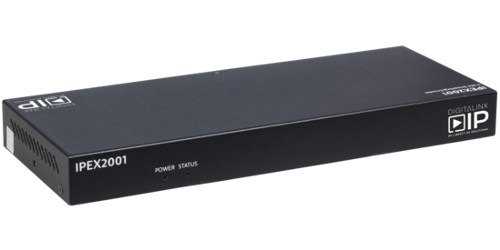

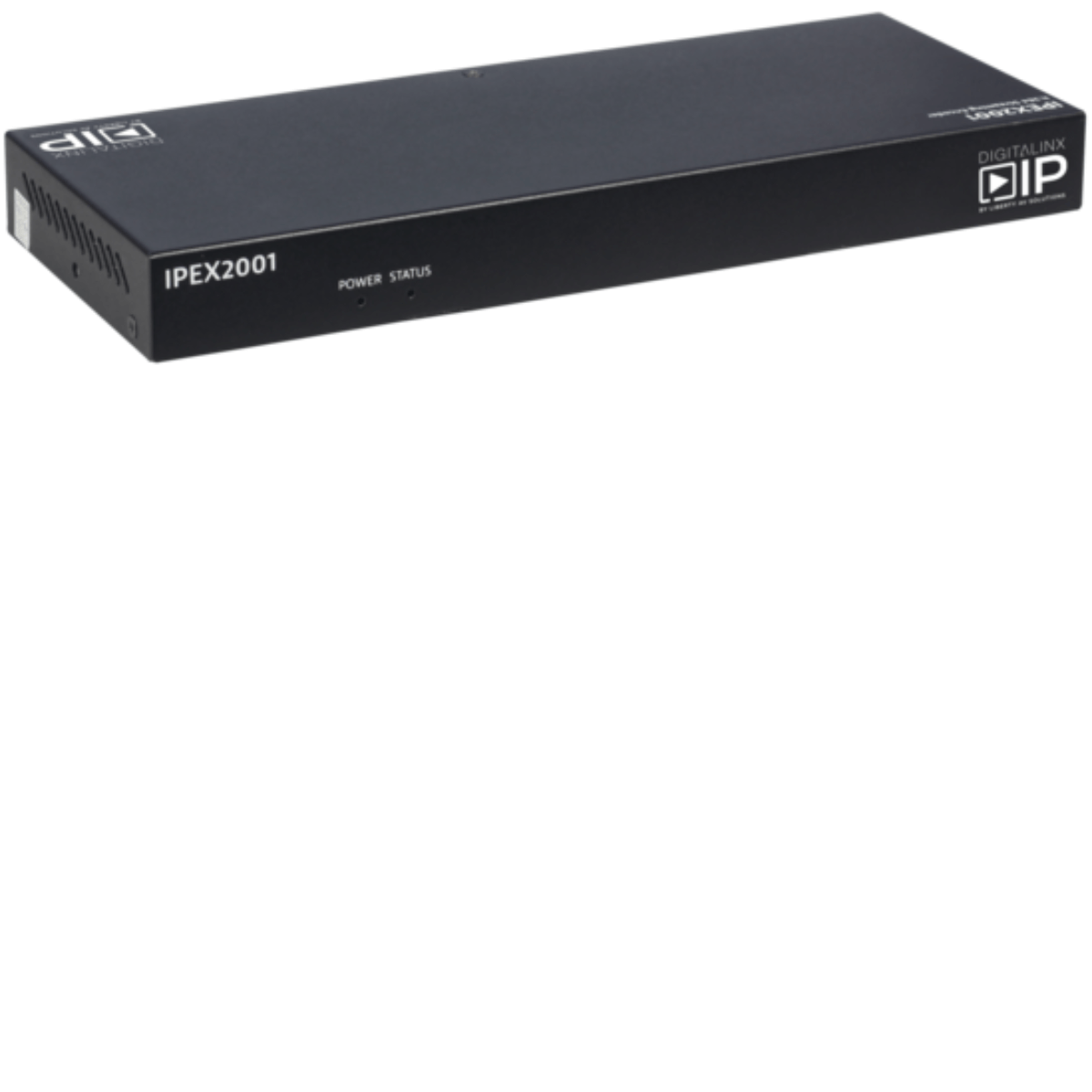

Liberty AV IPEX2001-BSTK
DigitalinxIP 2000 Series AV/IP Encoder
-Patrick S.
Description
The IPEX2001/2002 transmits HDMI video and audio over a gigabit IP network using h.264 AVC encoding with a data rate up to 30 Mbps. The IPEX2001 supports video signals up to 1920x1200 at 60 Hz. The IPEX2001 outputs two video streams: one large IP stream at the native content resolution and a smaller video stream at 352x288 at 5 Hz to easily view a preview of the content on PC software or an iPad. An analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content. The IPEX2001/2002 supports PoE and can be powered remotely by compatible power source equipment, such as a PoE Ethernet switch, eliminating the need for a nearby power outlet. Encoding control provides adjustments for encoding bit rate and quality. The RS232 port operates in a pass-through capacity to control a third party device such as a projector.
