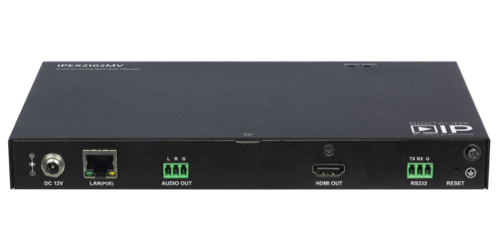

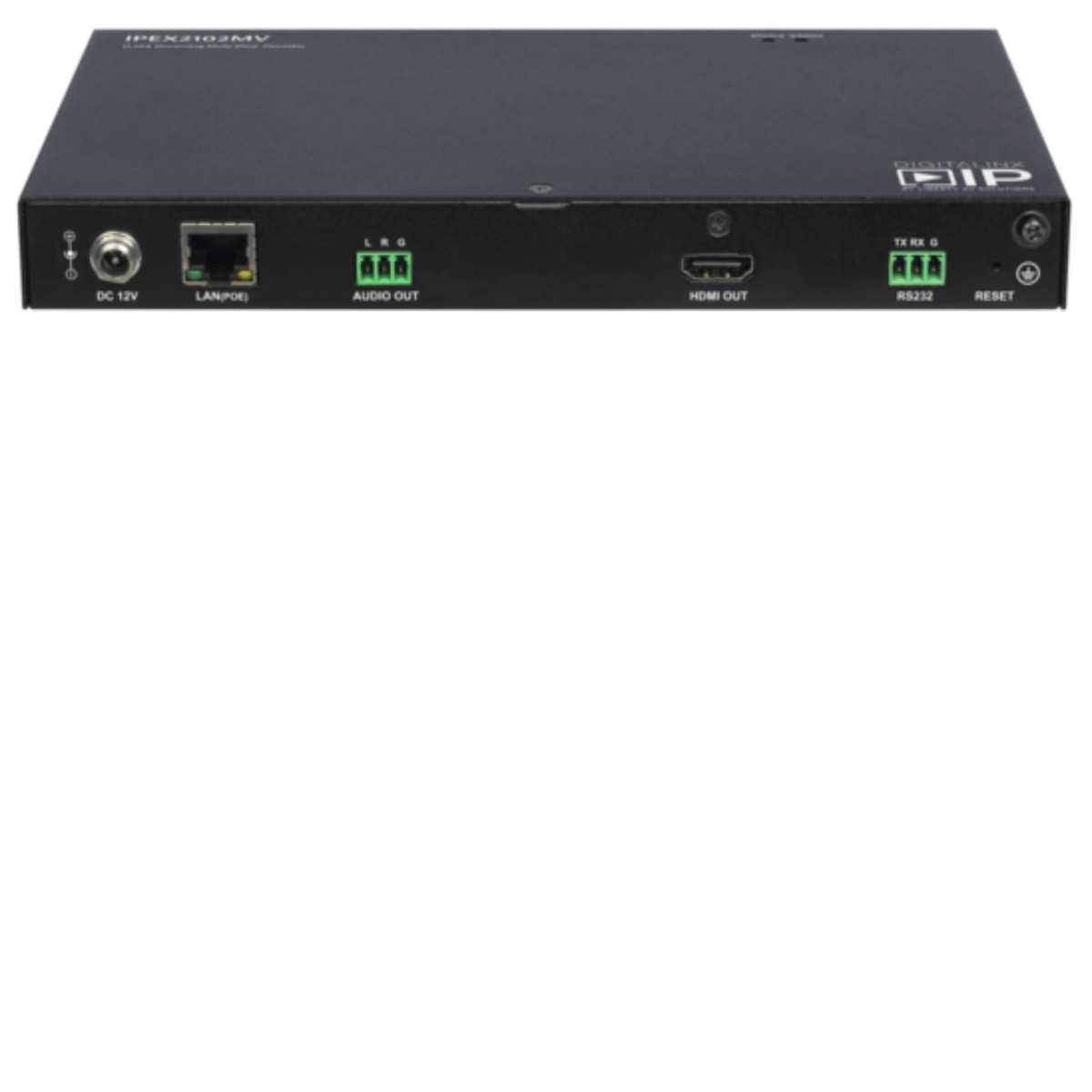

Liberty AV IPEX2102MV
DigitalinxIP 2100 Series Multi-View Decoder
-Brandon K.
Description
The Digitalinx IP IPEX2102MV receives HDMI video and audio over a 1Gb network infrastructure using h.264 AVC encoding with a configurable data rate up to 30 Mbps. The IPEX2102MV outputs video up to 4K and can scale the video content either by user defined preference or automatically based on the native resolution of the connected display. There are multiple preset multi view layouts available on the IPEX2102MV including a custom window overlay mode where up to 6 sources can be placed and sized on a TV display or projector in any location. An analog audio output port de-embeds the 2 channel stereo audio from the embedded HDMI content, while still passing the audio to the HDMI output. The IPEX2102MV supports PoE and can be powered remotely by compatible power source equipment, such as a PoE Ethernet switch, eliminating the need for a nearby power outlet. The RS232 port operates in a pass-through capacity to control a third party device such as a display or projector. The IPEX2102MV requires the legacy IPEXCB control box and is compatible with the IPEX2001 and IPEX2101 streaming encoders. Only (1) one IPEXCB control interface is needed for an IPEX2100 matrix system.
