Liberty AV IPEX5001
HDMI over IP Encoder, Scalable 4K over 1Gb, Matrix/Video Wall

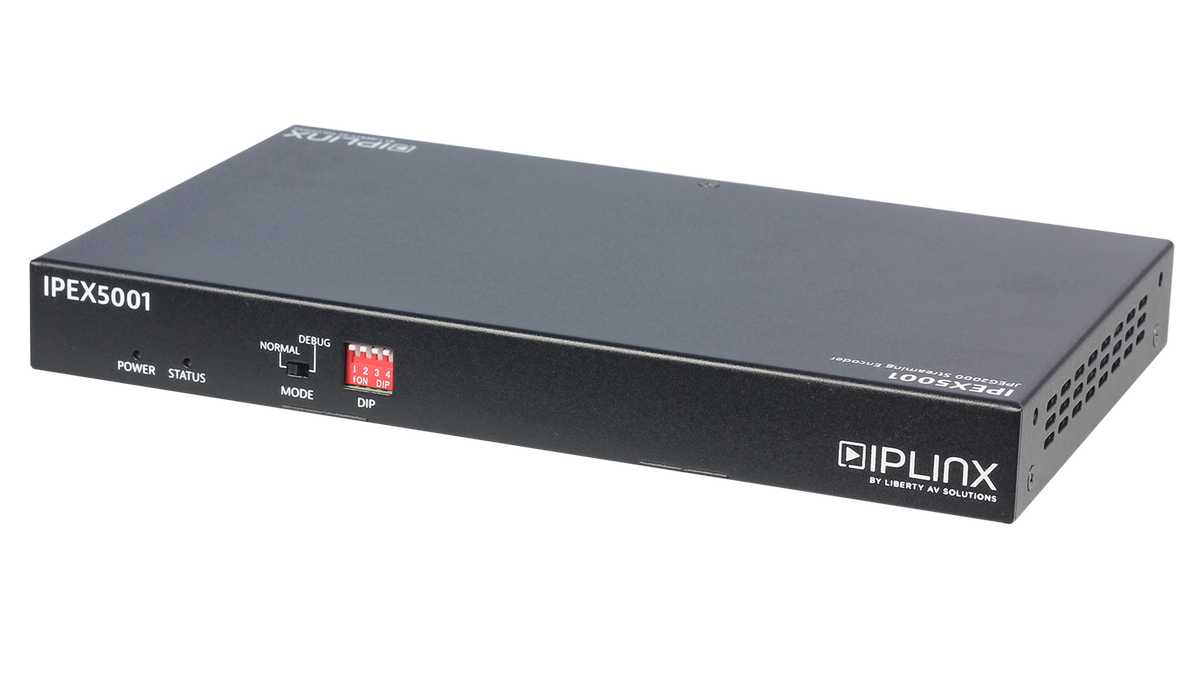

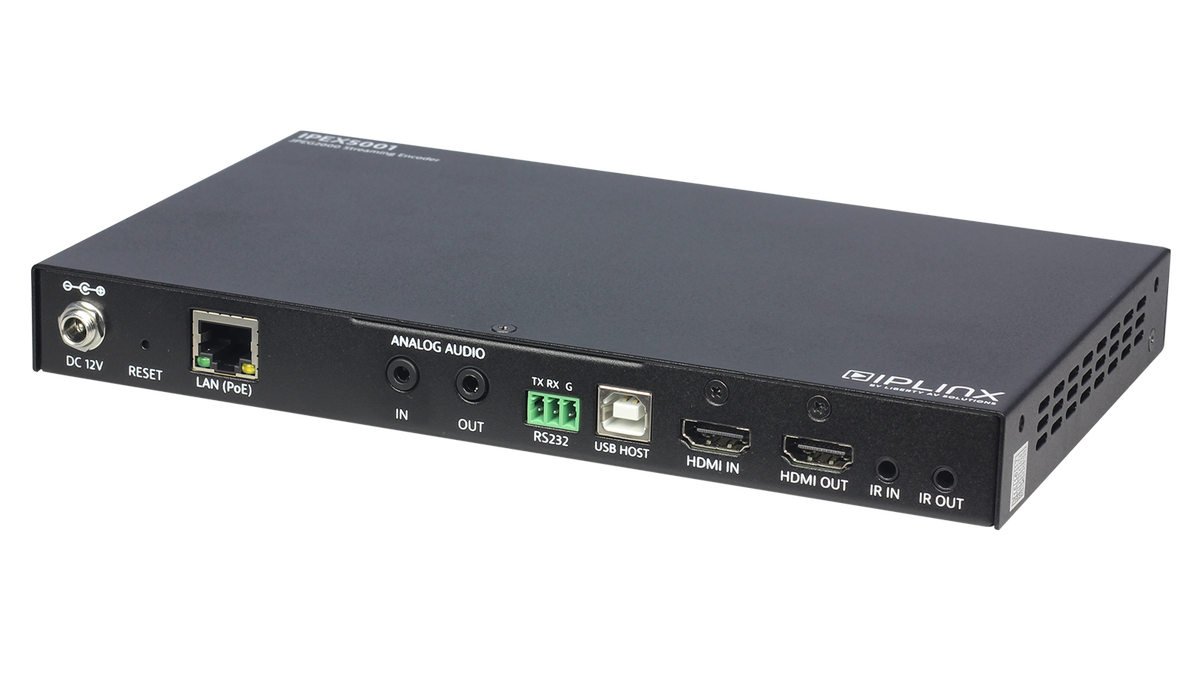

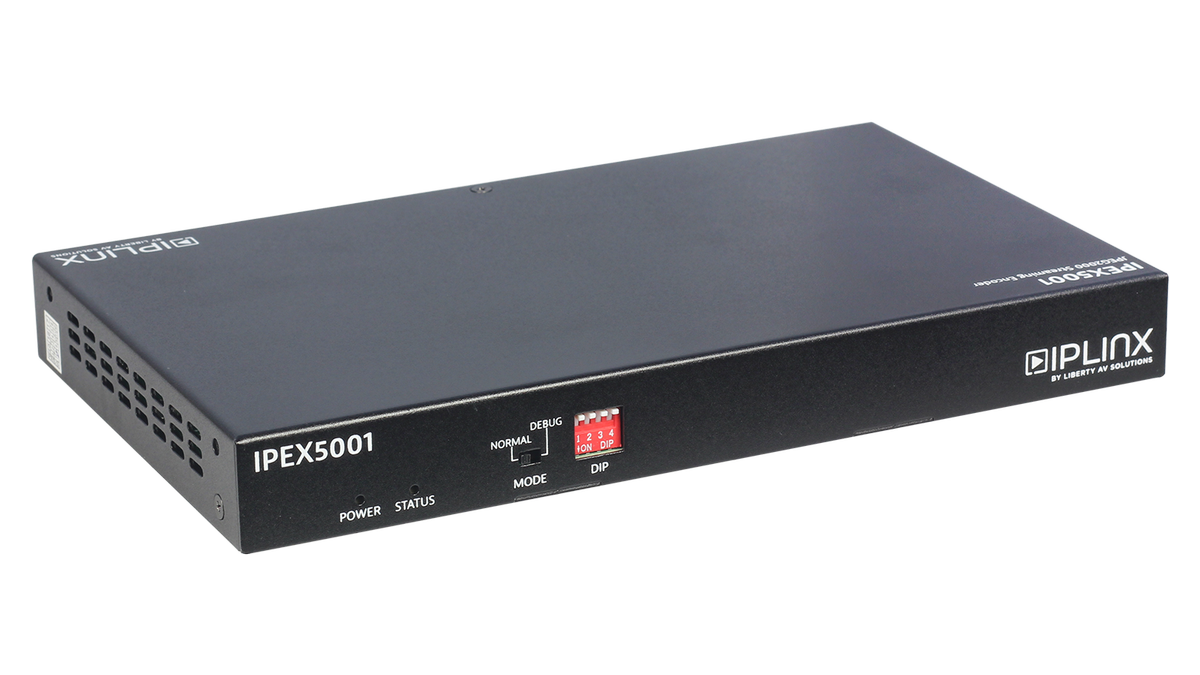

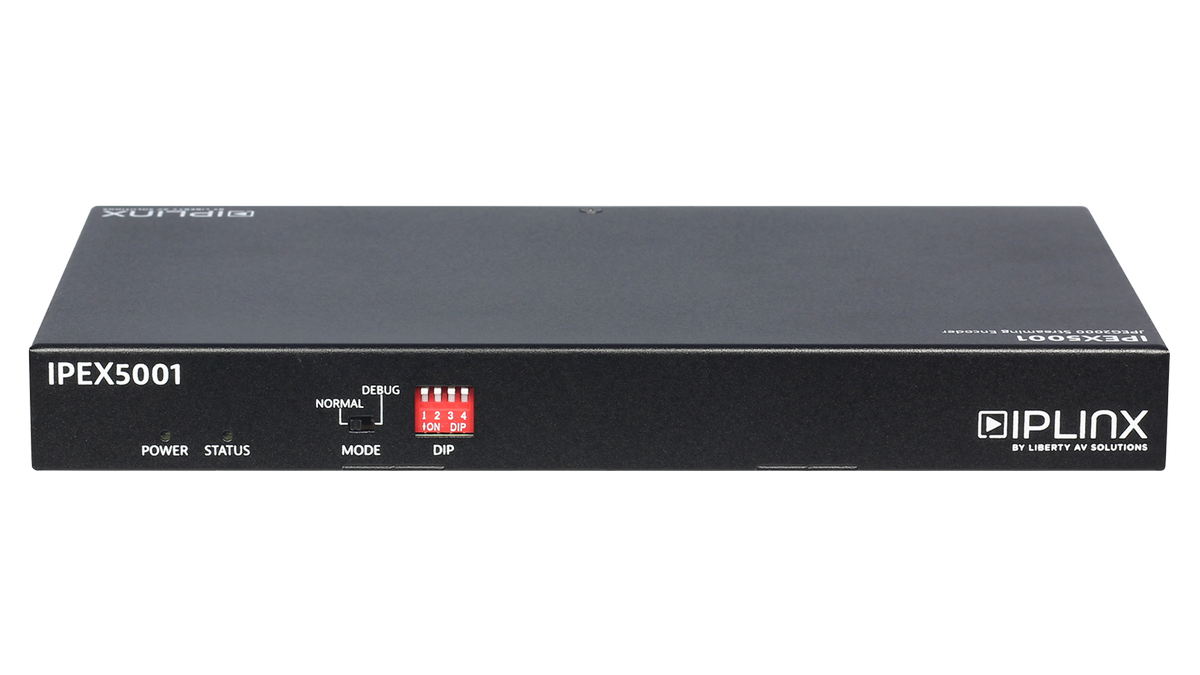

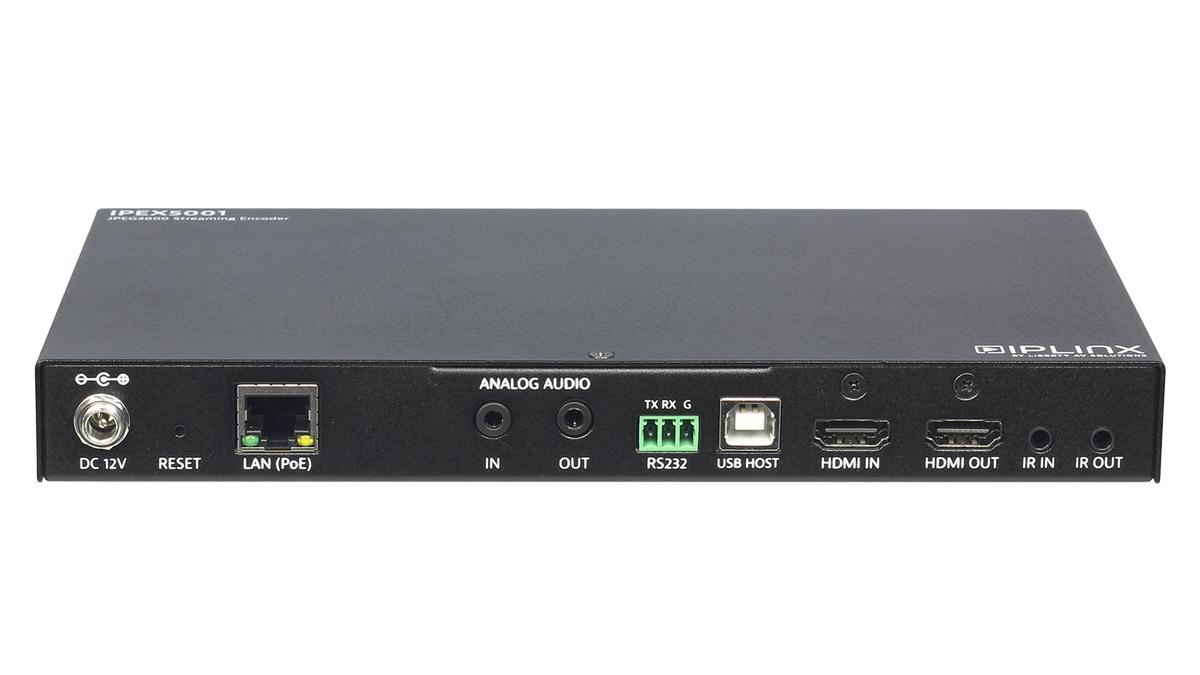

- Connections/Ports: HDMI In, HDMI Out, LAN (Shielded RJ-45), Power, RS-232, USB Type B, Audio In, Audio Out, IR In, IR Out, Reset Push Button, Mode (2 position slider switch), DIP (four position DIP switch)
- Video Resolutions: SMPTE up to 4K/60 4:2:0 / VESA up to 1920x1200
- Color Depth: 24, 30, 36 bit
- Video Compliance: HDMI 1.4 and HDCP 1.4/2.2
Description
The IPEX5001 from Liberty AV is a HDMI over IP Encoder that supplies a scalable 4K solution over 1Gb network with full matrix & video wall capability. The IPEX5001 was designed to transmit HDMI video and audio over a gigabit IP netowkr using JPEG2000 encoding. It will support video signals up to 4K@60Hz 4:2:0 with HDCP 2.2 and 7.1 multi-channel audio. Using a 48 port gigabit switch, up to 45 encoders may be used to create an amazing matrix or switching system within a single installation. There is an analog audio input port which embeds the audio with the video content, such as a DVI video source. The IPEX5001 when used in conjunction with the IPEX5002 Decoder supports PoE (Power over Ethernet) and can equally be powered remotely by compatible power source equipment such as a PoE Ethernet switch, thus eliminating the need for a nearby power outlet, to help further the flexibility of this system. The RS-232 port relays commands from the IP controller and operates in a pass-through capacity to control a third part device such as a projector. The USB connection on this device will pass keyboard and mouse signals from the IPEX5002 decoder to the IPEX5001 encoder.
Primary Features and Benefits of the IPEX5001 Include:
- HDMI video and audio over a gigabit IP network using JPEG2000 encoding
- Video signals up to 4K with HDCP 2.2 and 7.1 multichannel audio
- Analog audio input & output ports embed & de-embeds audio for local use or extension of embeded audio
- Supports PoE and can be powered remotely
- RS232 port relays commands from the IP controller and operates in a pass-through capacity
- IR in and out for 2 way IR control
- USB connection passes keyboard and mouse signals from decoder to encoder
- Up & Down scaling capability up to 4K
The IPEX5001 requires a single IPEX5002 for a point to point installation. When multiple IPEX5001
and/or IPEX5002 devices are in a system, an IPEXCB control box will be required.
Specifications
- Embedded Audio: Up to PCM 8 channel, Dolby Digital True HD, and DTS-HD Master Audio
- Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- USB Compliance: HID only
- Maximum Signal Streaming Distance: 328'
- Cable Requirements: Category 5e or greater with TIA/EIA-568B crimp pattern
- Encoding Data Rate: 2160p: up to 250Mbps / 1080p: up to 150Mbps
- Encoding Method: VBR
- End to End Latency: 17-33 ms (1-2 fps)' Maximum Video Wall Size: 16 x 16
- Chassis Construction: Black Steel
- Dimensions (H x W x D): 0.98" x 8.66" x 5.13"
- Power Input: 12V DC 1A or 48V DC PoE (Power over Ethernet)
- Power over Ethernet Compatibility: 802.3af Alternative A
- Power Consumption: 6 watts
- ESD Protection: 8kV air, 4kV contact
- Regulatory: FCC, CE, RoHS
- Diagnostic Indicators: Power and Status
- Included Accessories: Installation Guide, Power Supply with US, UK, EU and AU adapters, 3-pin Removable Screw Terminal, Mounting Ears (2 ea), IR emitter, IR receiver
- IP Controller: IPEXCB
- Compatible Decoder: IPEX5002
- Warranty: 2 years
