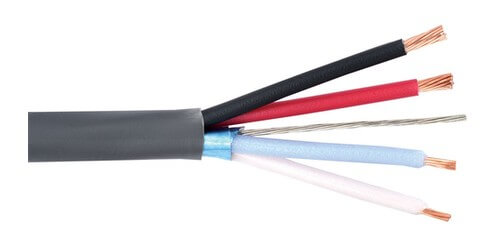

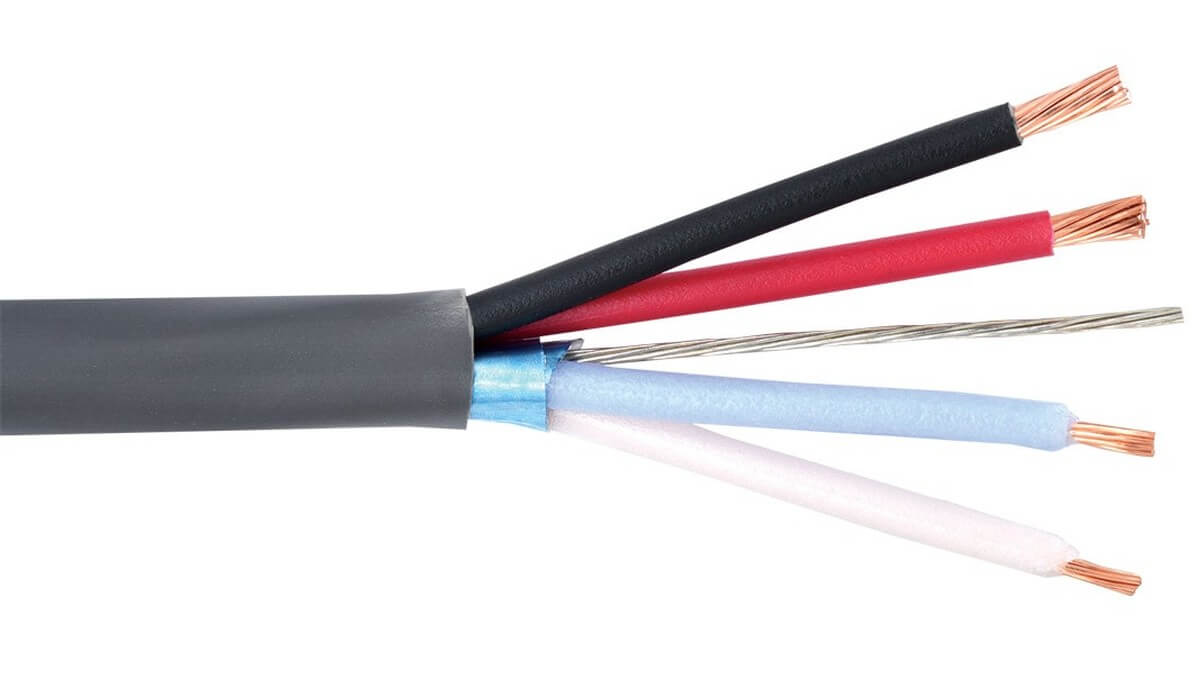

Liberty AV LLINX-U-P
Grey Oem Systems Universal Control 22 Awg Plenum Cable Reel
Part #: LLINX-U-P
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Features and Benefits Data pair: 22 AWG 7-strand tinned copper conductors Data pair: foamed FEP insulation for low capacitance Data pair: 100% isolated foil shield with drain wire Data pair: 105 Ohm, 12.5 pF/FT low capacitance Power pair: 18 AWG 7-strand annealed bare copper conductor Power pair: PL-PVC, plenum rated PVC alloy insulation Data and power components cabled on a common axis Ripcord PL-PVC, plenum rated PVC alloy outer jacket NEC CMP, CEC CMP FT6, RoHS compliant Applications Plenum OEM support for AMX/Crestron/Lutron systems Plenum RS-232C, RS-422, RS-485 plus low voltage power Plenum analog and digital audio 300 watt max power at 500 feet recommended
