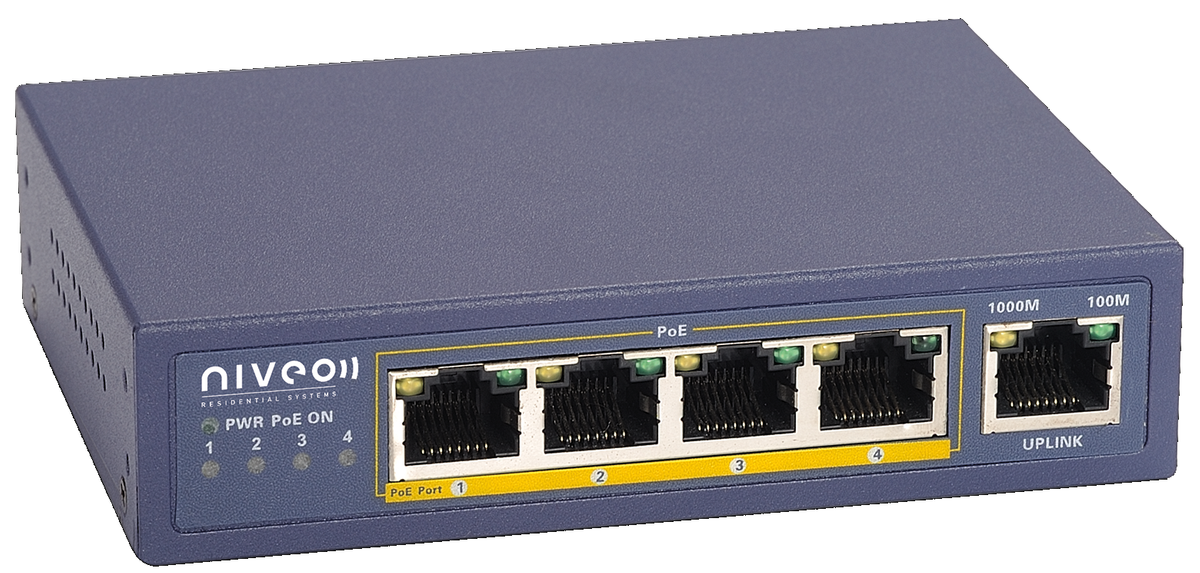

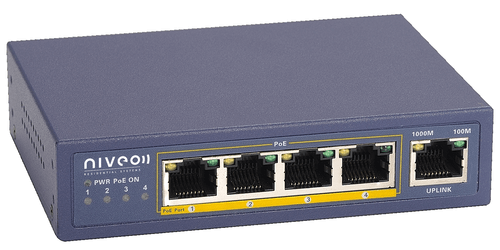

Liberty AV NRS5GP
Niveo 4 port + Uplink PoE+ Gigabit Network Switch

Description

The Niveo Professional introduces the brand new NR-Series switches, designed for residential and small commercial setups that have a need for extremely stable (PoE) switches, but do not have the demand for Enterprise grade network management or design redundancy.

The NR-series is the installers’ ultimate Go-To-switch series for great value switches. The switches have been designed to offer full duplexing on all ports, getting the best performance out of the network at minimal cost.

Features and Benefits

• PoE+ (IEEE 802.3af/at (Type 1) on 4 downlink ports
• Uplink port
• 10 Gbps backplane bandwidth
• Total PoE Power Budget: 60w
• 10/100/1000 Mbps bandwidth per port (including uplink)

Specifications

• Bandwidth: 0.8 Gbps ( 5 ports) / 1.6 Gbps (9 ports)
• Network Delay: less than 2 ms
• Buffer Memory: 96 KB
• Address Database Size: 1000
• Mean Time between Failure: 30,000 hours
• Network Standards: IEEE 802.3i 10BaseT / IEEE 802.3U 100BaseTx / IEEE 802.3x Flow Control / IEEE 802.3 af / IEEE 802.3 at POE PSE
• LED Indicator: System: Power, POE Max Power / Per Port: Link, Activity, Speed, POE active, POE error Power Supply (9 ports): NRS8FE Total Power Consumption: 96 W
• Physical Specification (5 ports)
• Dimension: 118 x 85 x 28 mm
• Weight: 0.35 kg
• Physical Specification (9 ports)
• Dimension: 217 x 105 x 28 mm
• Weight: 0.57 kg
• Power Pin Assignment: Endspan 12(+) 36 (-)
• Power Requirement: AC 90-260V input, 50/60 Hz
• Warranty: 1 year

Downloads

• Liberty AV NRS5GP Specifications (PDF)
• Liberty AV NRS5GP Manual (PDF)
• Liberty AV NRS5GP Additional Information (PDF)
