Liberty AV UFO-DP-35P
35' Celerity Technologies Universal DisplayPort AOC Cable

Description

Features and Benefits

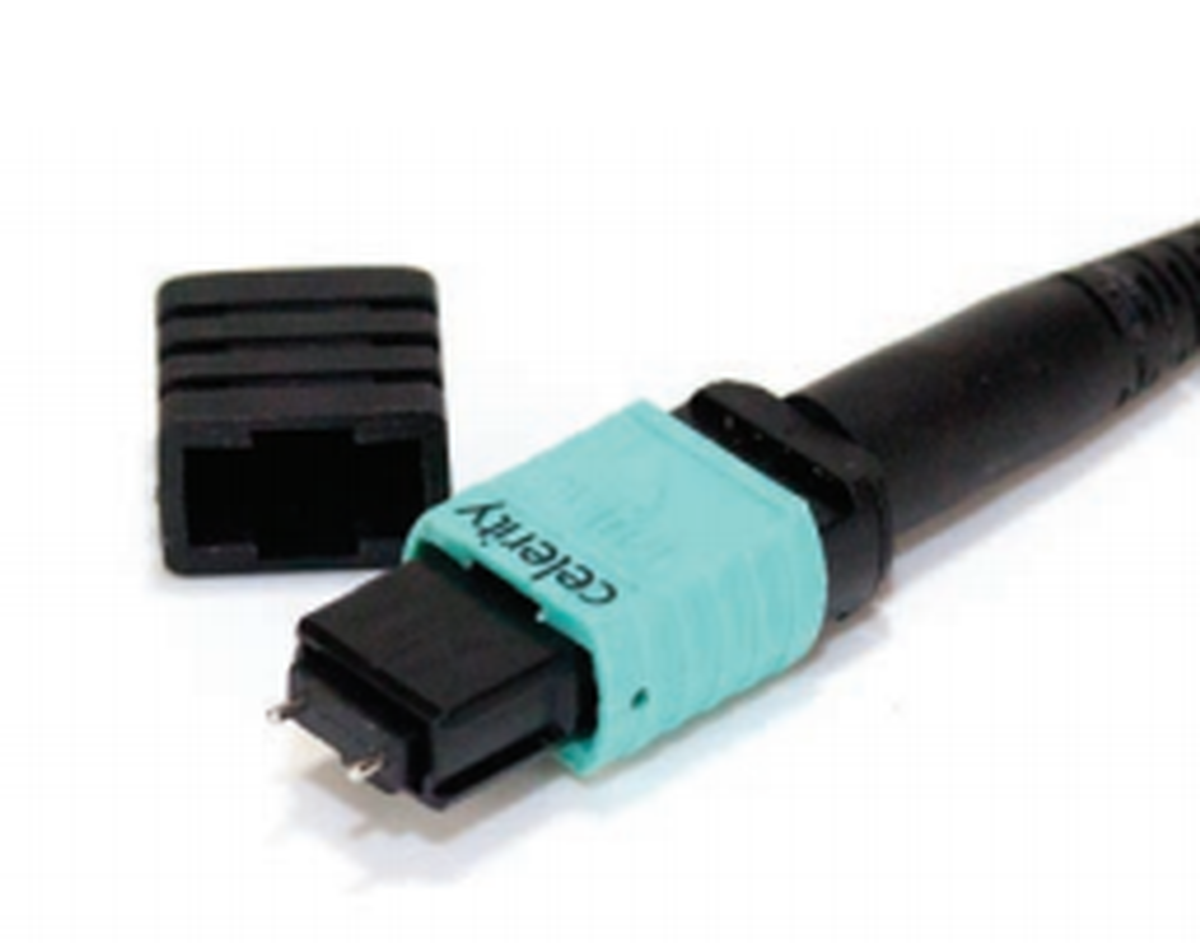

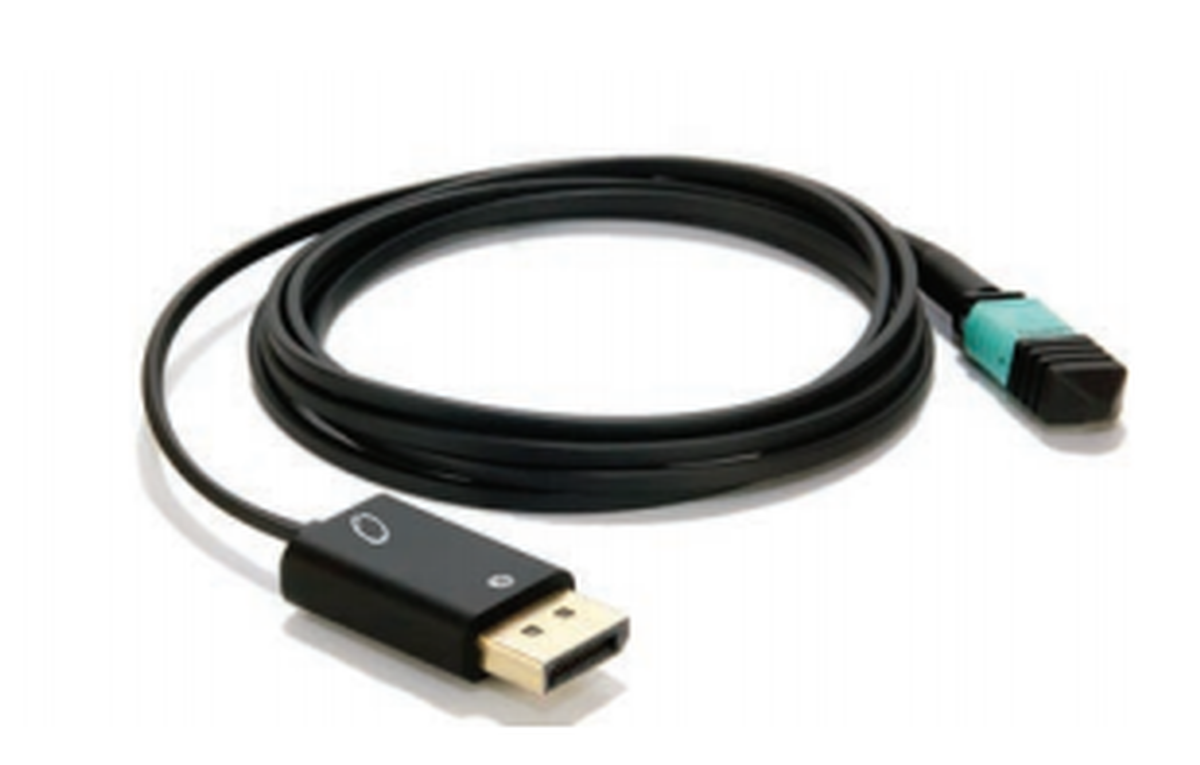

• Detachable TX and RX leads 6' long with MPO plugs
• Plenum rated Umbilical cable for all installations
• Ultra-Small diameter cable
• USB Power A plug on both TX and RX units
• Lengths: 35,40,50,60,80,100,160,200,500, and 1000 ft
• HDMI 2.0 18Gbps supporting 4K60 4:4:4, HDR, 3D
• All HDMI supported Audio formats, HDCP 2.2 Compliant
• Cable body is ready for 48G electronics, universal

Applications

• HDMI Projectors, Displays in commercial and residential
• Maximum bandwidth and distance needs for HDMI installs

Specifications

• Supported features HDMI High Speed
• HDR HDCP v2.2
• EDID CEC
• BT.2020 Deep Color
• Audio Return Channel Yes
• LED status indicator at TX & RX HDMI connectors
• powered LED verifies connectivity
• Power TX: 0.5W RX: 0.5W
• 5V DC
• Temperature / Humidity -04 F - 158 F (-20 C - 70 C) / 0% - 90% RH
• Cable Jacket Plenum rated
• Fiber optic cable pull strength 60 pounds
• Bend radius 0.20" / 5mm
• HDMI connector dimension 0.33" x 0.66" x 0.96" / 8.5 x 16.7 x 24.5 mm
• Fiber optic connector dimension 0.31" x 0.51" x 1.77" / 8.2 x 12.9 x 1.77 mm
• Warranty
• Celerity Technologies warrants this product against defects in material or workmanship for a period of 24 months

Downloads

• Liberty AV UFO-DP-35P Specifications (PDF)
