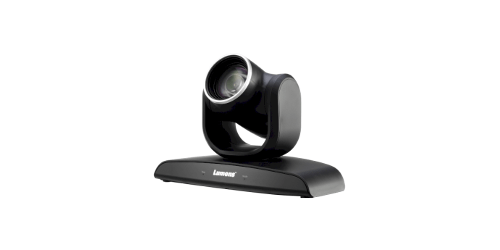

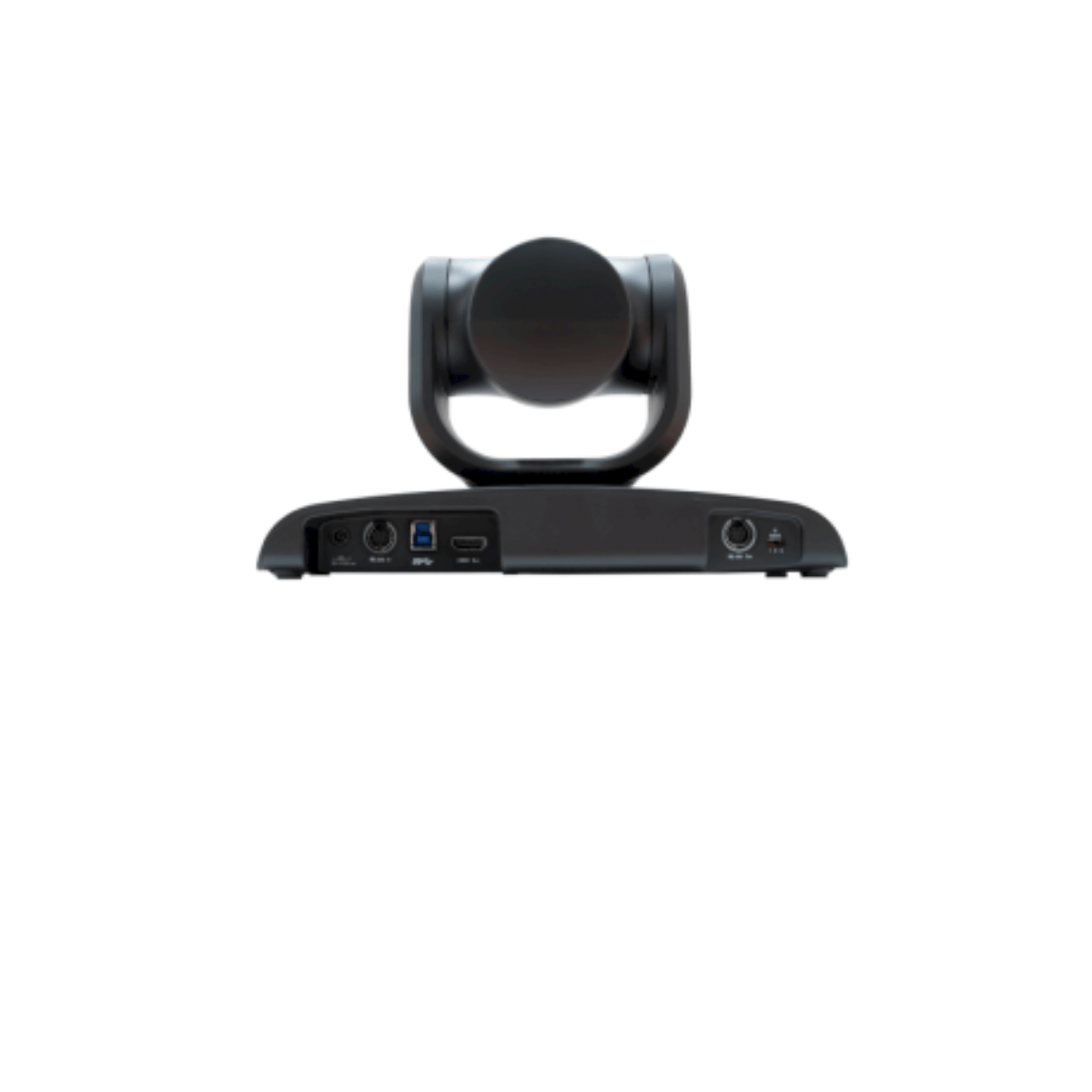

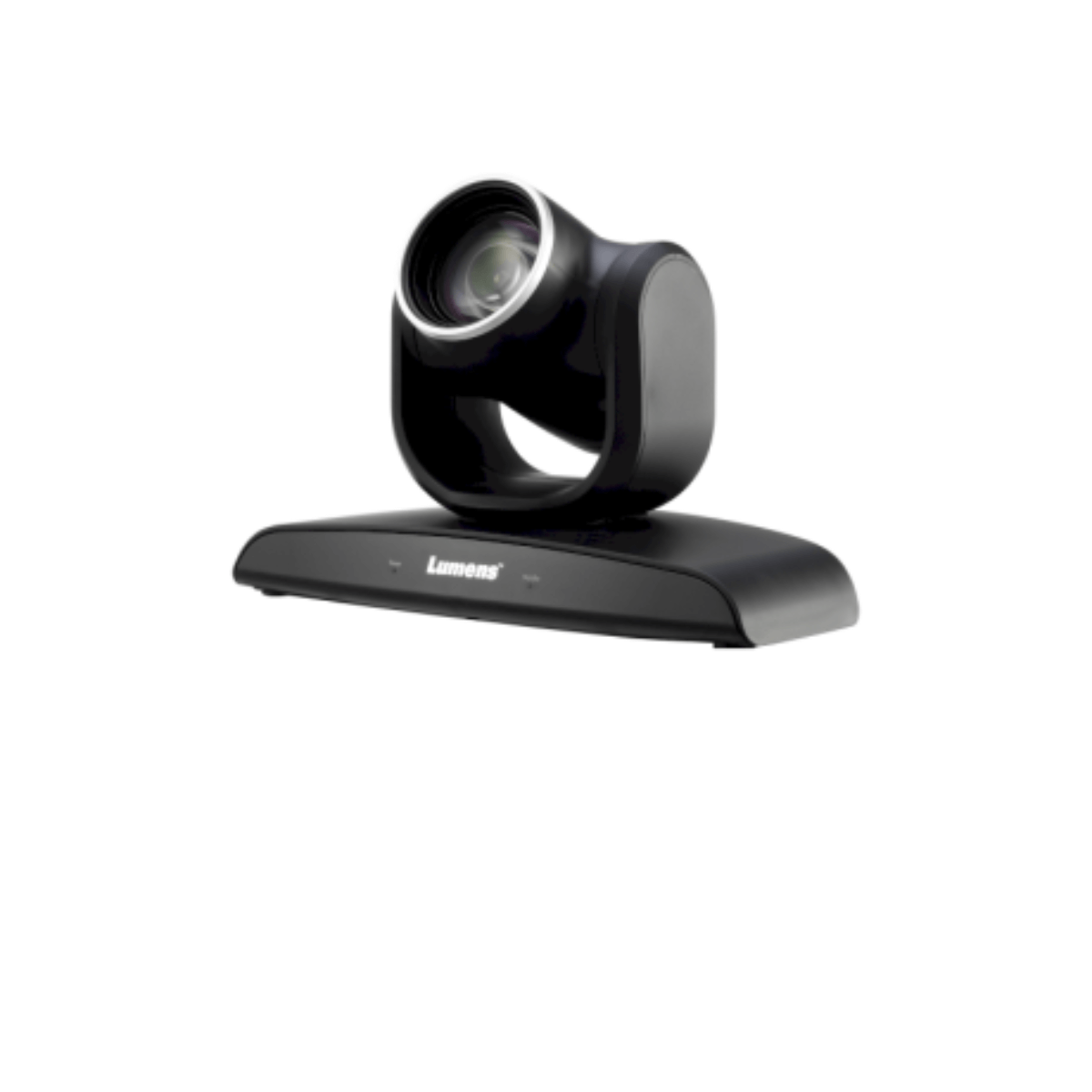

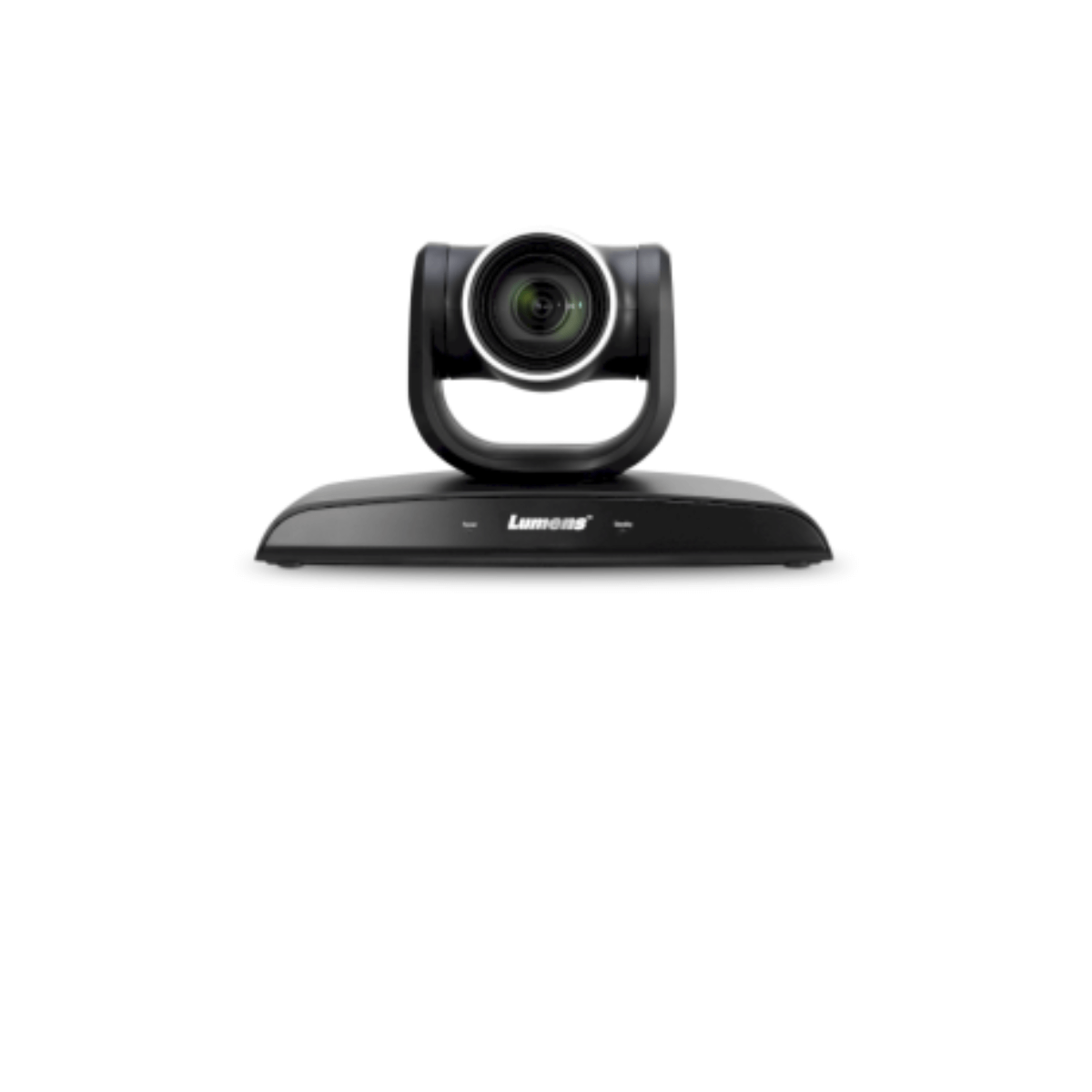

Lumens VC-B30U
Zoom Certified USB PTZ Conference Camera - 1080p

Description

The Lumens VC-B30U HD Pan/Tilt/Zoom (PTZ) camera has USB 3.0 and HDMI video output interface. It is equipped with a Sony 1/2.8 inch image sensor with Full HD 1080p output resolution and a high dynamic image of 60 fps.

The superior 12x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a conference room. The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. There are up to 128 preset setting movements and stable remote controlling for displaying effective and efficient presentations. The VC-B30U is applicable for videoconferencing in a huddle room or a medium size conference room.

Key Features:

• Zoom Certified USB camera and HDMI output
• 1080p 60fps
• Pan / Tile /Zoom up to 12x optical zoom
• 80° DFoV / 72° HFoV
• 128 user-defined presets

Package Contents:

• Instruction for installation
• Remote Control
• Power Cord
• Power Adapter
• USB3.0 cable
• HDMI cable

Specifications

• 12x optical zoom is applicable for a medium size conference room
• Viewing Angle: 72 (H) 80 (D)
• Wide range Pan/ Tilt/Zoom actions: Pan angle from -100 to +100
• tilting angle from -30 to +30
• Video Output (HD): Interface HDMI, USB 3.0
• Optical Zoom 12x
• Digital Zoom 12x (HDMI Only)
• Viewing Angle 72 (H) 80 (D)
• Panning Angle +100 ~ -100
• Panning Speed 100 /Sec
• Tilting Angle +30 ~ -30
• Tilting Speed 100 /Sec
• Aperture F1.6~F2.8
• Image Flip Yes
• Preset Positions 128
• Camera Control
• Interface RS-232 In and Out / USB
• Camera Control
• Protocol VISCA / UVC
• Video Stream YUV422 / MJPEG
