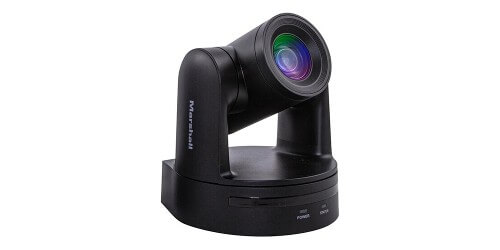

Marshall CV605BK
5x PTZ Camera IP/3GSDI (Black)

Description

The CV605 5X optical zoom 3GSDI camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple available outputs include 3GSDI and IP (H.265/H.264). Marshall’s straight forward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional A/V applications. CV605-BK/WH can be setup through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.

Specifications

• 1920x1080i at 60/59.94/50fps
• 1280x720p at 60/59.94/50/30/29.97/25fps
• Low Illumination capability at 0.5Lux (F1.8) for challenging environments
• 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
• Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable
• Control Options: IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422)
• Or Custom 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)

Downloads

• Marshall CV605BK Specifications (PDF)
