Middle Atlantic

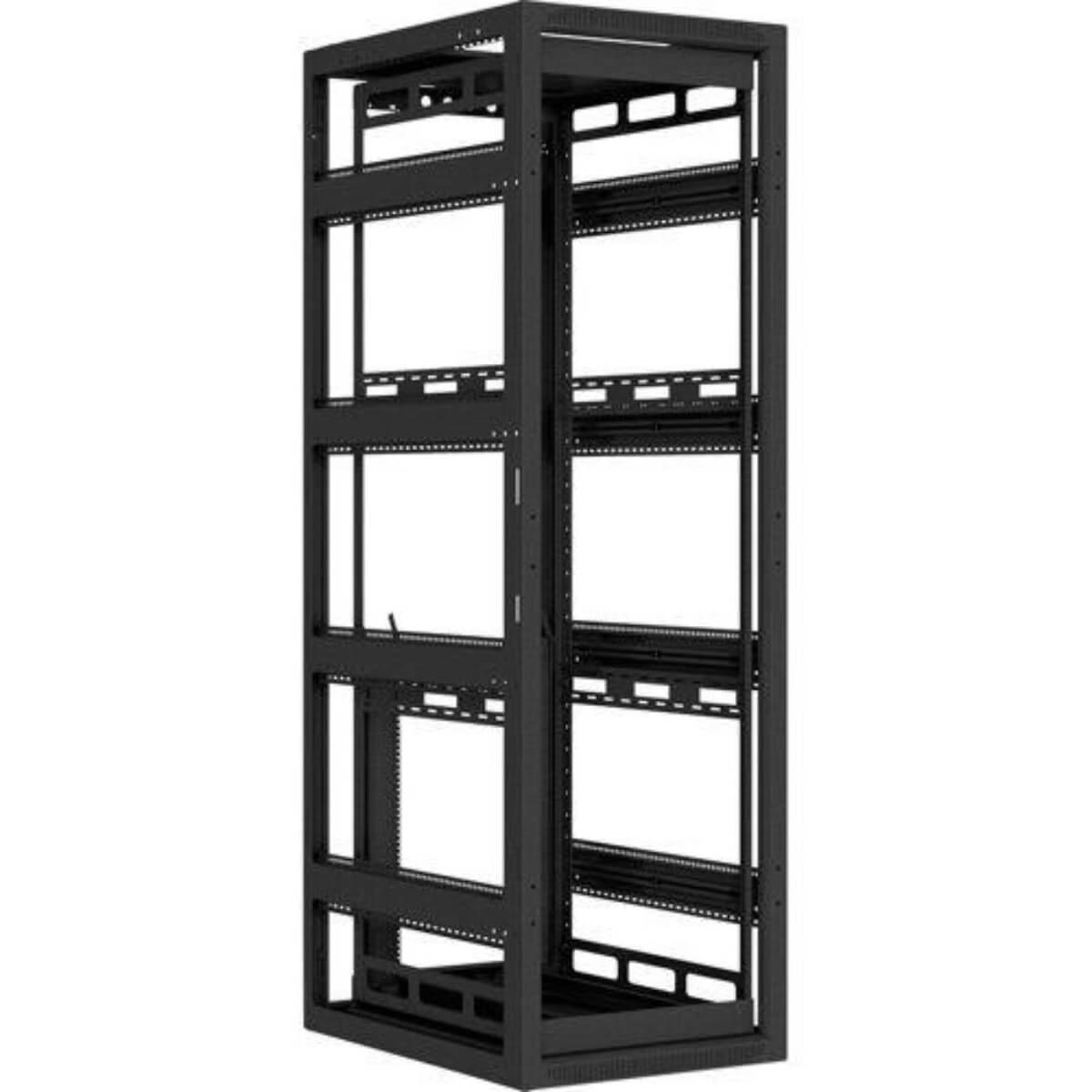

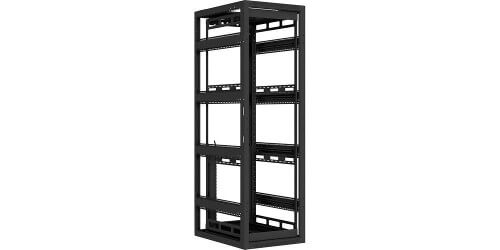

AXS-IR-4132-26
AXS-38-26 IN RACK 4132
- Rack Type: Open Frame
- Cable Management
- Fixed Front Rail
- Form Factor: Floor Standing
-Chad R.
Description
Roll entire bays of equipment straight out for service and installation flexibility. A factory-assembled AXS system in a rack (IR) is ideal for access to rear equipment connections or when space-limited environments require equipment bays to be placed up against a wall. 38 useable RUs in a 45RU enclosure. 26" of useable depth in a32" deep enclosure. The rack can be pre-installed on-site allowing for equipment installation and cabling to be done off-site in the AXS system. Seismically rated when installed with AXS-IR-Z4K kit. Meets OSHPD OPM requirements in the State of California when using AXS-IR-Z4K seismic mounting kit. AXS includes standard fixed front and rear 10-32 threaded rackrail with numbered spaces. Includes extending cable carriers for effective cable management when the AXS is pulled out or retracted. Includes rack, rack frame, cable carriers, base, and safety leashes. Service Tracks are required to pull AXS out of Host Enclosure for servicing. Accepts standard BGR options like doors, side panels, tops, etc. (see below for all Compatible Products).
Specifications
- Product Color: Black Powder Coat
- Product Material: Steel
- Maximum Weight Capacity: 650 lb
- Height: 76.8"
- Width: 23"
- Depth: 32"
- Rack Height: 38U
- Rack Width: 19"
- Rack Depth: 26"
- Assembly Required: Yes
- Environmentally Friendly: Yes
- Environmental Certification: GREENGUARD Gold
- Country of Origin: United States
- Limited Warranty: 3 Year
- Environmental Certification: ISO 14001
