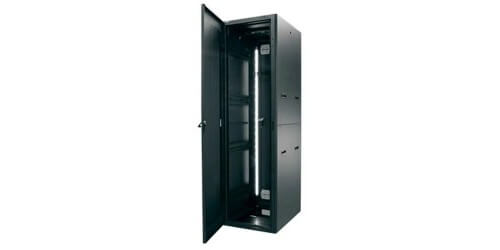

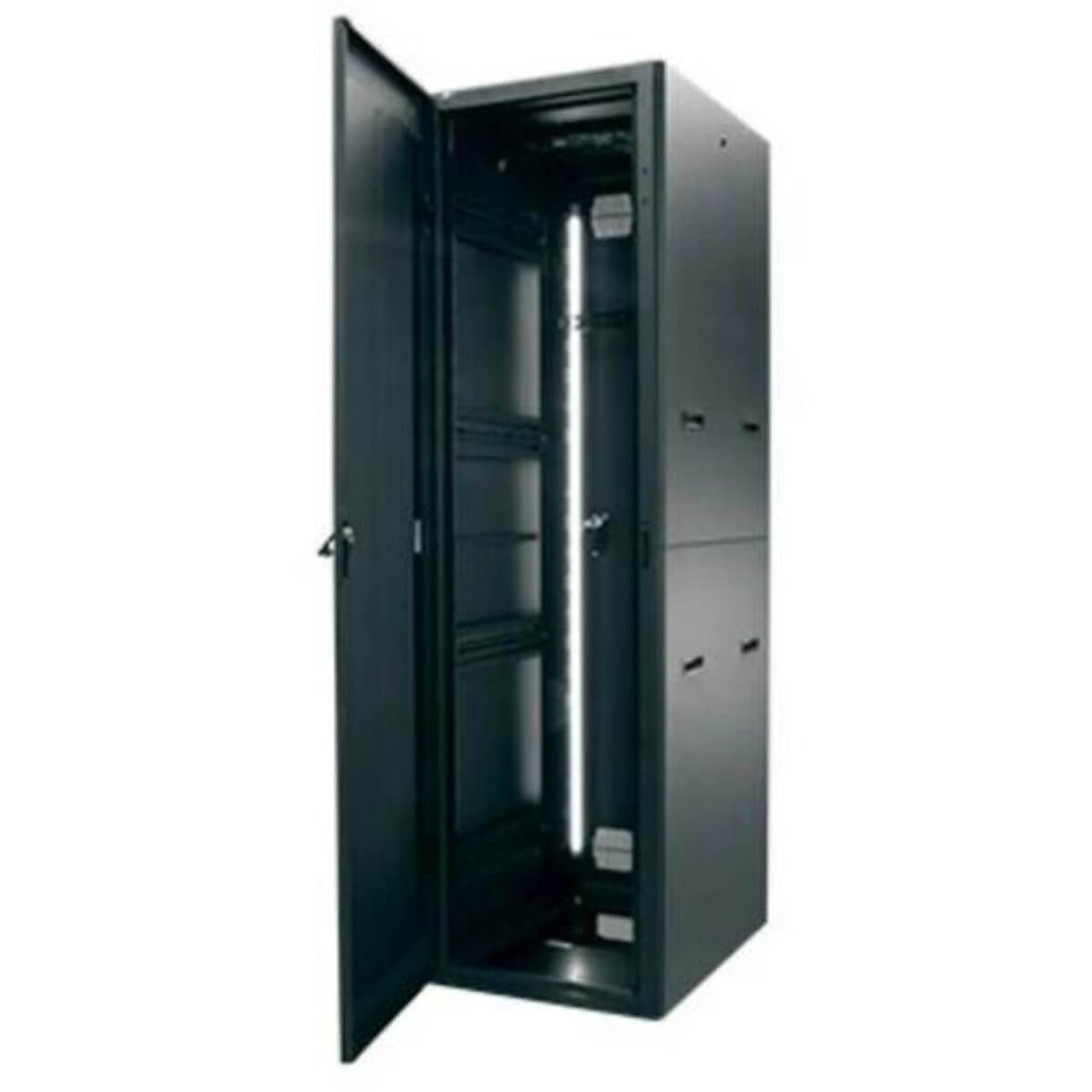

Middle Atlantic BGR-4527-AV
Pre-Configured BGR For AV Systems BGR-4527-AV
- All BGRs are now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels horizontal cable management and vertical cable management
- All BGRs are now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels horizontal cable management and vertical cable management
- Provides more rackspace in a smaller overall height than similar racks
- Provides more rackspace in a smaller overall height than similar racks
-Gregory W.
Description
A pre-configured BGR built for today's AV systems. The accessories and options included with the Pre-Configured BGR for AV are exactly what you need to deliver an optimized AV system. It includes some of our most popular Forward accessories as well as thermal management and cable management. The AV Pre-Configured BGR Includes: Included Forward Panels (4) Forward 1RU flanged blank panels (FWD-EB1). (2) Forward 2RU flanged blank panels (FWD-EB2). Included Horizontal Cable Management: (1) 4pk of Forward straight horizontal lacer bar (FWD-LB-1A-4PK). (1) 4pk of Forward 2" offset horizontal lacer bar (FWD-LB-2A-4PK). Included Vertical Cable Management: (1) Forward Vertical Wire Grid Lace for vertical and horizontal cable routing on a single lace bar (FWD-LACE-WB3-44-45). (1) Forward Vertical Cable Management Lace (FWD-LACE-UMV-44-45) with the patented universal hole pattern. Compliment with FWD-C-RING, FWD-D-RING and FWD-TSW-15. (2) Lever Lock vertical channel (LL-VC21). Included Cable Management Accessories: (1) 15pk of Forward tie saddles for optimal cable management in any direction using absolutely no hardware. Accepts both cable zip ties and hook & loop. (FWD-TSW-15). (2) Velcro® straps for tie saddles (TW12). Included Small Device Mounting: (2) 4pk of Forward small device clamps for quick mounting of small, non-rackmount devices without any hardware (FWD-SIDECLMP-4). (1) Lever Lock plate for small device mounting (LL-VP2110). (1) DC fan top with 4 fans moving 276CFM. Includes controller (BGR-276FT-FC). Included Rack Options: (1) Solid front door (BFD-45). (1) Pair of side panels (BSPN-45-27). (1) set of leveling feet (LF-HD). Included Hardware: (100) 10-32 threaded rackscrews (HP).
Specifications
- Accepts patented Lever Lock? tool free and hardware free internal device and cable management system accessories
- Accepts patented Lever Lock? tool free and hardware free internal device and cable management system accessories
- Fully welded construction provides the following weight capacities: UL Listed load capacity: 3,000 lbs., Seismic certified capacity: 1,175 lbs.
- Fully welded construction provides the following weight capacities: UL Listed load capacity: 3,000 lbs., Seismic certified capacity: 1,175 lbs.
- Pre-threaded ganging holes allow for rack joining after loading
- Pre-threaded ganging holes allow for rack joining after loading
- Rackrail depth indicators
- Rackrail depth indicators
- 1/2", 3/4", 1" &
- 1-1/2" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts on rear top &
- bottom, easily removable for cable pass-through. Top cable management plate (38 space and up) includes 1/2", 3/4", 1" 1-1/2" &
- 3" electrical knock...
- 1/2", 3/4", 1" &
- 1-1/2" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts on rear top &
- bottom, easily removable for cable pass-through. Top cable management plate (38 space and up) includes 1/2", 3/4", 1" 1-1/2" &
- 3" electrical knock...
- 23" OD width, multiple depths
- 23" OD width, multiple depths
- Two pairs of 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
- Two pairs of 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
- Optional stackable 3" extender bay available for front and rear
