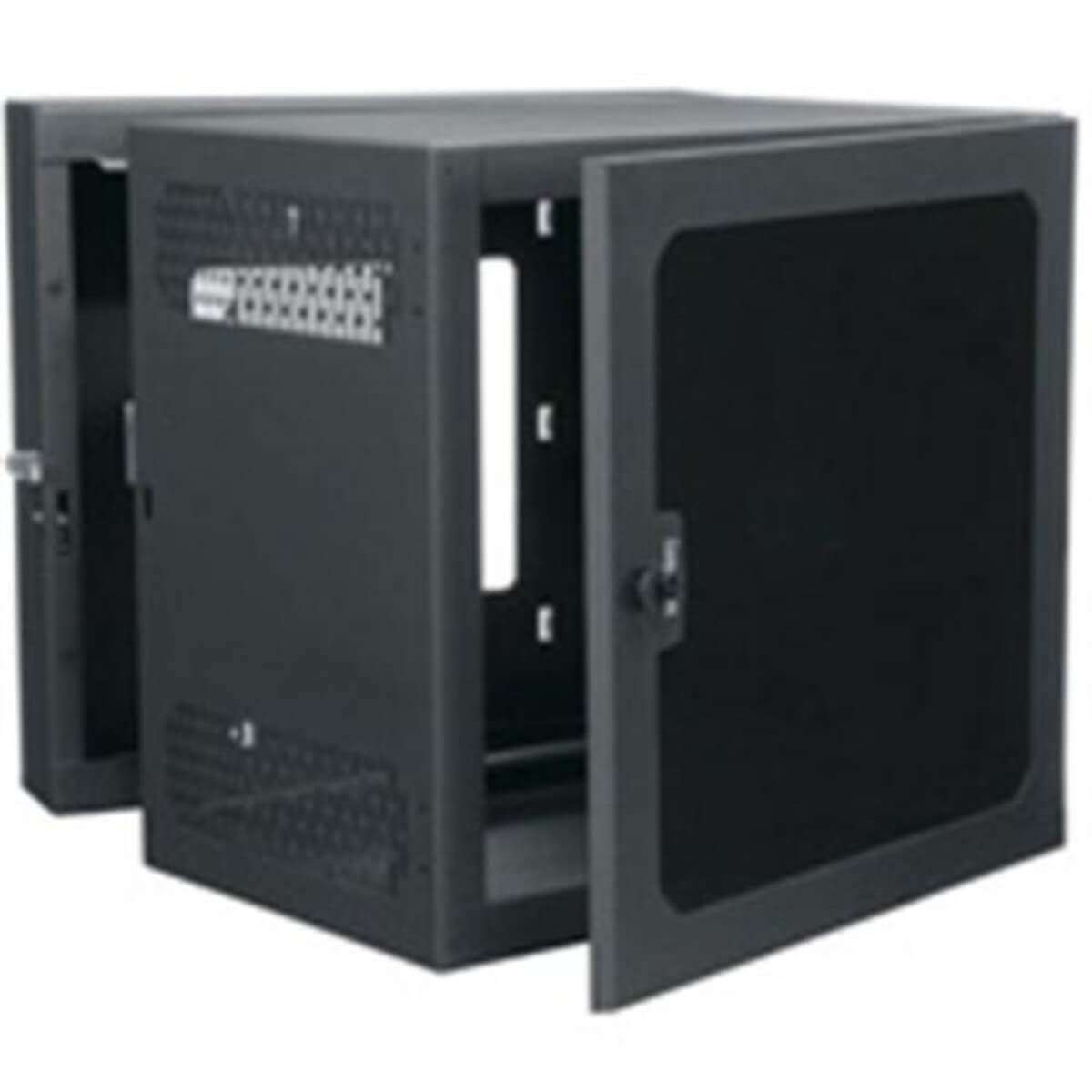

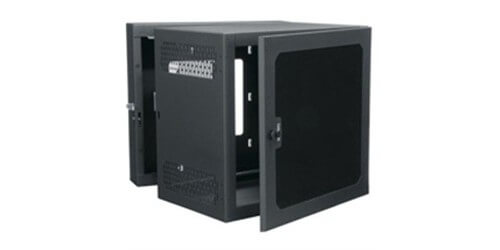

Middle Atlantic CWR-12-22PD
2'DATA WALL CAB,PLEXI DOOR,22"DEEP
- Cable Management
- Form Factor: Wall Mountable
- Product Color: Black
- Product Material: Steel
-Gregory W.
Description
Specifically designed for structured cabling, the CWR is a versatile system for mounting multiple patch panels and other voice/data equipment, where floor and wall space are at a premium.26" width cabinet to allow for much needed space for patching. Comes standard with wide-face rackrail on left and right of cabinet.Locking swing open center section allows for easy front and rear access to equipment and cabling.Includes an easily reversible left or right hand swing locking/latching front door for added security.Bag of 50 mounting screws included.Engineered to facilitate passive thermal management - optional fan kit available when additional heat dissipation is required Cable Management.Ships with front rackrail at 4" setback position to accommodate cable managers. Also accommodates rear rackrail for rear support and cable management.Large opening in backpan for mounting over pull boxes, electrical outlets, etc. Large knockouts for conduit and cable entry.Welded construction provides a 200 lb. weight capacity.UL Listed in the US and Canada.GREENGUARD Indoor Air Quality Certified for Children and Schools (the most strict level).
Specifications
- Height: 24.9"
- Width: 27.4"
- Depth: 22"
- Rack Height: 12U
- Rack Width: 26"
- Rack Depth: 20"
- Assembly Required: No
- Environmentally Friendly: Yes
- Environmental Certification: GREENGUARD
- Limited Warranty: Lifetime
- Limited Warranty: Lifetime
