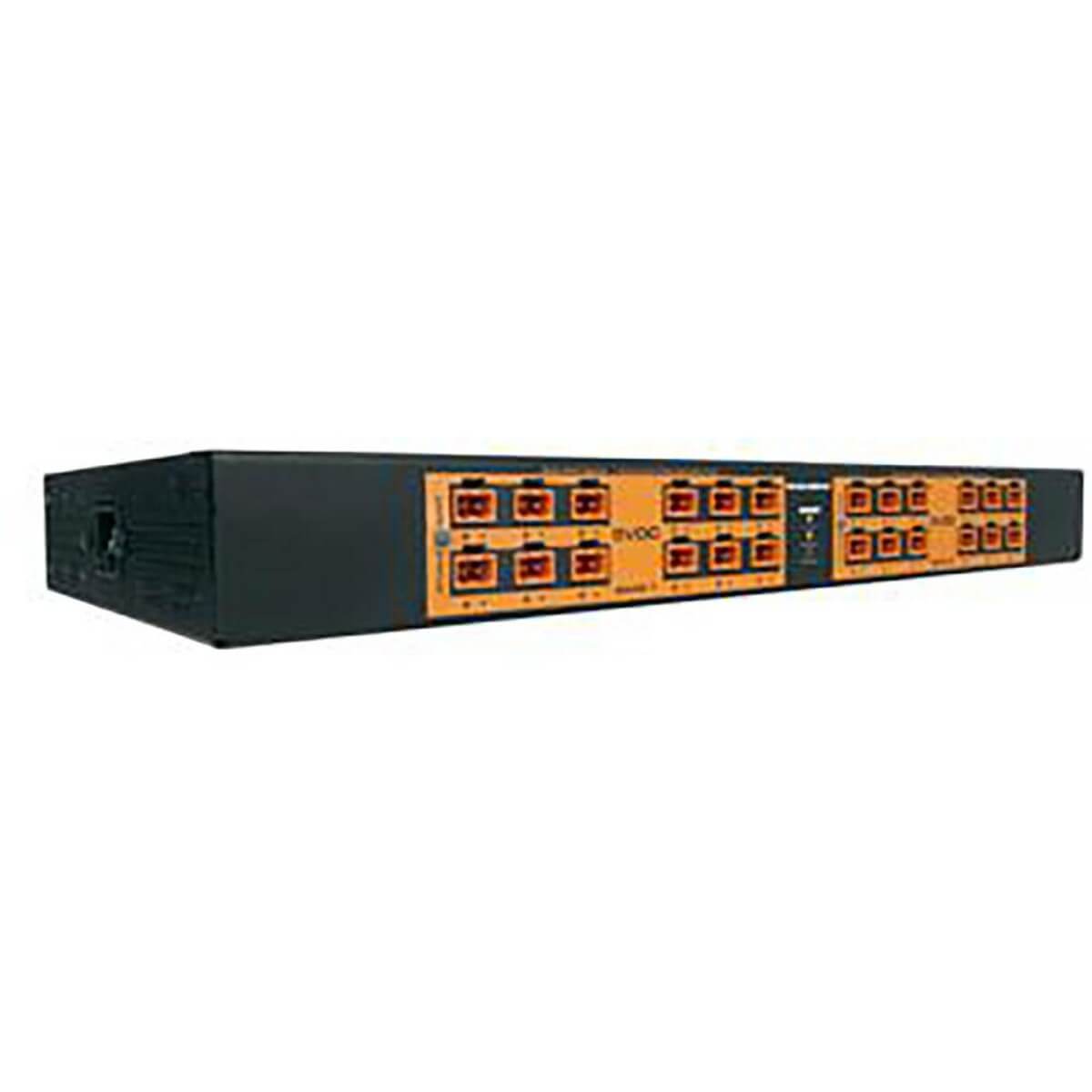

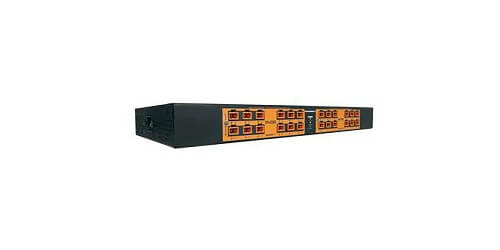

Middle Atlantic PD-DC-200-5V
DC PWR DIST200W5V
- Receptacle Detail: 24
- Protection Type: Overload Protection
- Protection Type: Surge Protection
- Input Voltage: 120 V AC
-Maciej Z.
Description
Optimize any installation with the industry-leading power capacity of the fixed voltage, DC Power Distribution line. These solutions not only remove messy, space-consuming, unreliable wall warts and other power clutter from the design, but also provide maximum power to support a multitude of 5V devices. The 200W unit provides high current capacity to an extensive number of 5V outputs, maximizing the same voltage in the single unit. The multi-mount design can be installed in an available 1RU space or at the back or side of the rack for zero-U mounting, providing ultimate installation flexibility. Promoting enhanced design of system power demands, while still providing a seamless install experience, the 200W DC Power Distribution line is innovatively engineered for multiple applications spanning markets from North America to Europe.
Specifications
- Input Voltage: 230 V AC
- Input Voltage Range: 120 V AC - 230 V AC
- Output Voltage: 5 V DC
- Power Rating (Watt): 200 W
- Input Current: 40 A
- Mount Type: Rack-mountable
- Rack Height: 0U/1U
- Environmentally Friendly: Yes
- Country of Origin: United States
- Country of Origin: United States
