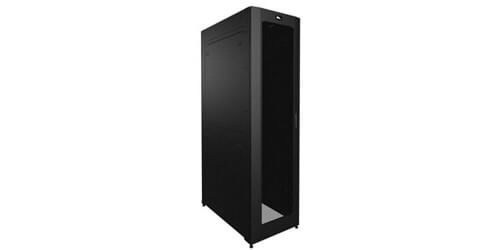

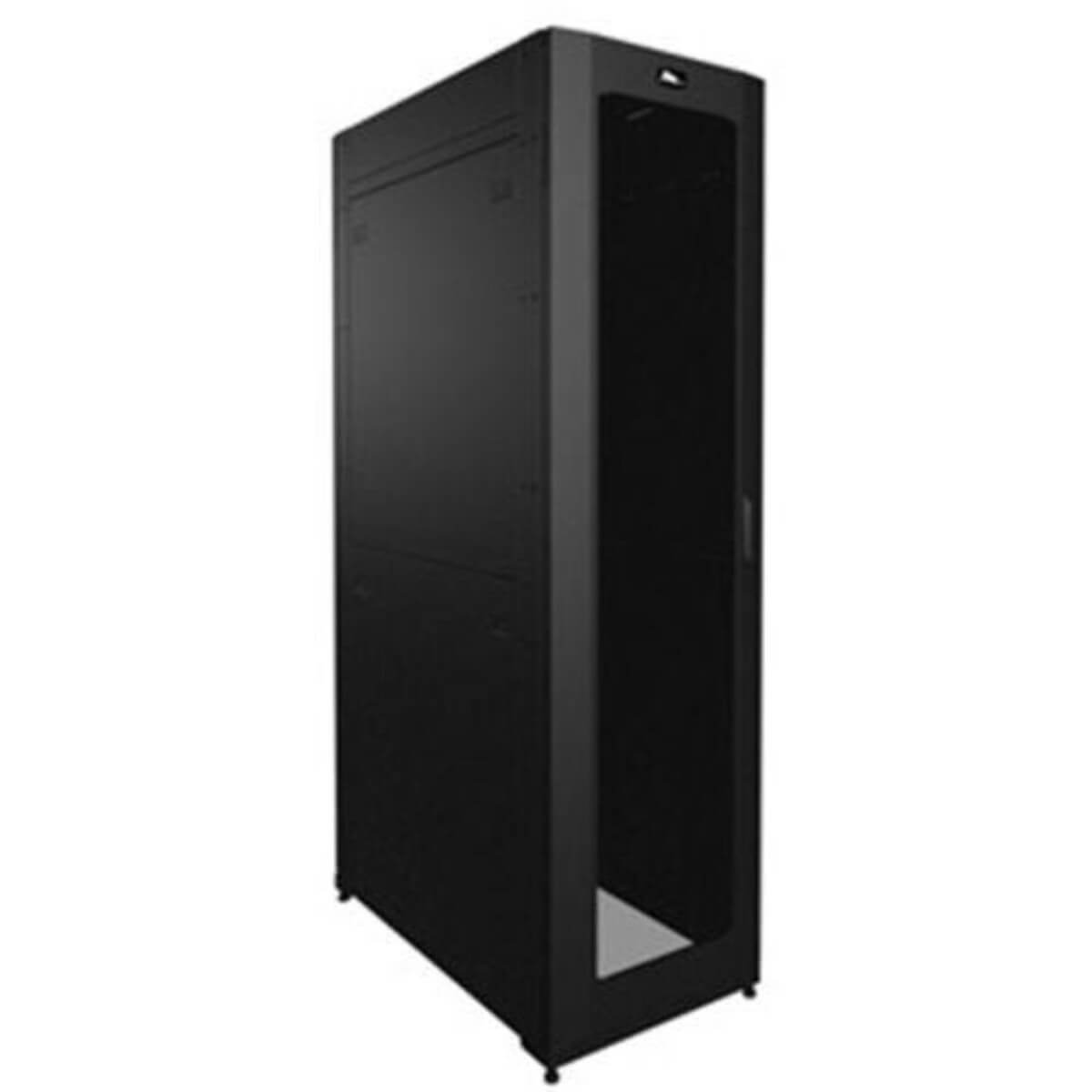

Middle Atlantic
SNE24D-4548-P1
24"W,45SP,48"D CONFIG D,F/R PASSIVE ENCL,BK
- Application/Usage: Server
- Application/Usage: LAN Switch
- Application/Usage: Patch Panel
- Form Factor: Floor Standing
Description
The SNE Series Digital is configured for digital (IP based) security systems consisting of high-density cabling, network equipment, and servers. Optional Tool-Free Lever Lock system accommodates small devices including encoders, power supplies, and Access Control Systems. Fully configured Security Network Enclosure with passive ventilation for data centers o 70% open area vented front door o Pair of split flush mount locking side panels o 2 pair of adjustable cage-nut rackrail (including 6mm hardware) o Lever Lock compatible (accepts all Lever Lock vertical 21" accessories) o 24" width o 48" overall depth o 45 rackspace o 100 6mm cage-nuts/rack screws included SNE Series Digital with passive cooling (front to rear) 70% open area split rear door Solid top with brush cable pass-through Lever Lock compatible (accepts all 21" vertical accessories). Configured for passive front-to-back cooling. Includes 70% open front door and 70% open area split rear door. Includes solid top with brush cable pass-through. UTL/ETL listed and seismic certified. Includes pair of split flush mount locking side panels. Includes 2 pair of adjustable cage-nut rackrail. Includes 100 6mm cage nuts and rack screws. Includes 4 leveling feet. Includes 4 casters.
Specifications
- Product Color: Black Powder Coat
- Product Material: Steel
- Static/Stationary Weight Capacity: 12000 lb
- Height: 84.8"
- Width: 24"
- Depth: 49.2"
- Rack Height: 45U
- Rack Width: 19"
- Rack Depth: 44.48"
- Assembly Required: No
- Environmentally Friendly: Yes
- Environmental Certification: ECO PASSPORT
- Environmental Certification: GREENGUARD Gold
- Limited Warranty: Lifetime
- Environmental Certification: GREENGUARD Gold
