Middle Atlantic
VWM-PD-6-36K-PW
6SP.LOW PROFILE WALL RACK,PLEXI TOP,PUTTY
- Form Factor: Wall Mountable
- Product Color: Putty
- Product Material: Steel
- Product Material: Plexiglass
Description

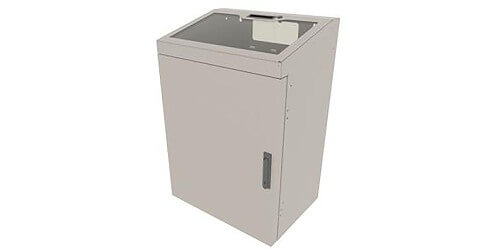

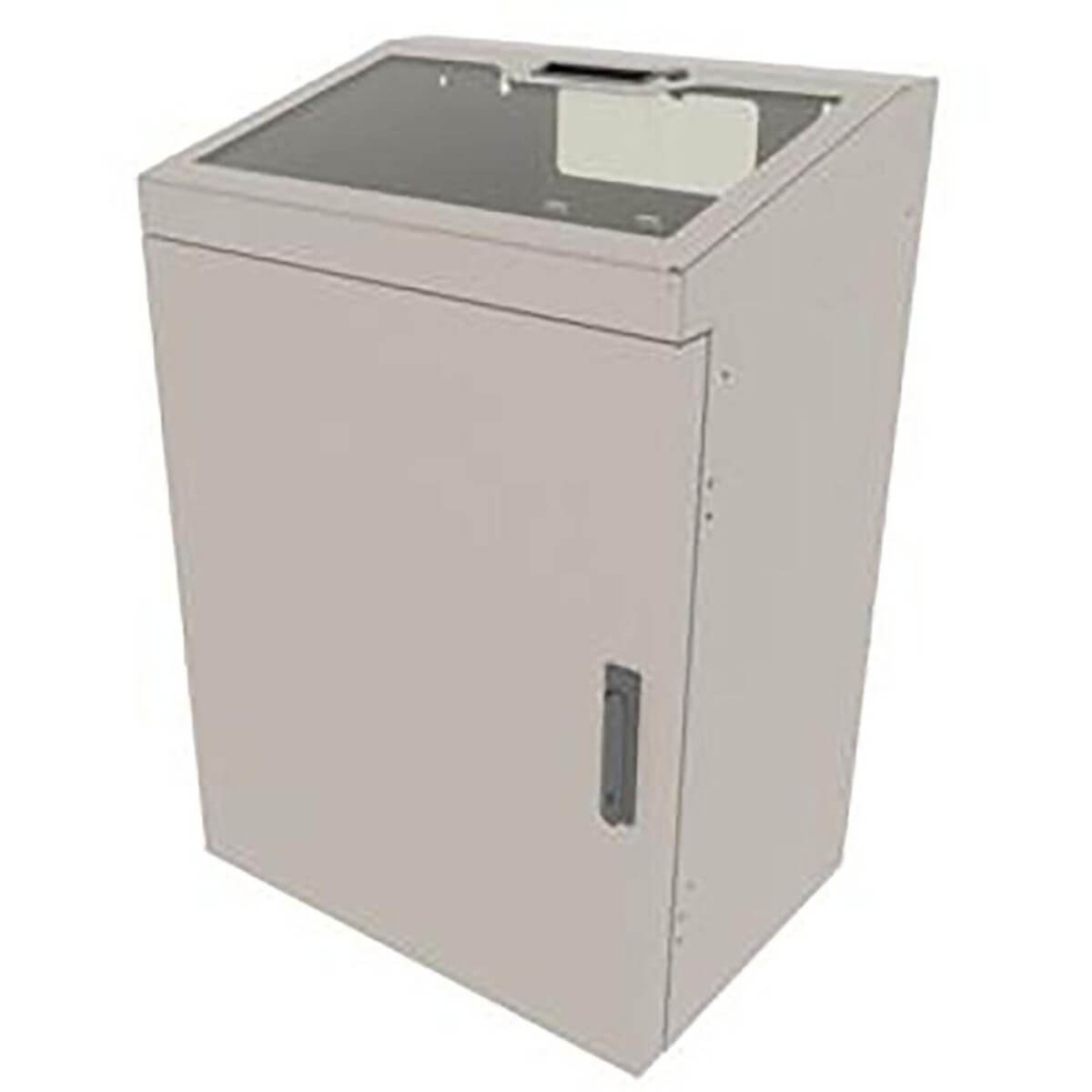

With a low-profile, patent-pending design, this pre-configured VWM Series Wall Cabinet is ideal for vertically mounting deeper equipment in a "knobs-up" orientation with 6 spaces and 30" usable depth. It includes everything needed for a simple solution, but also can support additional customization in Lever Lock small device mounting within the cabinet and/or on the door, thermal management, cable management and power distribution for a complete system that ensures uptime and reliability on the wall. 6 spaces and 30" of usable depth for vertical "knobs up" equipment mounting. Rackrail features both 10-32 thread and cage nut. Flexible position spaces to mount the rackrail where it's needed. Split door with hinged plexiglass top that enables end-user access to controls and visibility Both door and hinged top are lockable and keyed separately for security. . Laser knockouts on the top, bottom and sides for cable entry and thermal management. Integral electrical box simplifies power distribution. Finished in a durable putty colored powder coat.
Specifications
- Maximum Weight Capacity: 150 lb
- Height: 36"
- Width: 25"
- Depth: 18"
- Rack Height: 6U
- Rack Width: 19"
- Assembly Required: No
- Environmentally Friendly: Yes
- Environmental Certification: GREENGUARD Gold
- Environmental Certification: ECO PASSPORT
- Limited Warranty: Lifetime
- Limited Warranty: Lifetime
