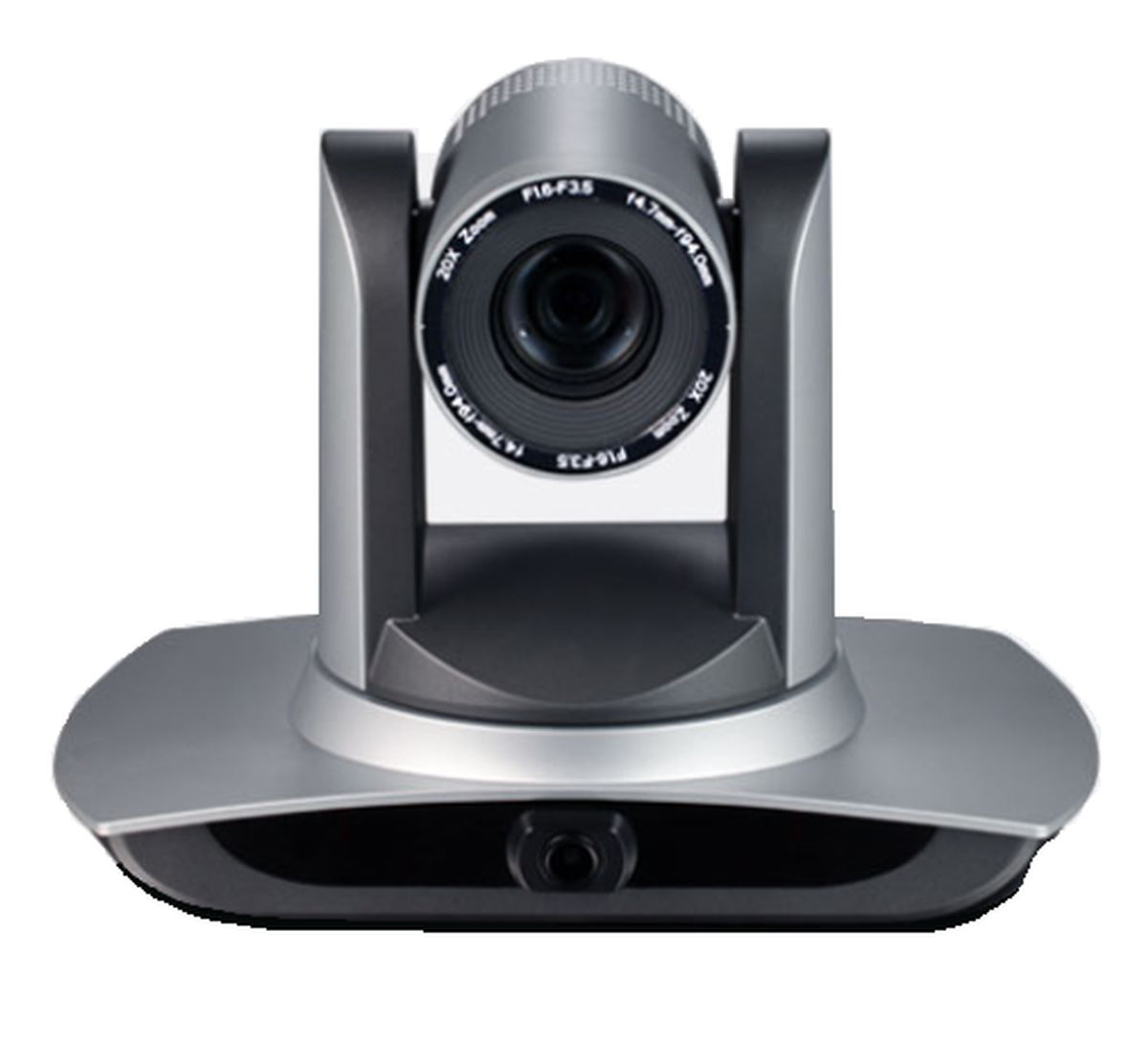

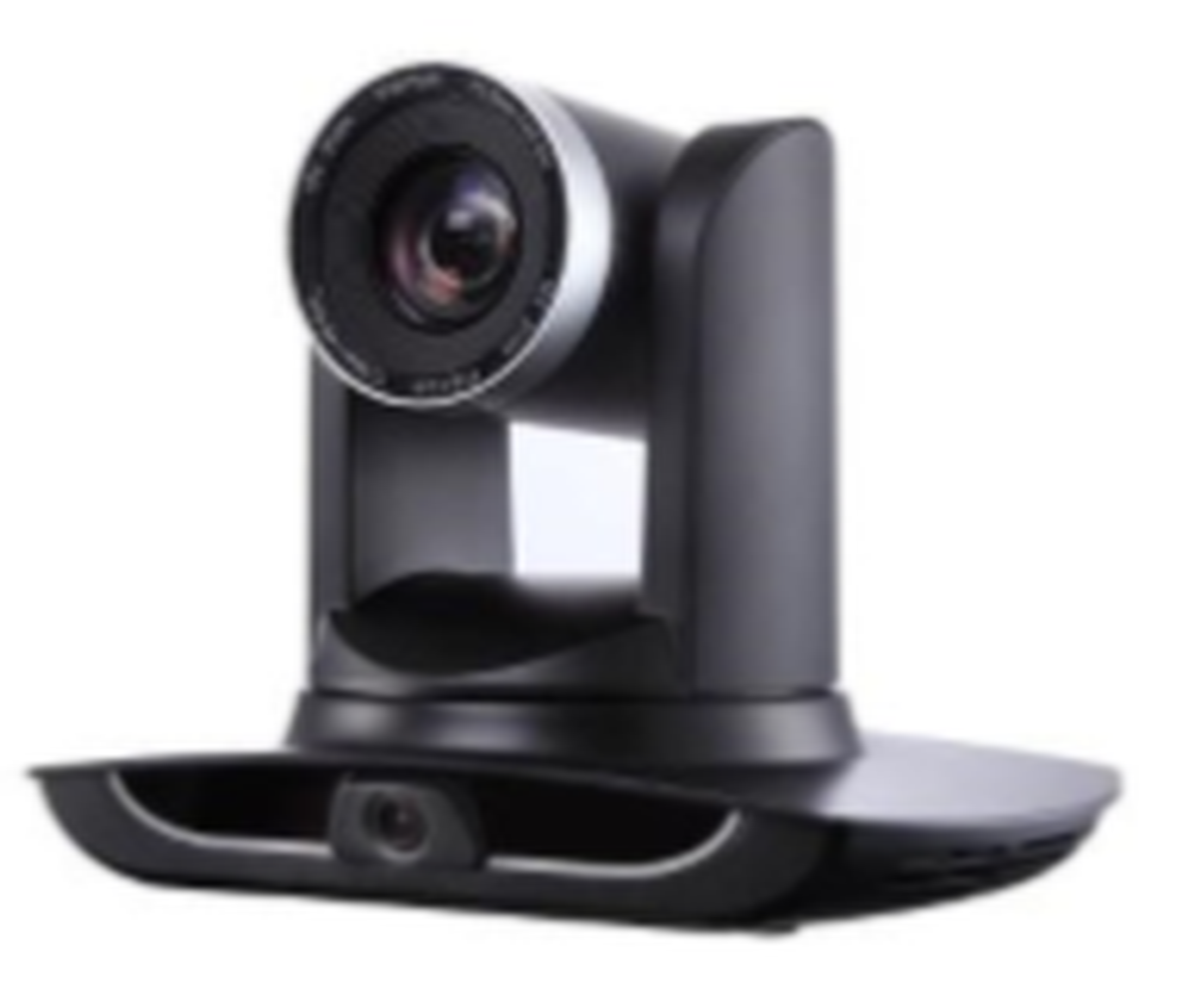

Minrray UV-100T-12
Educational Intelligent Auto-Tracking 12X Zoom Lens Camera

Description

The UV100 series auto-tracking camera is an educational informatization camera. The UV-100T-12 features a 12x zoom lens and a high-speed processor with advanced image processing, as well as algorithm analysis to accurately track lecturer. The advanced image processing algorithm enables high-resolution, accurate depth, and vivid colors.

Additionally, this camera features a wide-dynamic function. It supports 16,000, 32,000, 44,100, and 48,000 sampling frequency, as well as AAC, MP3, and PCM audio-coding. This camera also uses a high-quality CMOS sensor that ensures the camera performs quietly, with a high signal-to-noise ratio. Other key features of this camera include the following:

• Panoramic camera with advanced auto-tracking capabilities
• Adjustable tracking sensitivity
• Camera tracking is not affected by the disturbances of other moving objects, nor classroom’s size, shape, or seating arrangement
• Camera assesses the distance of tracking target, and it automatically zooms and maintains appropriate size and proportion
• Ultra-wide dynamic exposure function ensure target tracking under the strong light background of projectors

Specifications

• f 3.9~46.1mm
• View Angle: 6.3 (tele)~72.5 (wide)
• Focus: Auto/Manual
• Aperture: Auto/Manual
• Electronic Shutter: Auto/Manual
• BLC: ON/OFF
• WDR: OFF/Dynamic Range adjustment
• Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, Gamma curve
• SNR: >55dB
• Panoramic Camera Sensor: 1/3 inch high-quality HD CMOS sensor
• Effective Pixels: 2.1 megapixel
• Lens: Manual Focus
• View Angle (D/H/V): 122 /98 /73
• Application: Indoor
• Remote Maintenance (LAN): Remote Update, Remote Reboot, Remote Reset
• Accessory: 12V/2.5A power supply adapter, RS232 control cable, Remote Controller, User Manual, Warranty Card, brackets (optional)
• Warranty: 2 years

Downloads

• Minrray UV-100T-12 Specifications (PDF)
