Minrray UV150T-S20
Educational Student Binocular Camera, 20x Optical Zoom

Description

The UV150 series camera is an educational student binocular camera. The UV150T-S20 features a 20x zoom lens and a high-speed processor with advanced image processing, as well as algorithm analysis to accurately track lecturer. The advanced image processing algorithm enables high-resolution, accurate depth, and vivid colors.

Additionally, this camera features a panoramic function that also provides tracking capabilities. It supports 8,000, 16,000, 32,000, 44,100, and 48,000 sampling frequency, as well as AAC, MP3, and G.711A audio coding. This camera also uses a high-quality CMOS sensor that ensures the camera performs quietly, with a high signal-to-noise ratio. Other key features of this camera include the following:

• Panoramic camera with advanced auto-tracking capabilities
• 72.5-degree wide-angle view
• Auto-focus algorithm for fast, accurate, and stable focusing

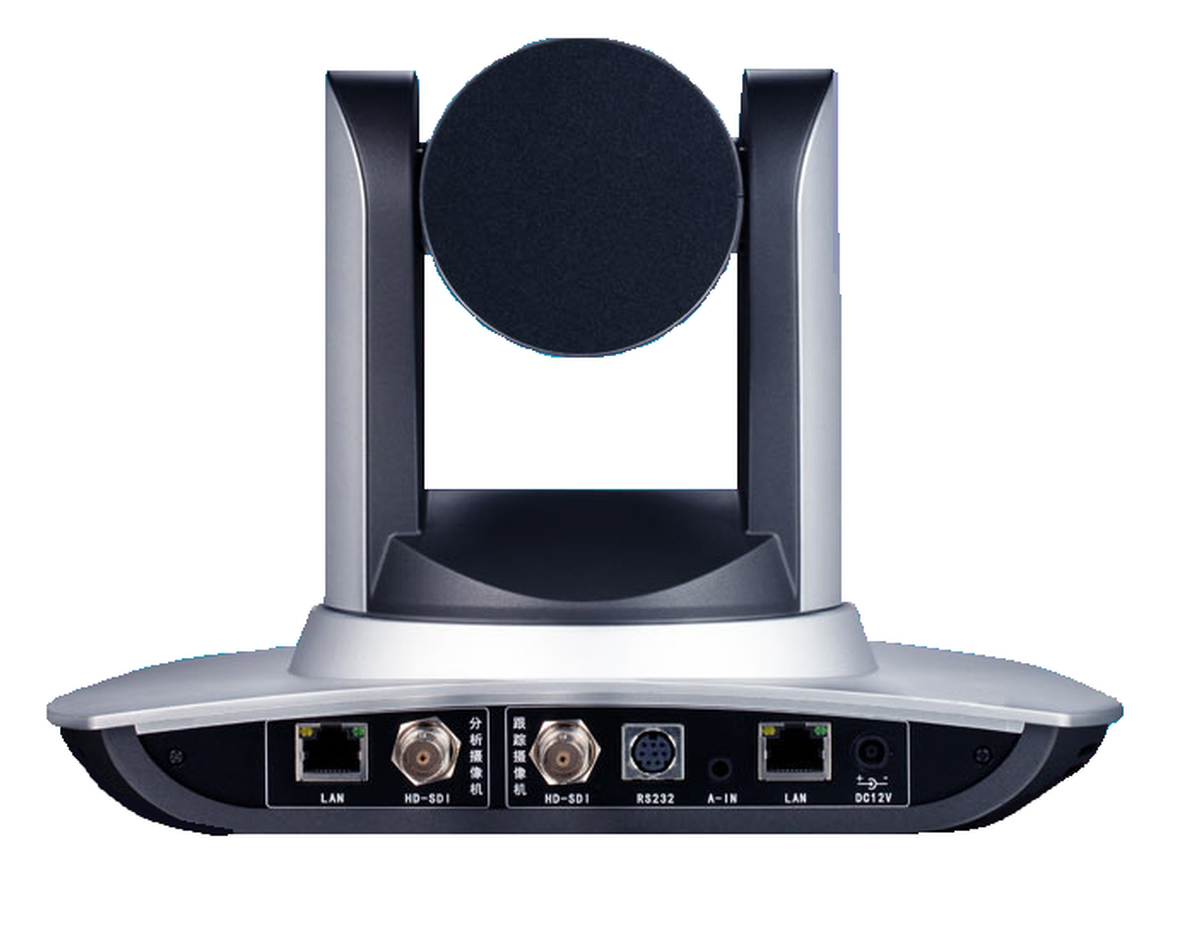

• Supports SDI and LAN
• SDI supports to transmit 1080P60 signal 100 meters

Specifications

• f 4.7~94mm
• View Angle: 2.9 (tele)~55.4 (wide)
• Iris: F1.6 ~ F3.5
• Digital Zoom: X10
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• Digital Noise Reduction: 2D 3D digital noise reduction
• White Balance: Manual / Auto / One Push / 3000K / 4000K / 5000K / 6000K / 6500K / 7000K
• Focus: Auto/ManualA-Key Fcous
• Aperture: Auto/Manual
• Electronic Shutter: Auto/Manual
• BLC: ON/OFF
• WDR: OFF/Dynamic Level adjustment
• Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
• SNR: >55dB
• Panoramic Camera Sensor: 1/2.8 inch high-quality HD CMOS sensor
• Effective Pixels: 2.07 megapixel
• Lens: Manual Focus
• 4mm View Angle (D/H/V): 89.6 \71 \52.2
• 6mm View Angle (D/H/V) : 67.0 \59 \32.5
• Video Interface: SDI, LAN
• Network Interface: 100M(10/100BASE-TX)

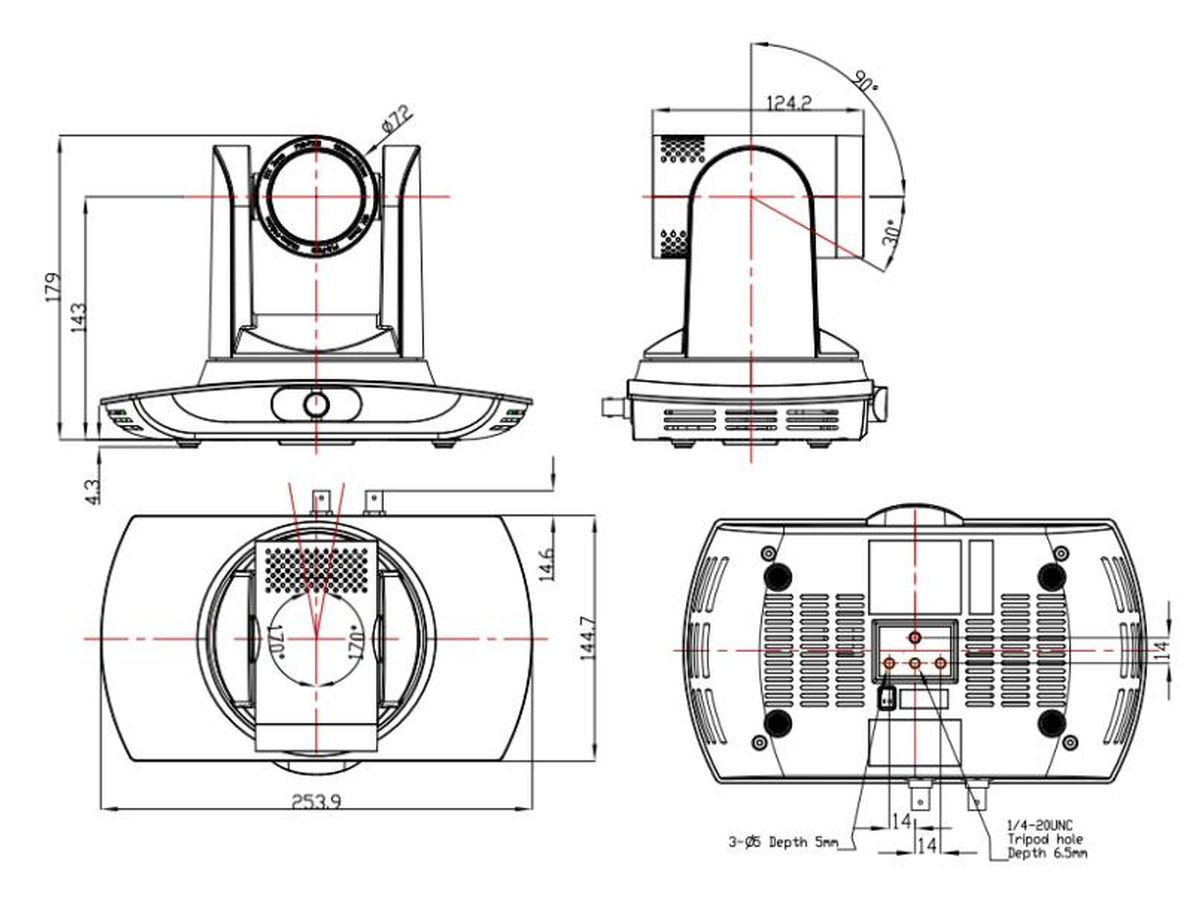

• Dimension(WxHxW): 254mmX144mmX174mm
• Weight(appr.): 1.54kg
• Application: Indoor
• Warranty: 2 years

Downloads

• Minrray UV150T-S20 Specifications (PDF)
