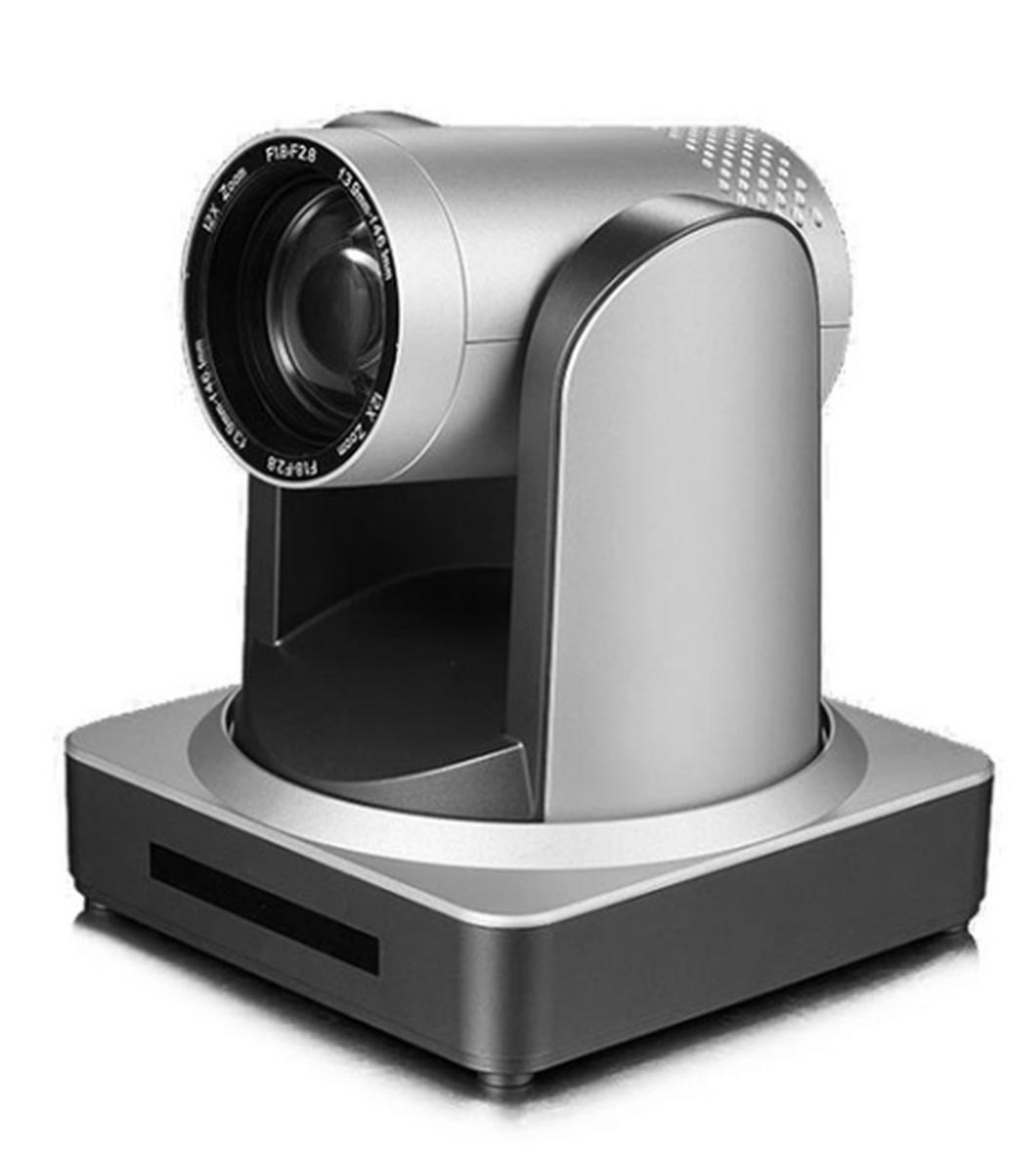

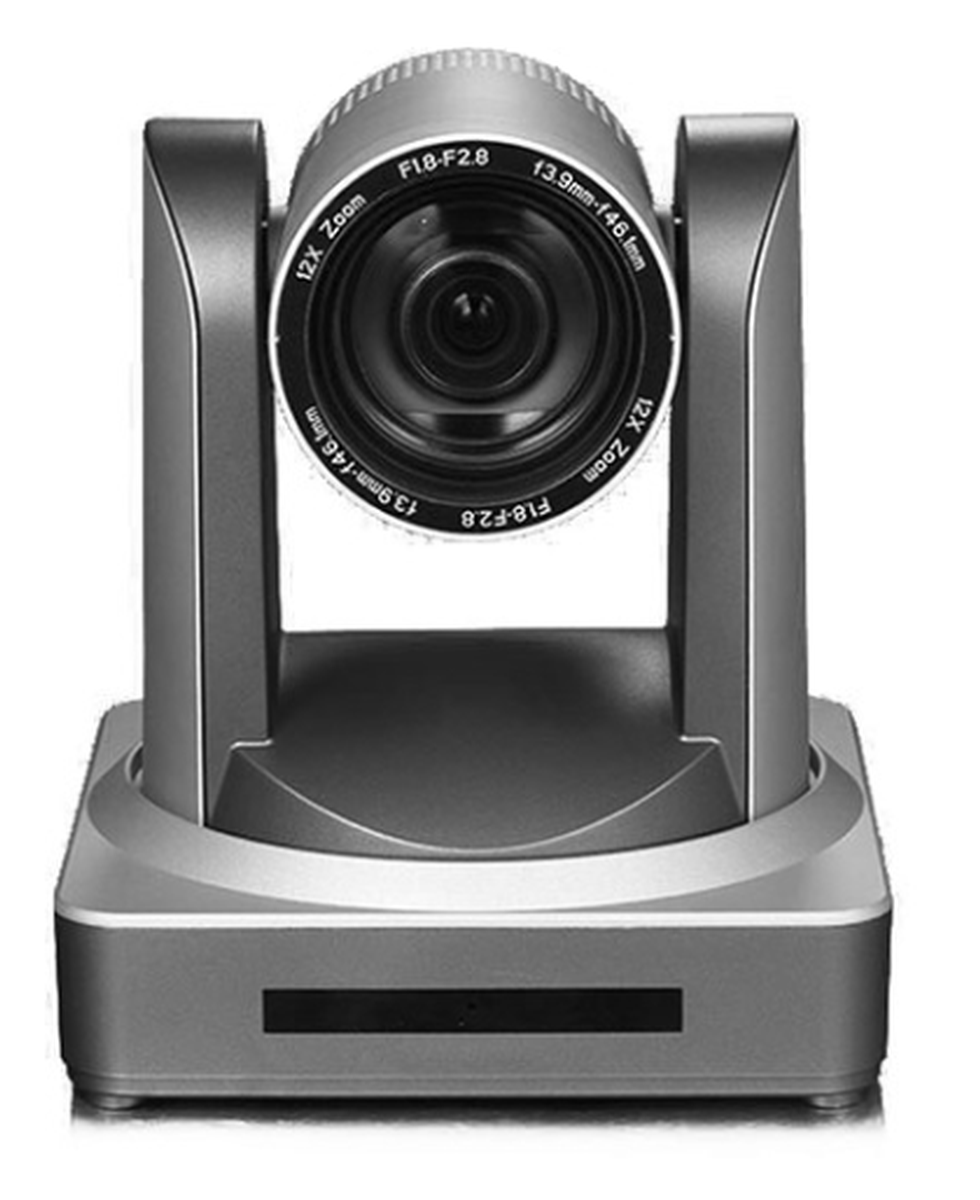

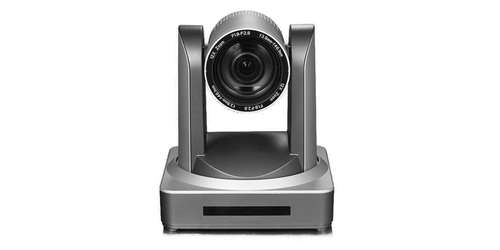

Minrray UV510A-12-ST-POE-IR
PTZ Camera 12x Optical Zoom, HD-SDI, HDMI, PoE, Audio

Description

Minrray's UV510A-12-ST-POE-IR is a pan, tilt, zoom camera 12x optical zoom, standard interface, Power over Ethernet, and IR remote. It features an advanced processing algorithm, which enables high-resolution, accurate depth, and vivid colors. This camera supports H.264/265 encoding, ensuring that your image doesn't suffer when in low-bandwidth environments. This PTZ camera also uses a high-quality CMOS sensor that supports resolutions up to 1920x1080 and 60pfs frame rate. The CMOS sensor also ensures that the camera performs quietly, with a high signal-to-noise ratio.

The camera features auto-focus technology, making clear, stable images easy to capture. Other key features of the Minrray UV510A-12-ST-POE-IR include the following:

• Supports 16000, 32000, 44100, 48000 sampling frequency
• Supports AAC, MP3, PCM audio coding
• Supports H.264/H.265 video compression, AAC, MP3, and PCM audio compression
• Supports multiple network protocols, such as ONVIF, RTSP, RTMP
• Supports real-time messaging protocol (RTMP) push mode, easy to link streaming media server (Wowza,FMS)
• RS-232 cascade function for convenient installation
• Low-power sleep function with power consumption lower than 400mW in sleep mode

Specifications

• Effective Pixels: 16: 9, 2.07 megapixel
• Video Format: HDMI/SDI/HDBaseT video format Resolutions: Up to 1080P60/50/30/25/59.94/29.97
• View Angle: 6.3 (tele) 72.5 (wide)
• AV: F1.8 F2.4
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• DNR: 2D and 3D DNR
• White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
• Focus/Aperture/Electronic Shutter: Auto/Manual
• BLC: ON/OFF
• WDR: OFF/ Dynamic level adjustment
• Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode

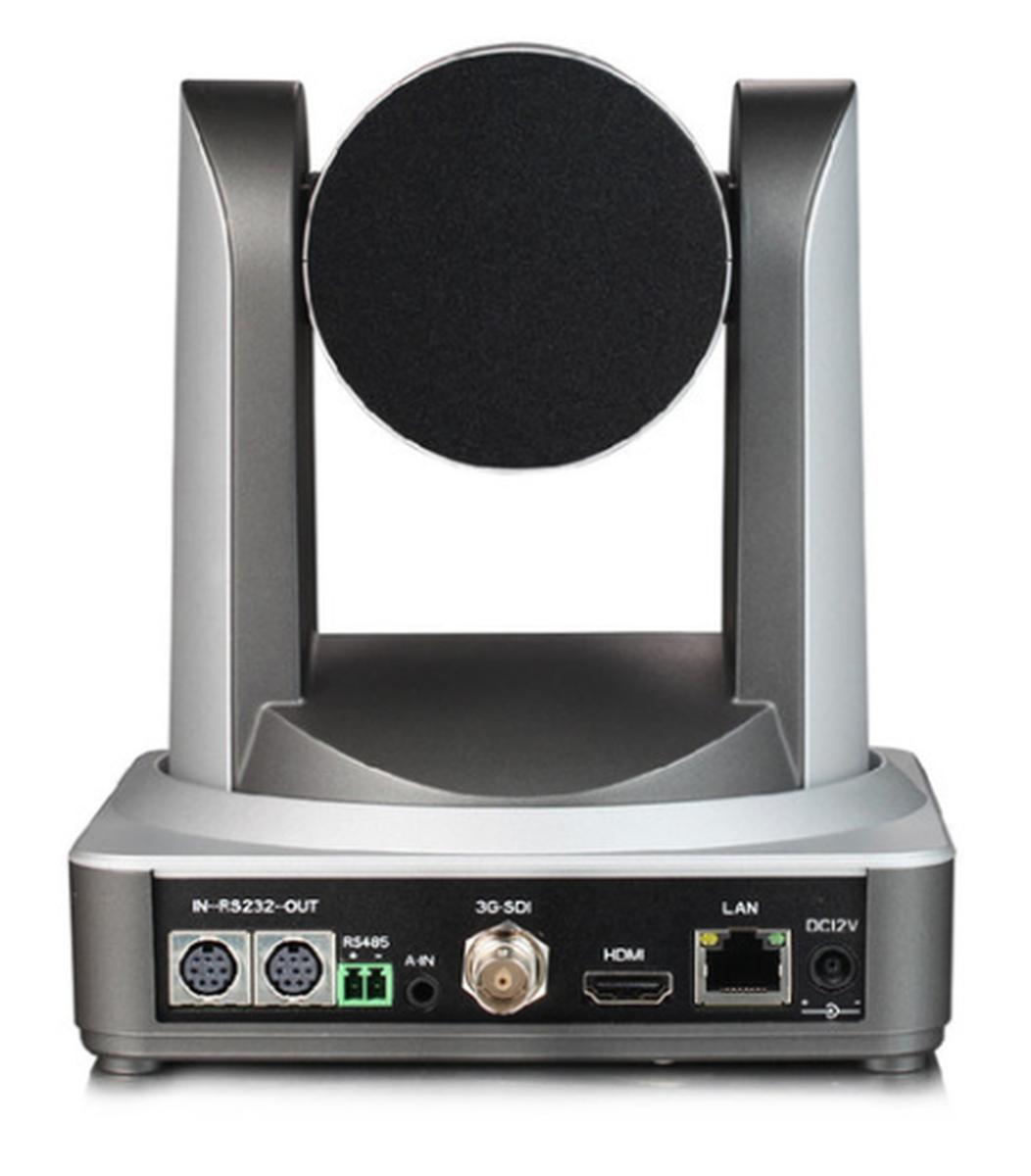

• Video Interfaces: SDI, HDMI, LAN, RS232 (In & Out), RS485, A-IN
• Video Compression Format: H.264, H.265, Dual stream output
• Audio Input Interface: Double track 3.5mm linear input
• Audio Compression Format: AAC/MP3/PCM Audio compression
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181
• Power Interface: HEC3800 Outlet (DC12V)
• Pan/Tilt Rotation: 170 ,-30 +90
• Pan Control Speed: 0.1 60 /sec
• Tilt Control Speed: 0.1 30 /sec
• Preset Speed Pan: 60 /sec, Tilt: 30 /sec
• Preset Number: 255 presets (10 presets by remote controller)
• Supply Adapter: AC110V-AC220V to DC12V/1.5A

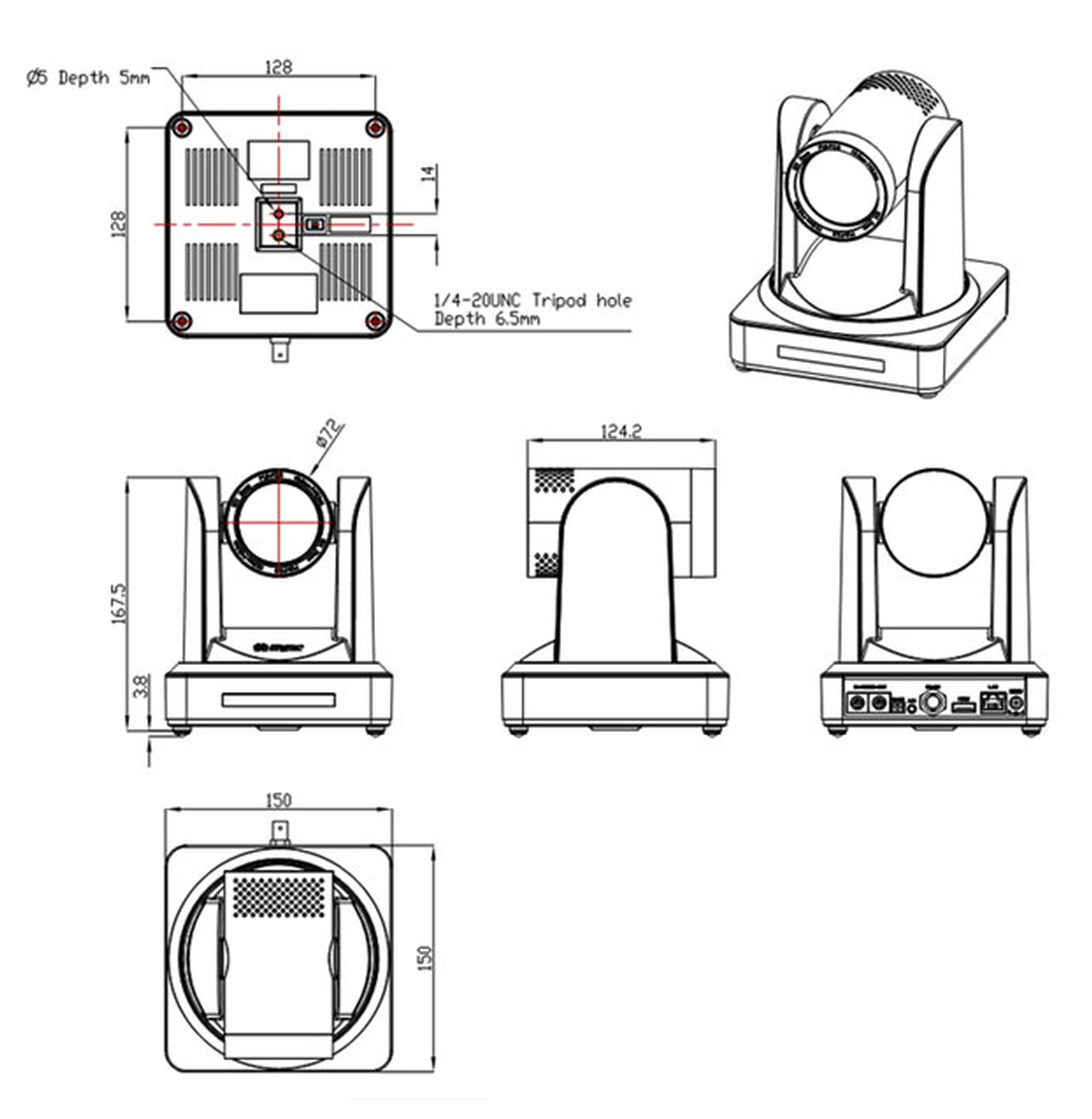

• Dimension: 150mmX150mmX167.5mm
• Weight: 1.4KG
• Remote Operation (IP): Remote Upgrade, Reboot and Reset
• Warranty: 2 years

Downloads

• Minrray UV510A-12-ST-POE-IR Specifications (PDF)
• Minrray UV510A-12-ST-POE-IR Manual (PDF)
