Minrray UV510A-12-U3-IR
PTZ PTZ Camera 12x Optical Zoom, USB3.0, RS-232, Audio In

Description

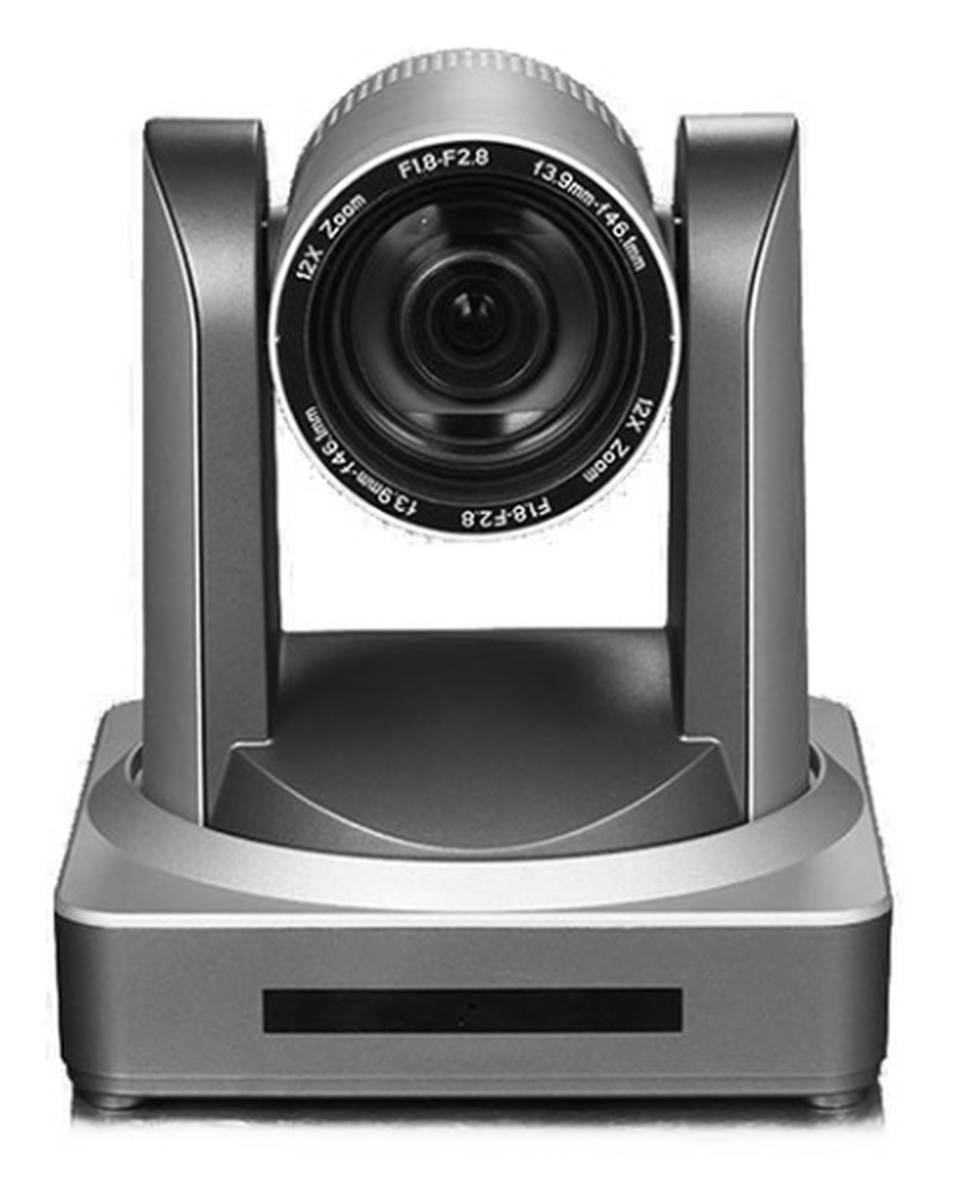

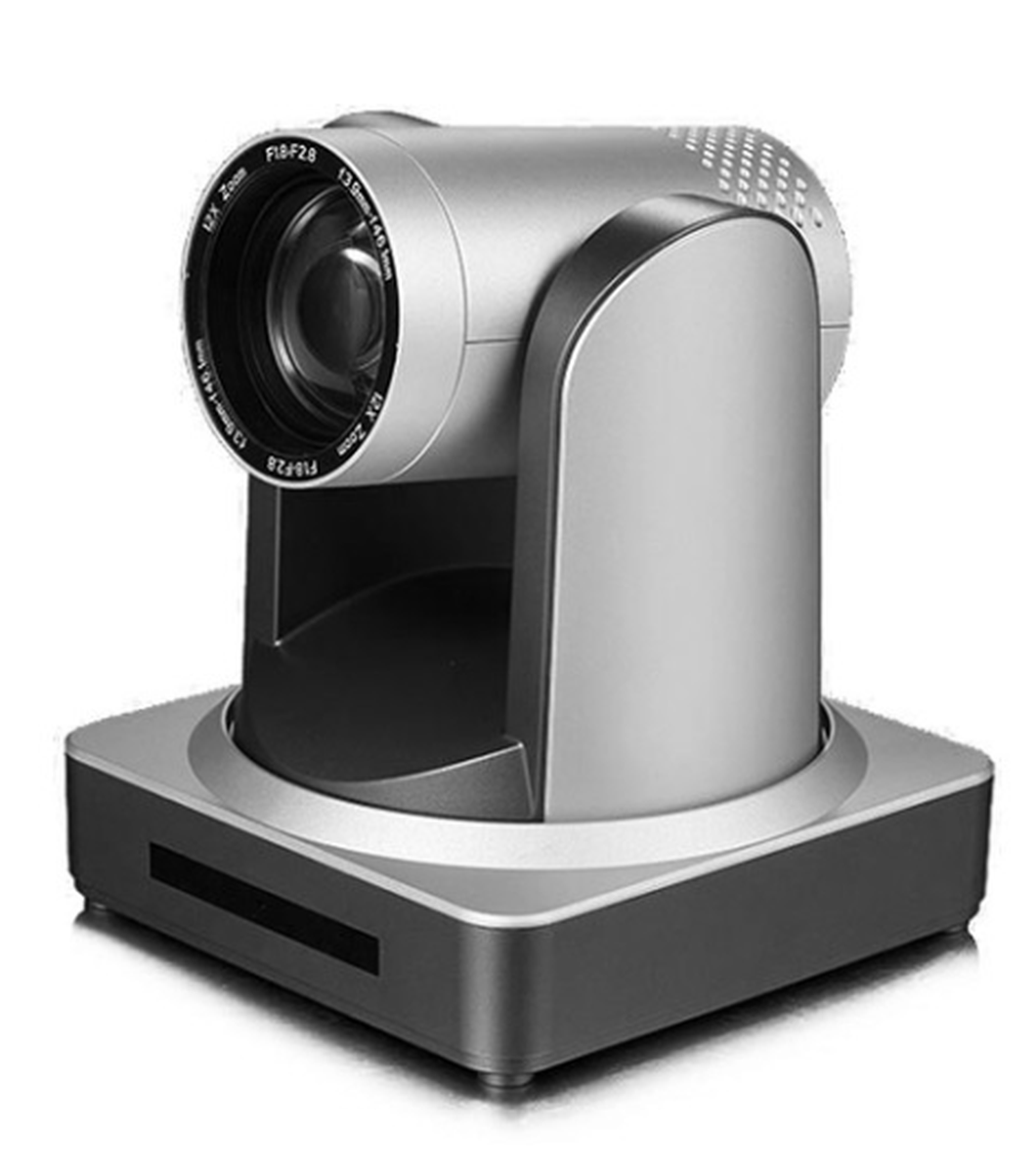

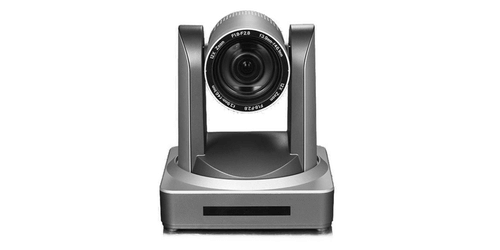

Minrray's UV510A-12-U3-IR is a pan, tilt, zoom camera with 12x optical zoom, USB3.0 interface, and IR remote. It features an advanced image processing algorithm, which enables high-resolution, accurate depth, and vivid colors. This camera supports H.264/265 encoding, ensuring that your image doesn't suffer when in low-bandwidth environments. This PTZ camera also uses a high-quality CMOS sensor that supports resolutions up to 1920x1080 and 60pfs frame rate. The CMOS sensor also ensures that the camera performs quietly, with a high signal-to-noise ratio.

The camera features auto-focus technology, making clear, stable images easy to capture. Other key features of the Minrray UV510A-12-U3-IR include the following:

• Supports 16000, 32000, 44100, 48000 sampling frequency
• Supports AAC, MP3, PCM audio coding
• Supports H.264/H.265 video compression, AAC, MP3, and PCM audio compression
• Supports multiple network protocols, such as ONVIF, RTSP, RTMP
• Supports real-time messaging protocol (RTMP) push mode, easy to link streaming media server (Wowza,FMS)
• RS-232 cascade function for convenient installation
• Low-power sleep function with power consumption lower than 400mW in sleep mode

Specifications

• Video Format: HDMI/SDI/HDBaseT video format Resolutions: Up to 1080P60/50/30/25/59.94/29.97
• View Angle: 6.3 (tele) 72.5 (wide)
• AV: F1.8 F2.4
• Digital Zoom: 10X
• Minimum Illumination: 0.5Lux (F1.8, AGC ON)
• DNR: 2D and 3D DNR
• White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
• Focus/Aperture/Electronic Shutter: Auto/Manual
• BLC: ON/OFF
• WDR: OFF/ Dynamic level adjustment
• Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
• SNR: >55dB

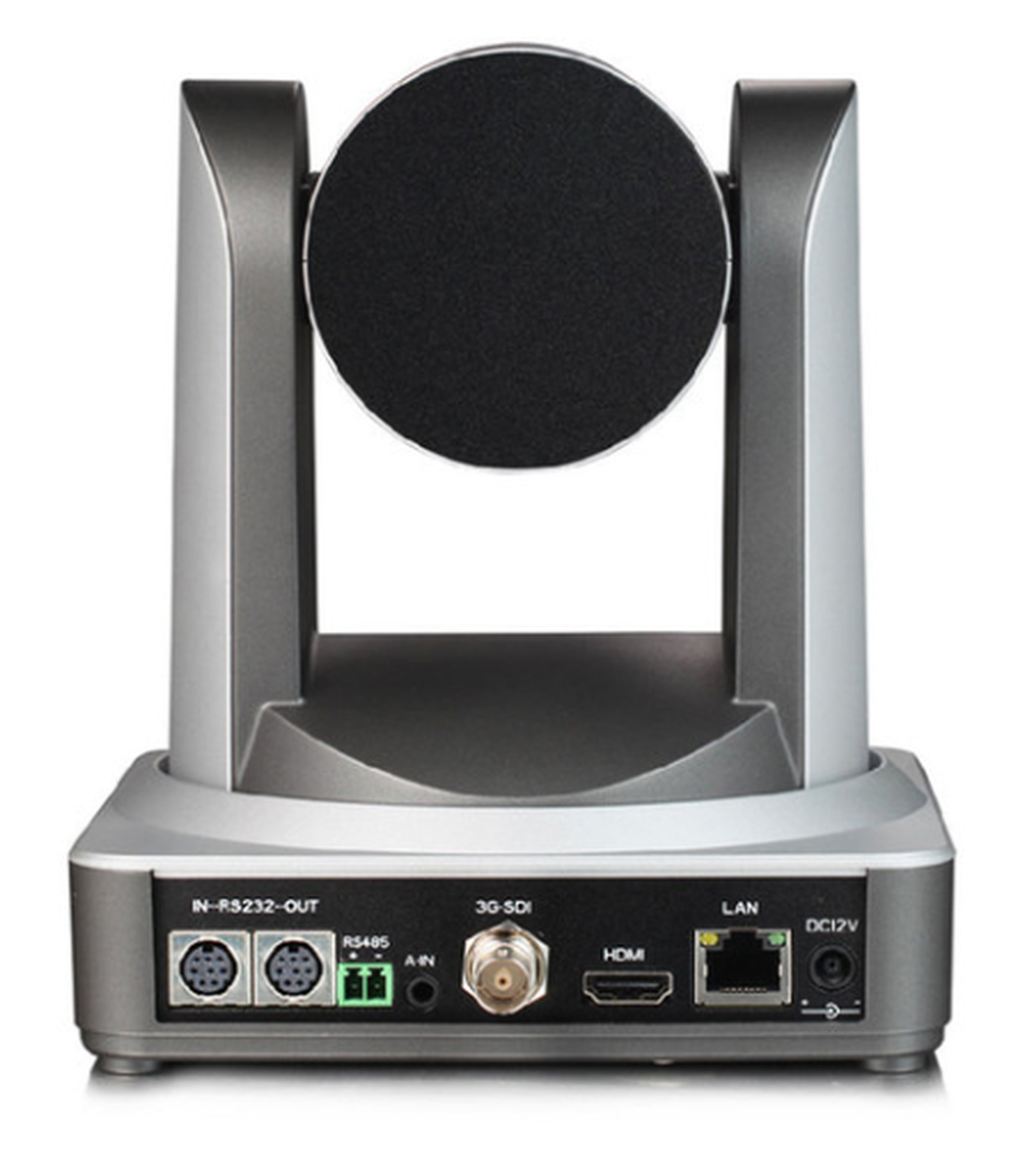

• Video Interfaces: USB3.0, LAN, RS232 (In & Out), A-IN
• Network Protocol: RTSP, RTMP, ONVIF, GB/T28181
• Power Interface: HEC3800 Outlet (DC12V)
• Pan/Tilt Rotation: 170 ,-30 +90
• Pan Control Speed: 0.1 60 /sec
• Tilt Control Speed: 0.1 30 /sec
• Preset Speed Pan: 60 /sec, Tilt: 30 /sec
• Preset Number: 255 presets (10 presets by remote controller)
• Supply Adapter: AC110V-AC220V to DC12V/1.5A

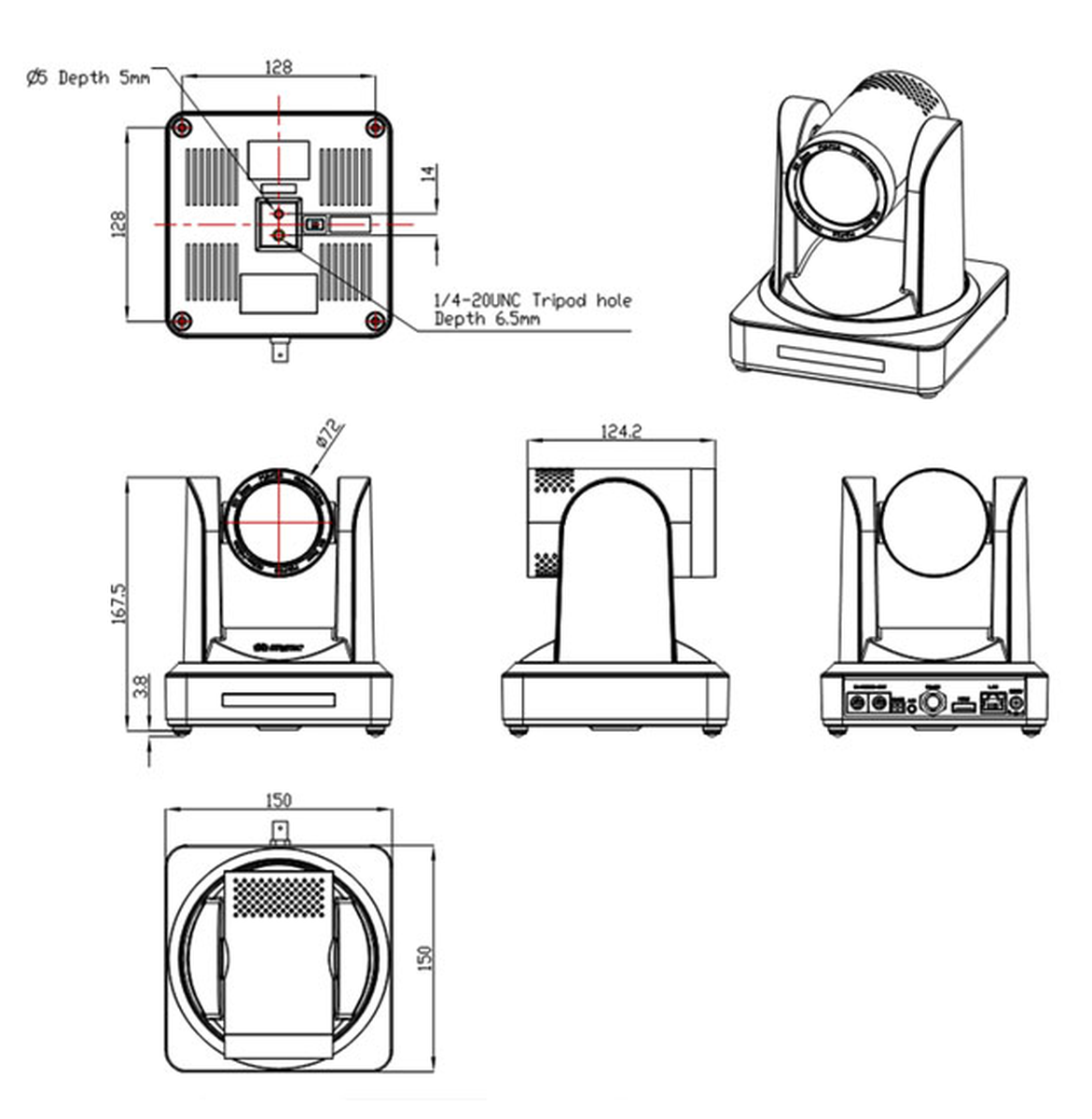

• Dimension: 150mmX150mmX167.5mm
• Weight: 1.4KG
• Remote Operation (IP): Remote Upgrade, Reboot and Reset
• Warranty: 2 years

Downloads

• Minrray UV510A-12-U3-IR Specifications (PDF)
• Minrray UV510A-12-U3-IR Manual (PDF)
