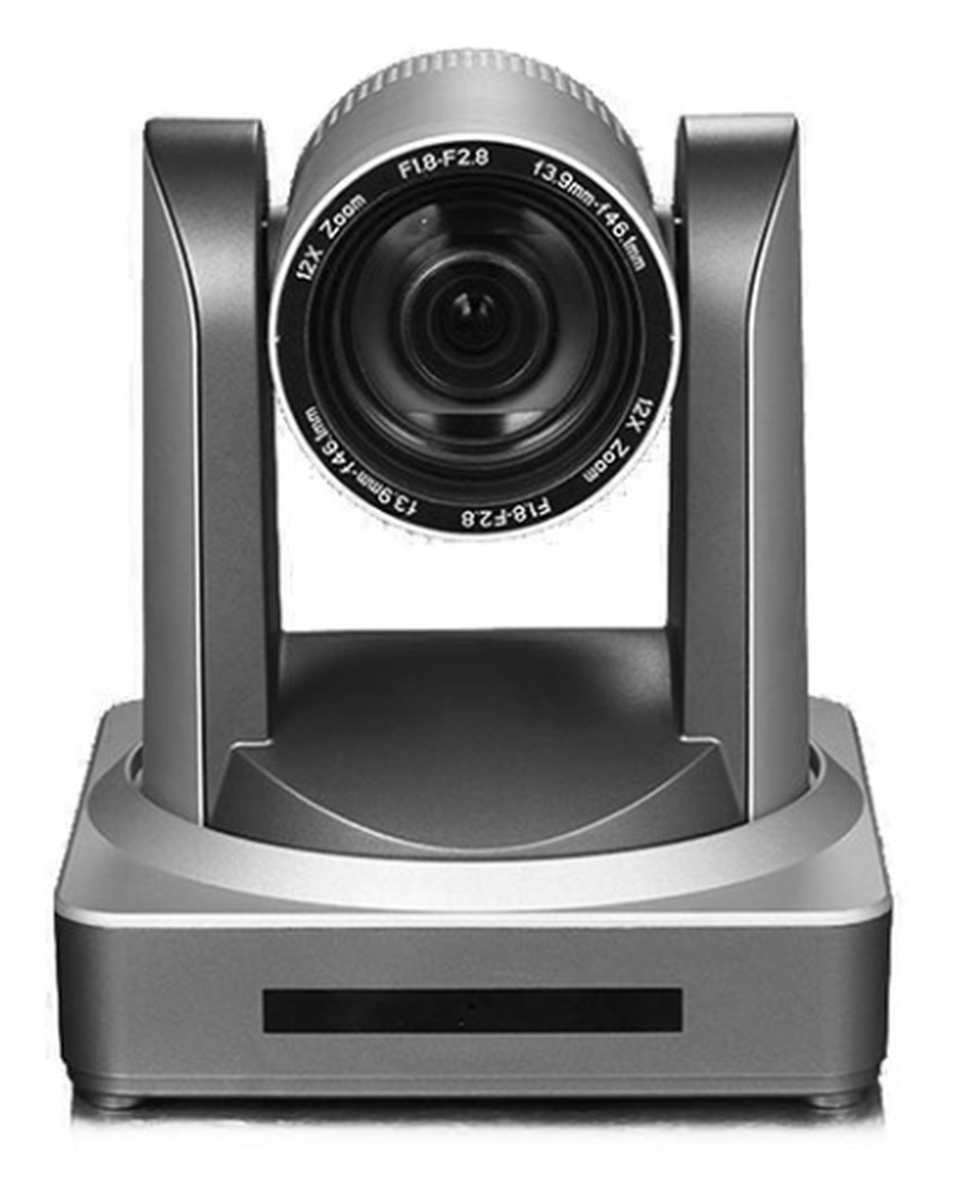

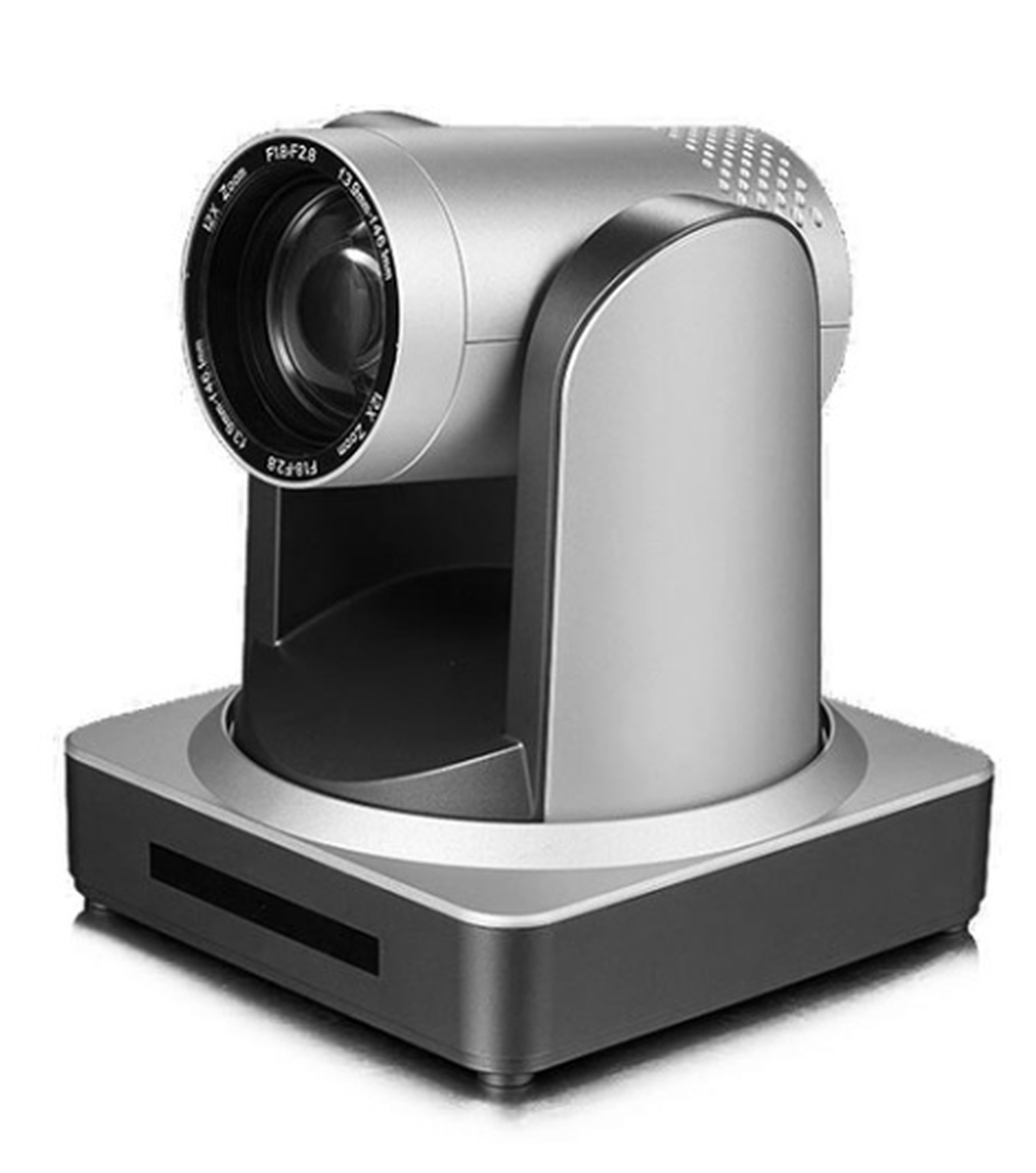

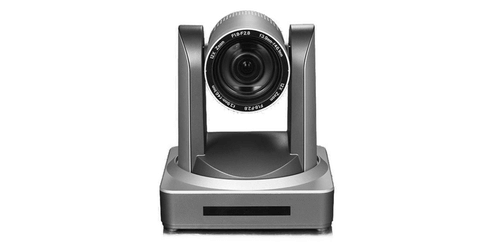

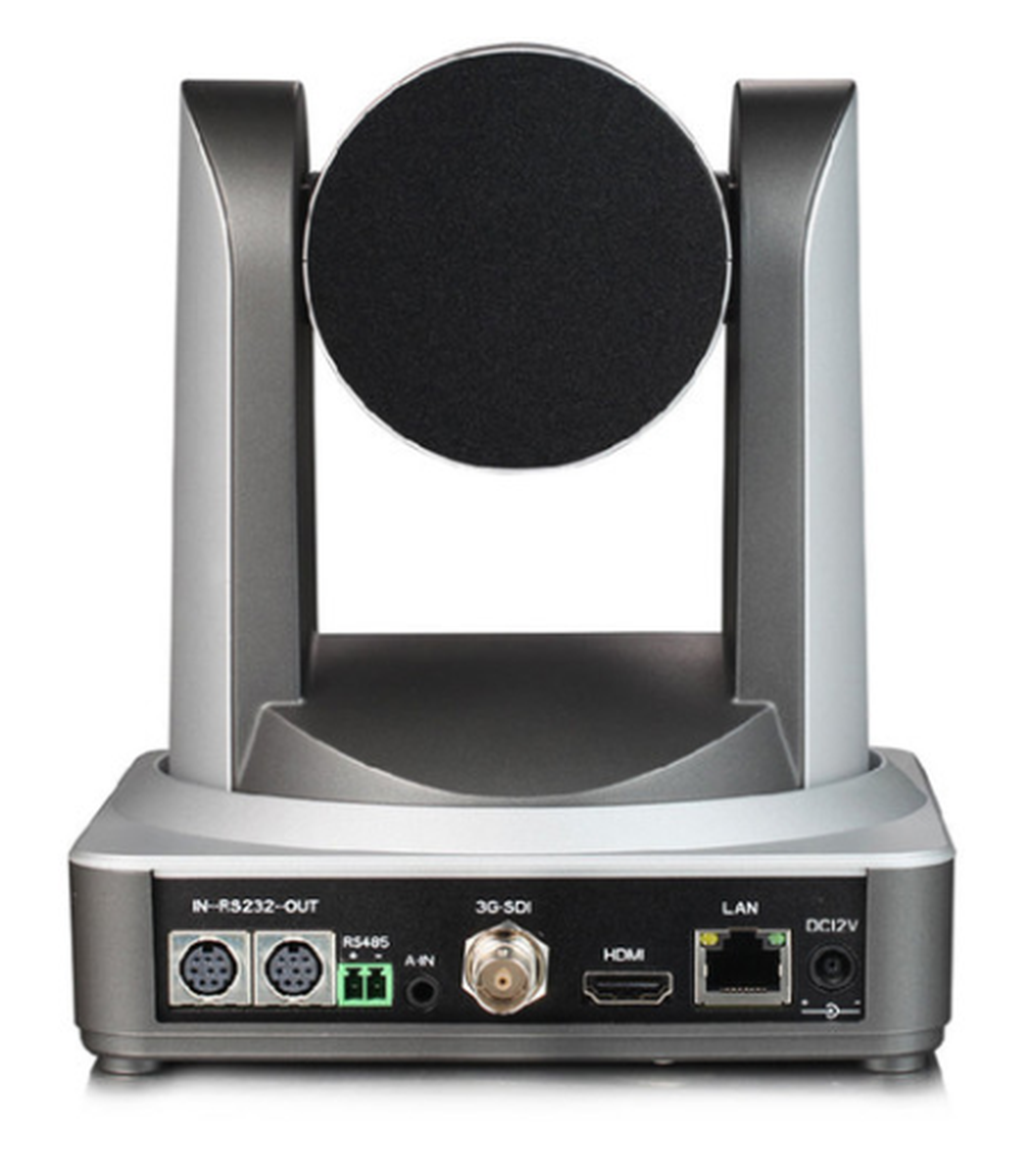

Minrray UV510A-5-U3-IR
PTZ PTZ Camera 5x Optical Zoom, USB3.0, RS-232, Audio In
Manufacturer SKU: MIN-UV510A5U3IR
Satisfaction Guaranteed!
MSRP: $1,015.68
Our Price:
$751.90
Top UV510A-5-U3-IR Specifications
- Optical Zoom: 5X
- f = 3.6 ~ 18mm
- Sensor: 1/2.8 inch high quality HD CMOS sensor
- Effective Pixels: 16: 9, 2.07 megapixel
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Minrray's UV510A-5-U3-IR is a pan, tilt, zoom camera with 5x optical zoom, USB3.0 interface, and IR remote. It features an advanced image processing algorithm, which enables high-resolution, accurate depth, and vivid colors. This camera supports H.264/265 encoding, ensuring that your image doesn't suffer when in low-bandwidth environments. This PTZ camera also uses a high-quality CMOS sensor that supports resolutions up to 1920x1080 and 60pfs frame rate. The CMOS sensor also ensures that the camera performs quietly, with a high signal-to-noise ratio.
The camera features auto-focus technology, making clear, stable images easy to capture. Other key features of the Minrray UV510A-5-U3-IR include the following:
- Supports 16000, 32000, 44100, 48000 sampling frequency
- Supports AAC, MP3, PCM audio coding
- Supports H.264/H.265 video compression, AAC, MP3, and PCM audio compression
- Supports multiple network protocols, such as ONVIF, RTSP, RTMP
- Supports real-time messaging protocol (RTMP) push mode, easy to link streaming media server (Wowza,FMS)
- RS-232 cascade function for convenient installation
- Low-power sleep function with power consumption lower than 400mW in sleep mode
Specifications
- Video Format: HDMI/SDI/HDBaseT video format Resolutions: Up to 1080P60/50/30/25/59.94/29.97
- View Angle: 16.3 (tele) 80.9 (wide)
- AV: F1.6 F3.0
- Digital Zoom: 10X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- DNR: 2D and 3D DNR
- White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
- Focus/Aperture/Electronic Shutter: Auto/Manual
- BLC: ON/OFF
- Network Protocol: RTSP, RTMP, ONVIF, GB/T28181
- Power Interface: HEC3800 Outlet (DC12V)
- Pan/Tilt Rotation: 170 ,-30 +90
- Pan Control Speed: 0.1 60 /sec
- Tilt Control Speed: 0.1 30 /sec
- Preset Speed Pan: 60 /sec, Tilt: 30 /sec
- Preset Number: 255 presets (10 presets by remote controller)
- Supply Adapter: AC110V-AC220V to DC12V/1.5A

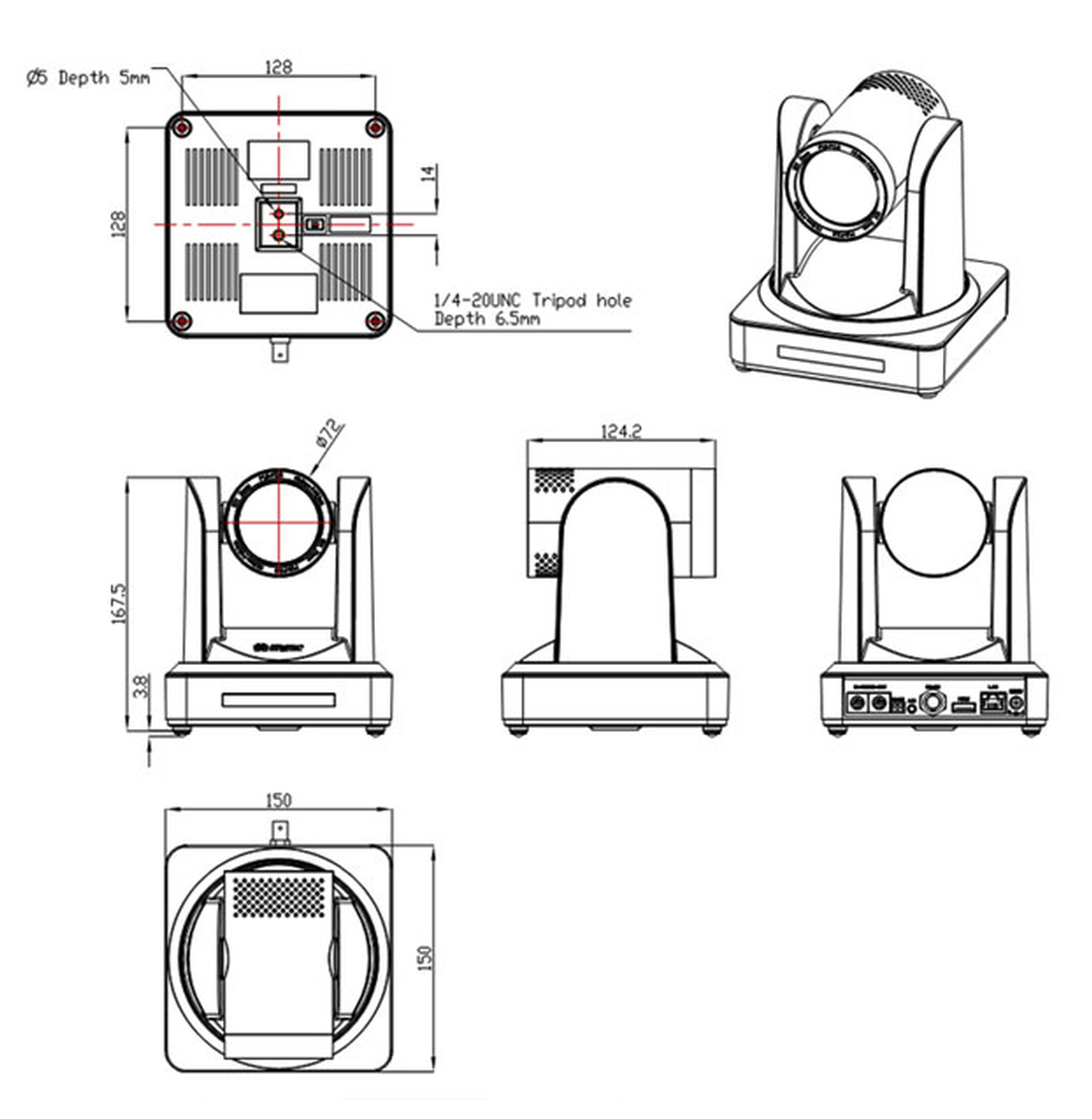

- Dimension: 150mmX150mmX167.5mm
- Weight: 1.4KG
- Remote Operation (IP): Remote Upgrade, Reboot and Reset
- Warranty: 2 years
