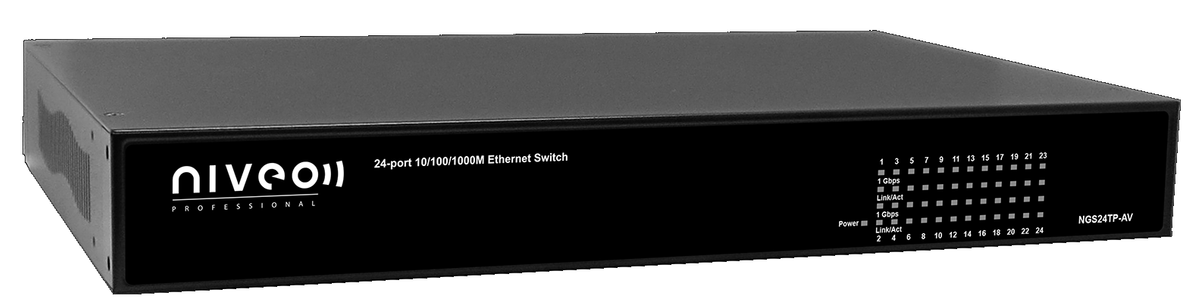

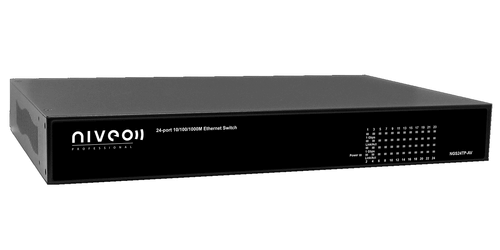

Niveo NGS24TP-AV
24-Port Gigabit Ethernet Switch Rear-Facing

Description

Features and Benefits

• 24-port 10/100/1000Base-T RJ-45 UTP or STP
• Rear facing switch
• Auto-MDI/MDI-X Auto Negotiation
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Non-Blocking Switching Capability
• Ethernet Port on the Rear Design
• Supports 9K Jumbo Frames
• 19” Rack Mount brackets included
• Internal Power Supply
• CE, FCC Class B, Safety: UL (UL60950-1), CB(IEC60950-1)
• Niveo Professional 10 Year Warranty

Applications

• Small to medium networking environments
• LAN 10/100/1000BaseT infrastructure
• SOHO Networking infrastructure component

Specifications

• Buffer Memory: 500 KB
• Jumbo Frames: 9.6 KB
• Method: Store and Forward
• Filtering/Forwarding Rates
• 1000Mbps port: 1,488,000pps
• 100Mbps port: 148,800pps
• 10Mbps: 14,880pps
• Transmission Media: 10BaseT Cat. 3, 4, 5 / UTP/STP / 100BaseTX Cat. 5 UTP/STP / 1000BaseT Cat. 5E / UTP/STP
• LED Indicators: Per Port LINK/ACT, 1000M Per Unit: Power
• Power Requirement: 90~260V/AC, 50~60Hz
• Power Consumption: 18 Watts (Max)
• Dimensions: 266 161 44 mm (L x W x H)
• Weight: 2.14 kg
• Operating Temperature: 0 to 40
• Storage Temperature: -20 to 90
• Humidity: 10 to 90% RH (non-condensing)
• Certifications FCC Class A, CE

Downloads

• Niveo NGS24TP-AV Specifications (PDF)
• Niveo NGS24TP-AV Manual (PDF)
