Niveo NGSE8H-AV

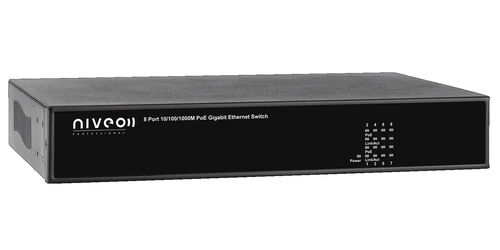

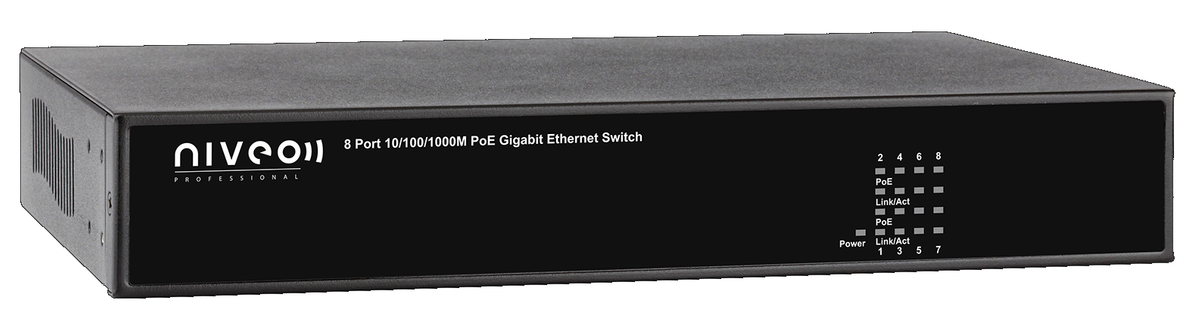

Niveo 8-Port Gigabit High-Power PoE+ Rear-Facing Switch
Part #: NGSE8H-AV
Satisfaction Guaranteed!
MSRP: $834.00
Our Price:
$808.98
Top NGSE8H-AV Specifications
- Specifications
- Standards: IEEE 802.3 10BaseT / IEEE 802.3u 100BaseTX / IEEE 802.ab 1000BaseT / IEEE 802.3z / 1000BaseSX/LX / IEEE 802.3x Flow Control / IEEE 802.3at PoE
- Features
- RJ-45 Ports: 8
"Super fast responses, super fast direct support. Quick shipping. Best prices out there when buying in bulk. Thank you!"
-Chad R.
-Chad R.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Features and Benefits
- 120 watt PoE budget
- 9.6K Jumbo frame support
- Supports 10/100/1000Base-T applications
- IEEE 802.3at compliant with 2-event classification
- IEEE 802.3af backward compatible
- Safe and reliable power to WLAN APs
- Automatic Detection and Protection of Non-standard Ethernet Terminals
- Compact design
- AC-in Internal Power
- Niveo Professional 10 year warranty
Specifications
- MAC Address: 8K
- Buffer Memory: 144K Bytes
- Jumbo Frames: 9.6K
- Transmission Method: Store and Forward
- Transmission Media: 10BaseT Cat. 3, 4, 5 UTP/STP / 100BaseTX Cat. 5 UTP/STP / 1000BaseT Cat. 5E UTP/STP
- Led Indicators Per Port: Link/Act, 1000M
- Per Unit: Power
- Power Input: 90~264V/AC, 50~60Hz
- Power Output: 48~56V /DC Per Port Output
- Power Consumption: 130 Watt (Max)
- Dimensions: 10.47 x 6.3 x 1.73 inch
- Weight: 2.1lbs
- Operating Temperature: 0 to 40 / 32 to 104 F
- Storage Temperature: -20 to 90 / -4 to 194 F
- Humidity: 10 to 90% RH (non-condensing)
- Certifications: FCC Class A, CE, c-UL-us (Q4-2013)
