Parle TCM-1A White
AVB Beamtracking ceiling microphone with PoE+ amplifier, white pendant

Description

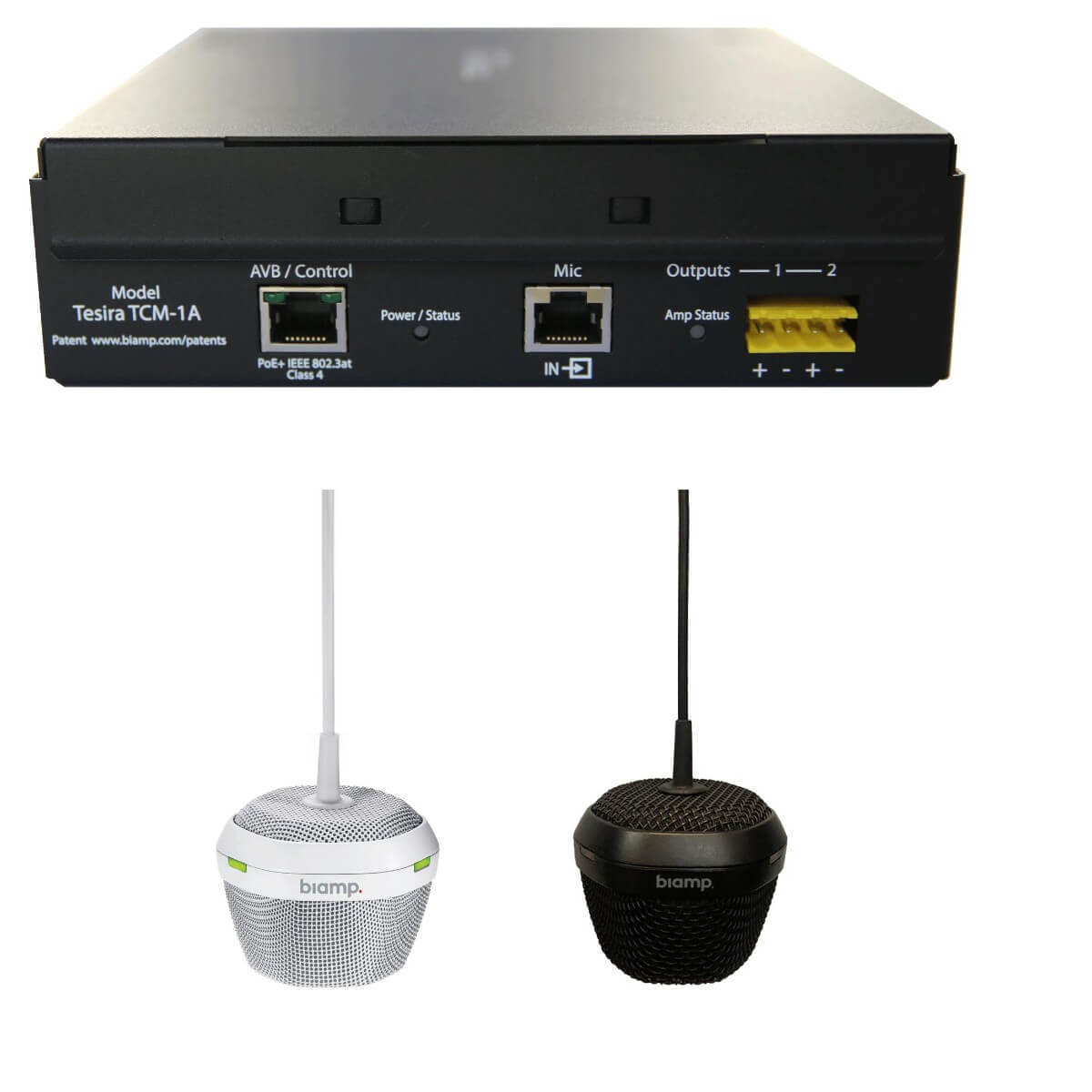

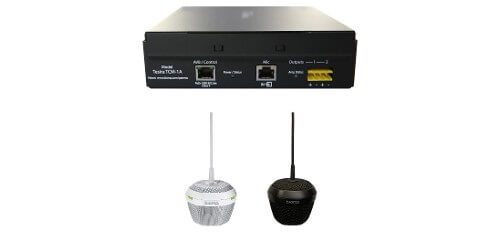

The Parlé TCM-1A is an AVB ceiling microphone and PoE+ amplifier comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX). The 2-channel PoE+ amplifier includes an internal limiter, selectable power, and a burst mode to handle peak signals.

Specifications

• Two channels: 4 watts continuous per channel
• Burst mode to handle peak loads: supports up to 40 watts (4 Ohms) or 30 watts (8 Ohms) per channel
• Software-selectable power vs. channel count
• Includes internal limiter function
• Optional tile bridge mounting accessory available
• LED mute status indicator
• User-adjustable microphone height
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
• Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
• CE marked, UL listed, and RoHS compliant
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
