Parle TCM-XA White
AVB Beamtracking ceiling microphone with PoE+ amplifier, white surface mount

Description

The Parlé TCM-XA is an AVB low-profile ceiling microphone and PoE+ (IEEE 802.3at Class 4, 30W) amplifier for use in Tesira systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX.

Specifications

• Burst mode to handle peak loads: supports up to 40 watts (4 Ohms) or 30 watts (8 Ohms) per channel
• Software-selectable power vs. channel count
• Includes internal limiter function
• Beamtracking technology works out-of-box without any lobe aiming or room mapping
• Single cable connection via CAT cable
• LED mute status indicator

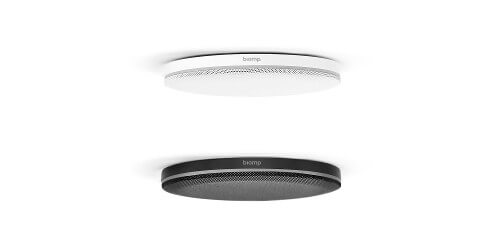

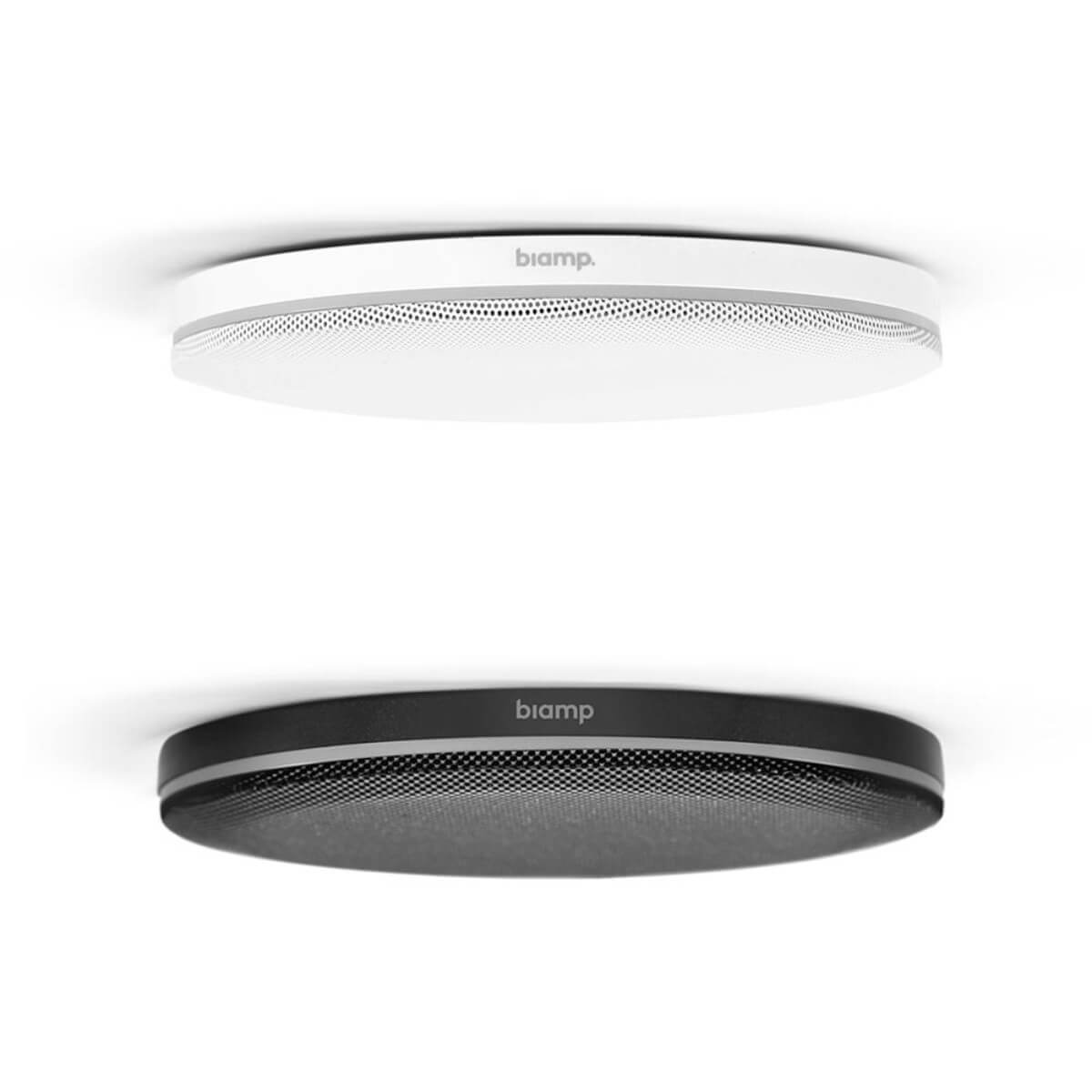

• Available in either black or white
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
• Additional RJ-45 connection
• CE marked, UL listed, and RoHS compliant
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)

Downloads

• Parle TCM-XA White Specifications (PDF)
