Presentation Switchers IN605
DisplayPort Input Board Card for PS600 Series Presentation Switchers
- Video Input Specs:
- Input: 1 DisplayPort, female
- HDMI V1.4b, single link compatible
- Bandwidth: 3 Gbps, 300 MHz TMDS clock rates
Description

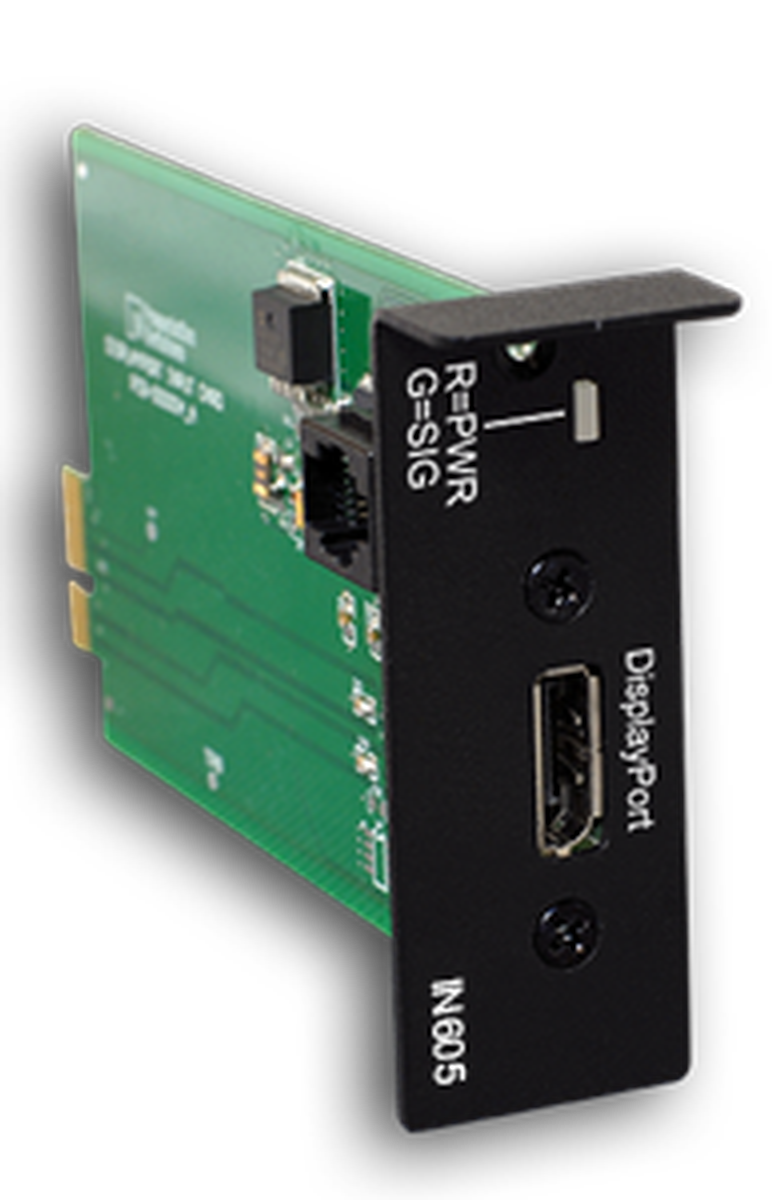

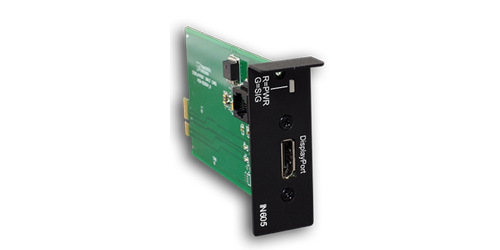

The IN605 from Presentation Switchers is a DisplayPort Input Card that allows high speed digital DisplayPort devices to be connected to the PS600 series Modular Presentation Switcher Enclosures, such as the PS650. This board is used to connect audio-visual source devices using the DisplayPort Apple/Mac standard. This board is sold separately or part of a complete system within the PS600 Digital Presentation Switcher Enclosures.
The IN605 features:
- DisplayPort Digital Video, Apple/Mac Format
- 3 Gbps, 300 Mhz TMDS Clock Rates
- HDTV Resolutions up to 4K @ 30 Hz
- HDCP 1.3 Compatible
- EDID: Passthru or Table Lookup, selectable
- Indicators: 1 LED (Red = Power, Green = Video Signal Present on Input, and White = Source selection)

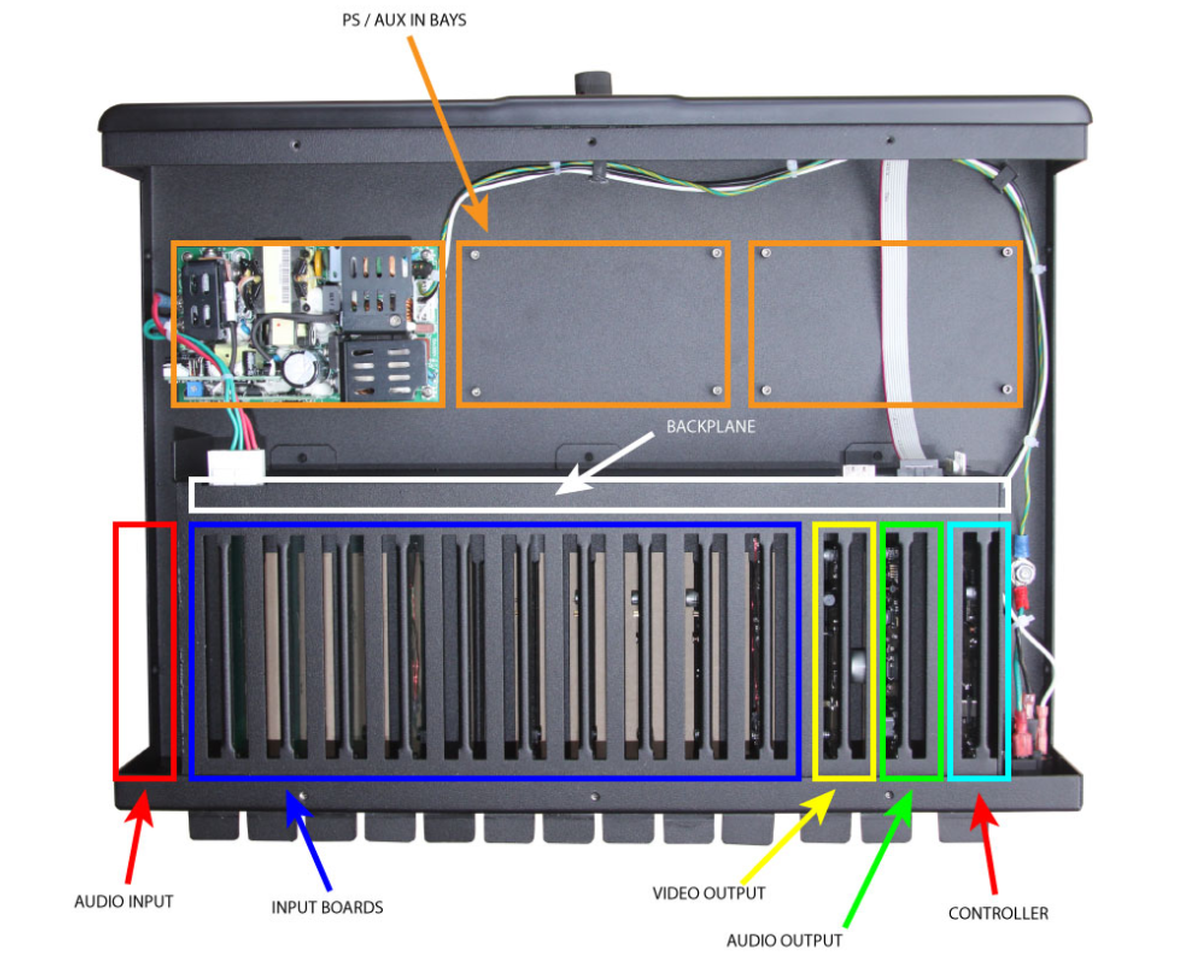

INSTALLATION
Installation is quick and painless. UNPLUG THE POWER CORD ATTACHED TO THE ENCLOSURE. Simply remove the single mounting screw that holds the IN600 Future Expansion Plate or other card where you plan to install the IN605. After removing the old plate, insert the new IN605 assembly. Replace the screw and reattach the power cord. The system automatically recognizes the new board installed so no further activity is required. However, in some cases, it may be necessary to adjust the audio trim to level the input amplitude to a nominal level. See the Installation Manual for more details regarding audio adjustments.
Specifications
- Supports 1, 2, and 4 lanes at both 1.62 Gbps and 2.7 Gbps data rates
- Supported HDTV Resolutions: up to 4K @ 30Hz
- HDCP V1.3 compliant
- EDID: Passthru or Table Lookup, selectable
- Built-in automatic receiver equalization
- Supports both full link training and no link training operation
- Video input formats: RGB up to 12 bpc, YCbCr4:4:4 -4:2:2 up to 12 bpc
- Supports reduced blanking or reduced refresh rate timing modes
- 24-bit audio sample size, up to 88 kHz sample rate
- Indicators: 1 LED (Red = Power, Green = Video Signal Present on Input, or White = Source selected)
- Built-in ESD Protection
- Certifications: CE, RoHS
- Dimensions (HxWxD): 3" x 1.2" x 6"
- Weight: 0.5lbs
- Warranty: 3 Years, Parts & Factory Labor
