Presentation Switchers PS120
Multi-Format Auto-Switcher with USB 3.1 Type C Connection

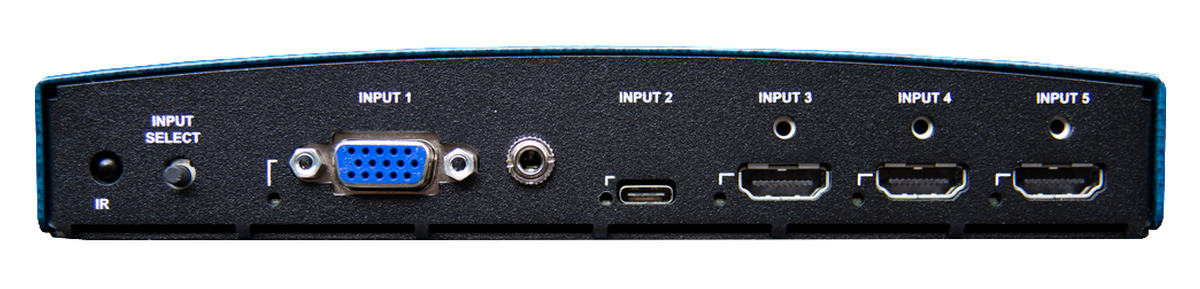

- Video Inputs: (3) HDMI, VGA, USB-C
- Outputs: HDMI
- Supported Resolutions: 4K2K (3840x2160) or "Ultra HDTV"
- Audio Output: Line Level Output: (2) RCA
Description
The PS120 Multi-Format Auto Switcher is the latest in design from Presentation Switchers which features (3) HDMI connections, 1 VGA, and 1 USB-C input for mobile device connectivity. By supporting the native USB 3.1 Type C connection, now you can present and share your content even easier from mobile devices such as the Google Chromebook, Samsung Galaxy, and Dell Notebooks. Furthermore the PS120 offers fast charging capabilities the the USB-C port by conforming to the USBPD 3.0 standard providing the fastest charging method in the industry.
Features:
USB TYPE C
Today’s classrooms frequently using Google Chromebooks, Samsung Galaxy Notebooks, and other devices using the USB 3.1 type C connector. This connector is used for high resolution on video displays and power. When connected the PS120 routes the high resolution on image from the device to the display while simultaneously providing up to 30 watts of power for very quick charging.
CLOUD CONTROL
The PS120 is compa ble with Cloud Control, an Amazon AWS MQTT service developed by PS for use with its AV integrated line of IoT switchers. Cloud Control allows administrators to manage a single PS120 or thousands of PS120 devices at multiple locations.
UHD
The PS120 supports HDTV and VESA resolutions - including 4K@30 and 1080p@60.
AUTO SWITCHER
The PS120 has a unique auto-sense, auto-switch feature that automatically switches to the source when a new source is connected to the system. For example, when a person connects to any of the 5 HDMI inputs, that person’s laptop image immediately appears on the display.
DISPLAY ON/OFF
A significant feature of the PS120 is the ability to automatically turn on the display when someone connects ones
laptop, computer, or iPad then automatically shut off the display when the presentation on is over and everyone has disconnected from the PS120. This communication on method does not require any programming and communicates with the display through the HDMI cable.
PROXIMITY SENSOR
A passive infrared proximity sensor and pre-terminated cable ships with each PS120. This sensor detects when
everyone has left the room and shuts down the display after a predetermined period of time extending display life and saving power.
DRAG N DROP FIRMWARE UPDATES
Using the PS120’s USB Mini-B port connected to a Window-based computer, firmware updates are
as easy and as quick as dragging and dropping a fi le into a directory or folder.
The PS120 is a perfect device for the following locations:
- Collaborative Workspaces
- Corporate Boardroom & Higher Education Centers
- Military Briefing Centers
Specifications
- Control: Ethernet, RS-232, IR, USB Type B
- Enclosure: 16-18g Metal with Black matte finish on Base and Blue/Black glossy finish on cover
- Power: 24 VDC, 1.5A, 35 Watts
- Dimensions: 7.4" x 5.0" x 1.24" (H x W x D)
- Weight: 0.9lbs
- Warranty: 1 Year Parts & Factory Labor
