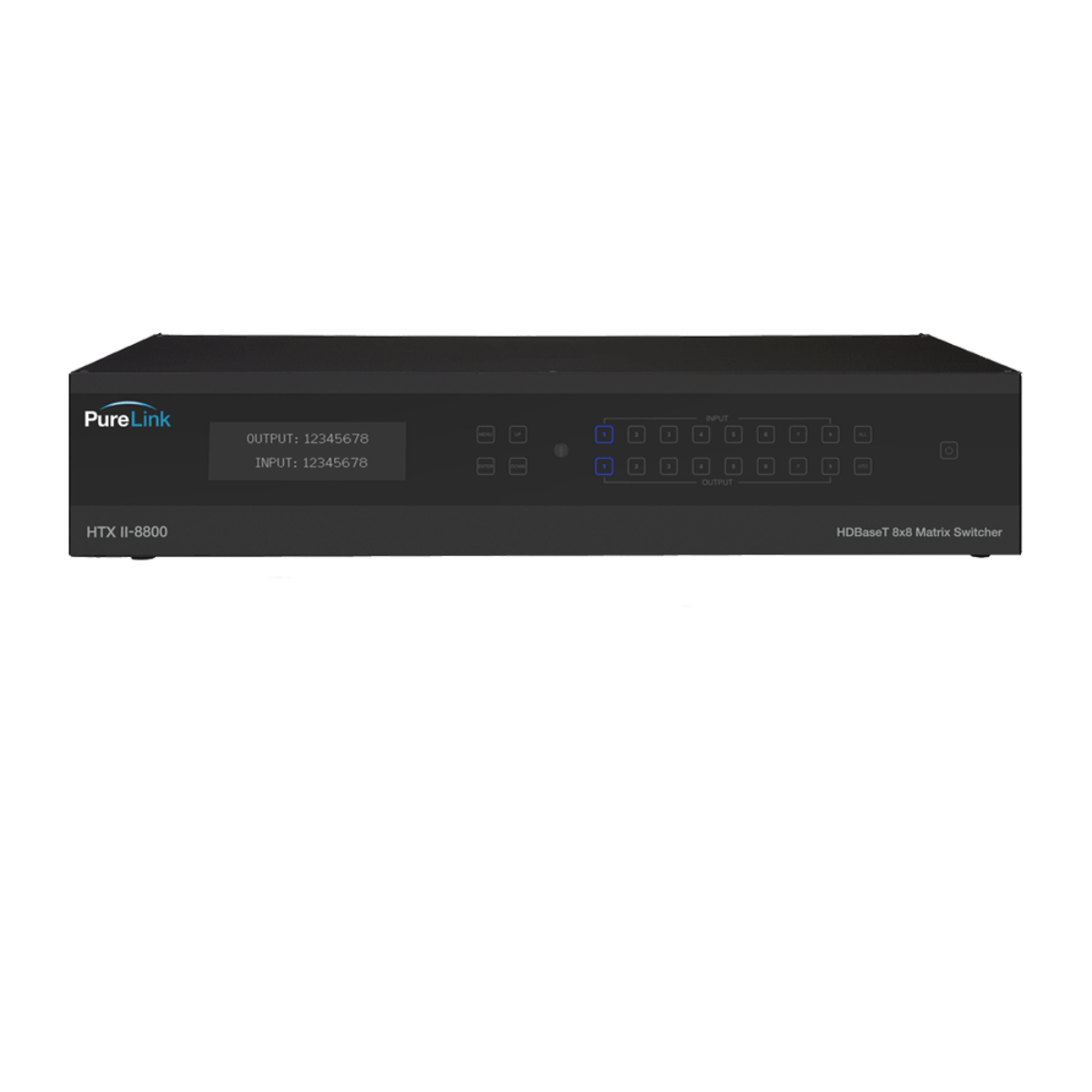

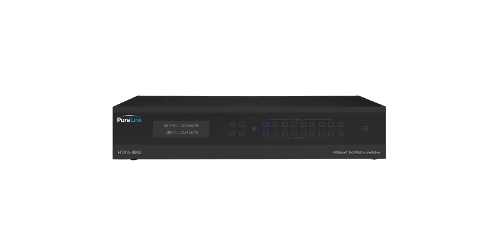

PureLink HTX II-8800
8×8 4K HDMI to HDBaseT Matrix Switcher w/PoE
Part #: HTX II-8800
Satisfaction Guaranteed!
Our Price:
$3,499.99
Top HTX II-8800 Specifications
- HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, and DVI compliant
- (8) HDMI inputs, (6) HDBaseT
- outputs, and (2) independent HDMI outputs
- Resolutions up to 4K@60HZ (4:4:4) on all HDMI ports
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The HDTools HTX II-8800 provides independent switching of (8) Ultra HD/4K sources to (6) remote destinations via HDBaseT (with HTX II receivers, sold separately) and (2) local destinations via HDMI. The HTX II-8800 also features a built-in independent audio matrix with (16) audio outputs [8 audio breakouts/ 6 HDBaseT outputs/ 2 HDMI outputs] and (22) audio inputs [8 HDMI inputs/ 8 ARC audio inputs/ 6 external audio sources) with volume, mute, and delay adjustment.
Specifications
- 4K@60Hz (4:4:4) to 4K@60Hz (4:2:0) conversion for all HDBaseT
- outputs
- Distances up to 330 ft. (100 m) via CATx
- Pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Built-in independent audio matrix with Volume, Mute, and Audio delay for lip-sync adjustment (LPCM only)
- HDR, ARC, CEC and smart EDID management supported
- 24V PoC on all HDBaseT
- ports
- Control via on-panel Button, IR, RS-232, LAN and Web GUI
- 1RU rack-mounted design with aluminum front panel housing
