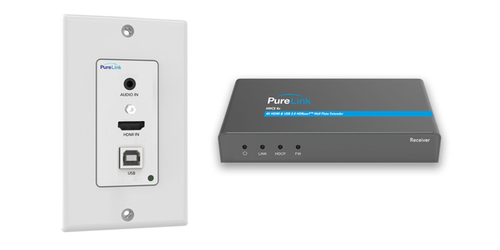

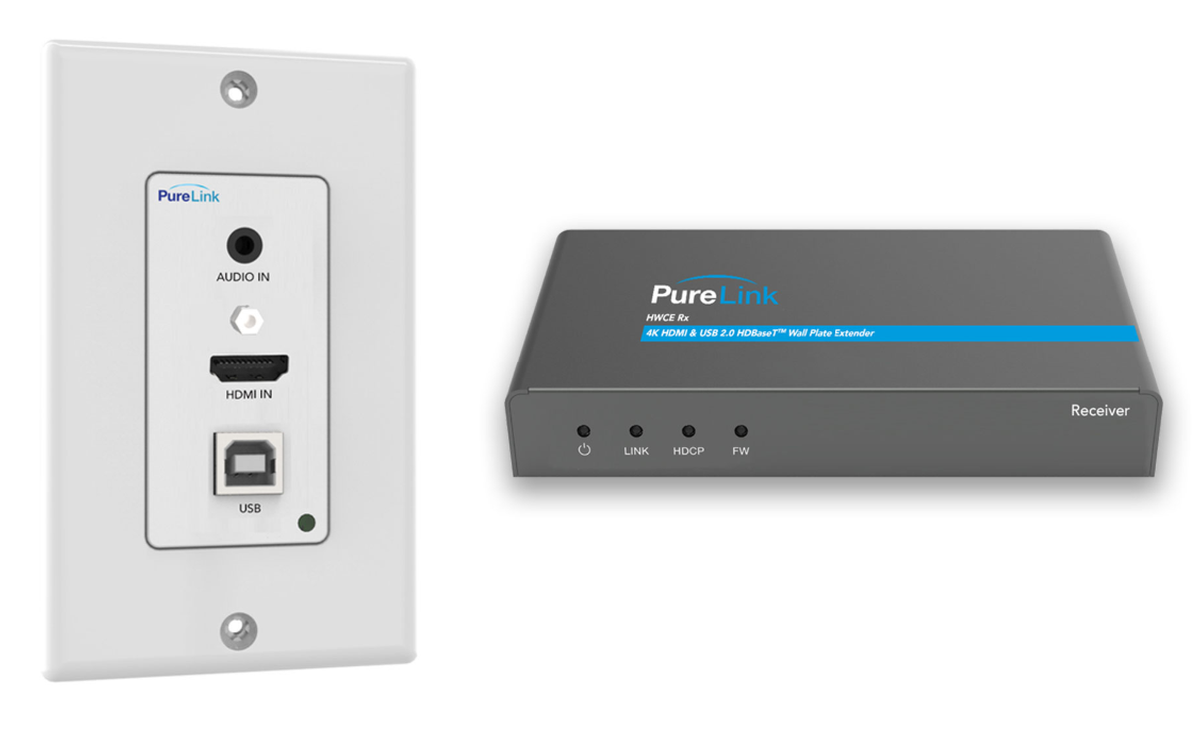

PureLink HWCE Tx/Rx
Wall Plate Extension System, 4K HDMI, USB 2.0 over HDBaseT

Description

PureLink's HWCE transmitter and receiver wall plate extension system is an outstanding combination of a single-gang wall plate with extender. The HWCE can transmit 4K ultra-HD signals up to 130 feet over a CATx cable.

Able to transmit analog and digital signals alike, the HWCE transmits 3.5mm analog audio independently from the HDMI or USB input. This system is compliant with HDMI 1.4 and HDCP 2.2 and supports one-way RS-232 pass-through. Other key features of this extension system include the following:

• Supports resolutions up to 4K@60Hz (4:2:0)/4K@30Hz (4:4:4)
• Supports HDR (High Dynamic Range) content
• Supports distances up to 130 feet at Ultra HD/4K and 230 feet at 1080p
• RS-232 and CEC pass-through
• Remote power from receiver to transmitter
• Standard single-gang Decora format transmitter

Specifications

• Input: 1 HDBaseT IN (RJ45)
• Outputs: 1 HDMI Type A (19-pin female), 1 3.5mm stereo audio, 1 USB Type A, 1 RS-232 (3-pin phoenix), 2 USB Type A
• Compliance: HDMI 1.4, HDCP 2.2, USB 2.0
• Supported Bandwidth: 10.2 Gbps
• Supported Resolutions: 4K@50/60Hz (4:2:0), 4K@30Hz (4:4:4), 1080p@120Hz, 1080p 3D@60Hz
• Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 8-bit, 10-bit, 12-bit
• HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Analog Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• Max Power Consumption: 9 Watts
• Power Supply Input: AC100 - 240V 50/60Hz
• Power Supply Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
• Transmitter Dimensions: 4.07"x1.81"x1.18"

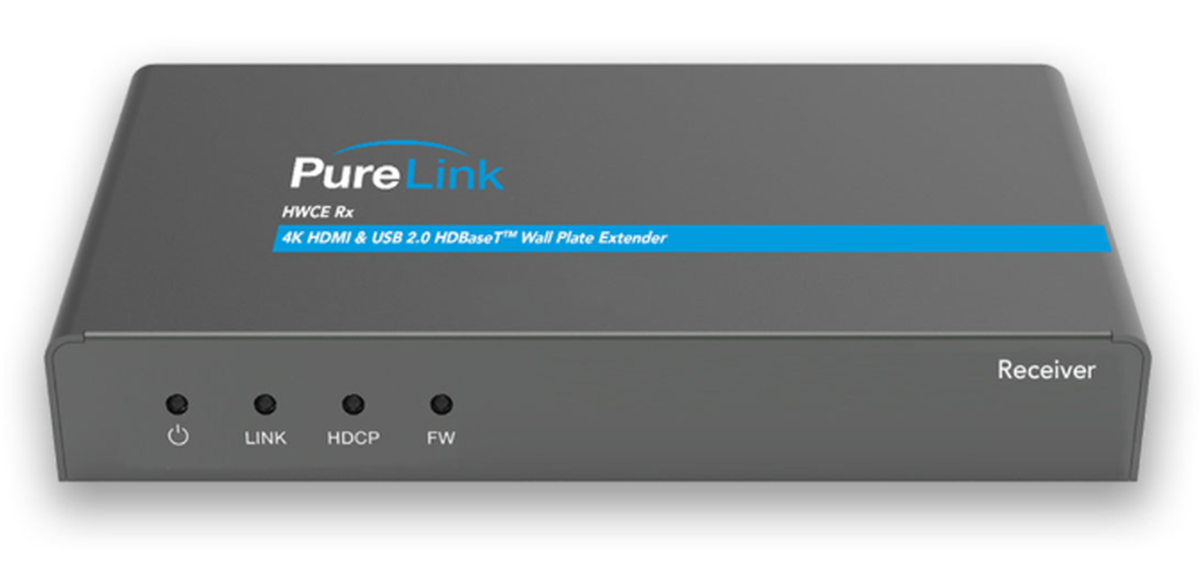

• Receiver Dimensions: 5.51"x2.95"x0.91"
• Transmitter Weight: 0.36 lbs
• Receiver Weight: 0.44 lbs

Downloads

• PureLink HWCE Tx/Rx Product Sheet (PDF)
