PureLink PS-6300S
6X3 Matrix Presentation Seamless Switcher and 2K Scaler with PIP

Description

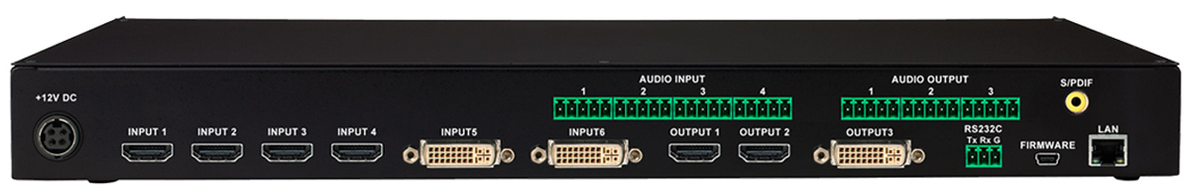

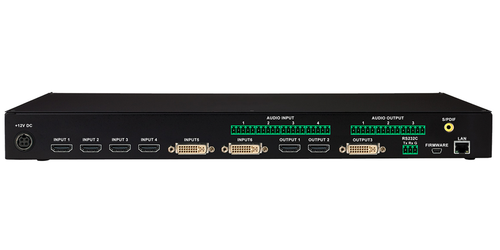

The PureLink PS-6300S is a 6x3 video matrix multi-format switcher and scaler.  The inputs consist of 4 HDMI and 2 DVI-I, the outputs are 2 HDMI and 1 DVI-I.  All outputs can be scaled up to 2K and provide fast and seamless switching for a high-end presentation.  There is even Picture In Picture (PIP) so 2 windows can be displayed on 1 screen.  EDID management is automatic to provide optimal resolution with a seamless connection to your monitors.

Also integrated is a 4x3 balanced/unbalanced audio matrix router, the 4 inputs can be mixed with any video source to produce a new HDMI output with embedded audio.  There are 3 individual audio outs and one S/PDIF that can be used to to be sent to an external source.

The PureLink PS-6300S is a jack of all trades and can be your one solution for matrix switching, scaling, format converting, and an audio DSP in one affordable presentation switcher.

Specifications

• Audio in: Mix with any source for HDMI embedded out
• Audio out: Digital HDMI to analog extraction
• PIP, 2 windows can be displayed on 1 screen
• DVI-U: Universal supports both analog and digital
• HDCP compliant
• HDMI v1.3
• Advanced EDID management

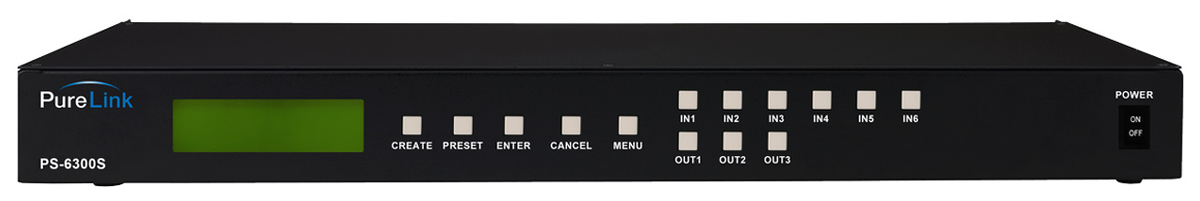

• Control: RS-232, LAN, front panel
• Dimensions: 19"(W) x 8.0"(D) x 1.75"(H)
• Weight: 6.7lbs
• Includes: Rack ears and power supply
• Warranty: 3 years

Downloads

• PureLink PS-6300S Specifications (PDF)
