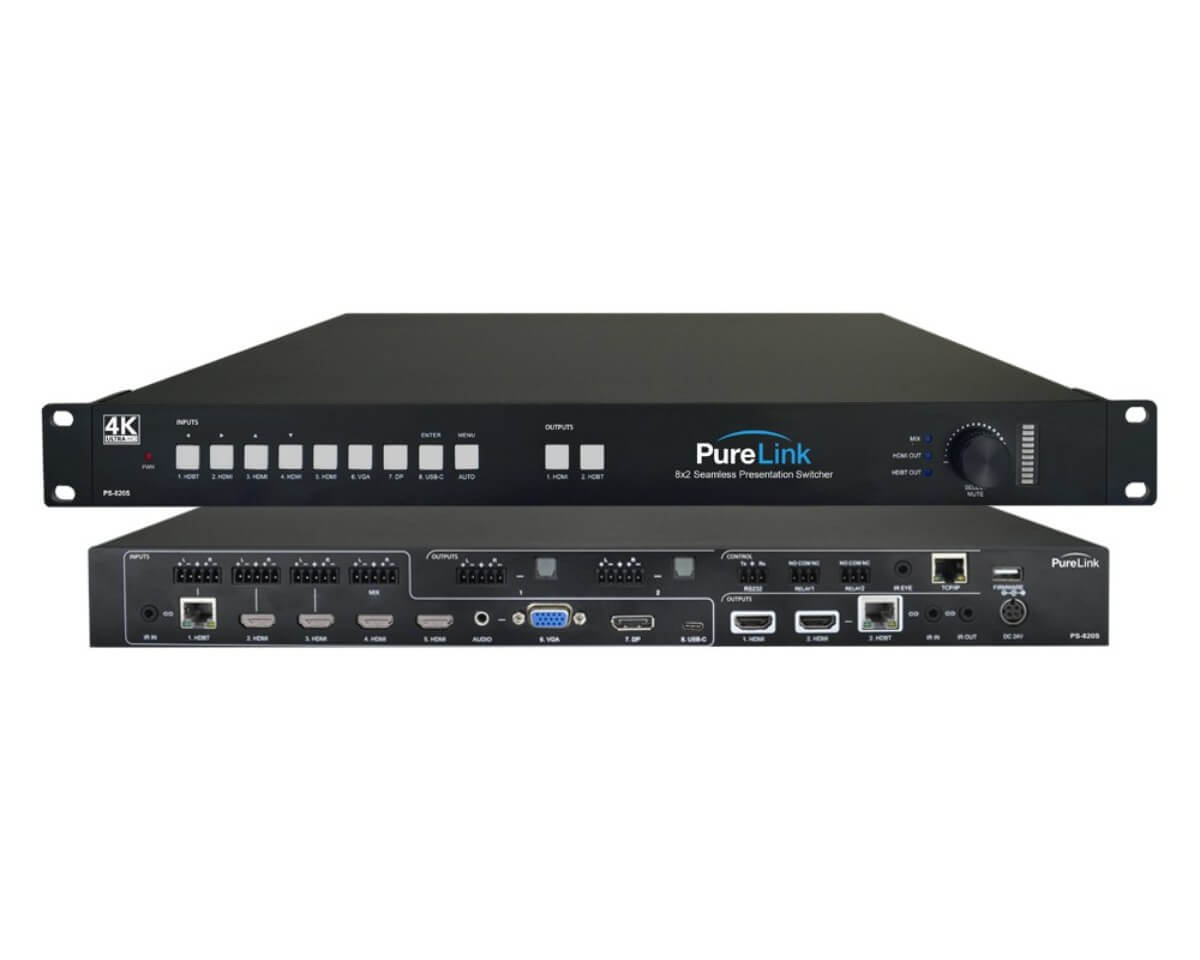

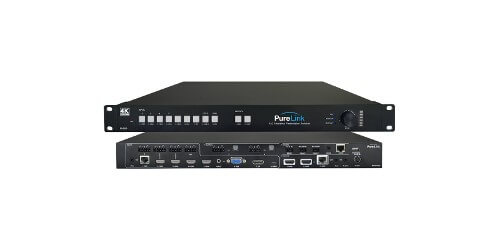

PureLink PS-820S
8x2 HDMI 2.0 Presentation Switcher - 4K Resolutions - HDCP 2.2

Description

The HDTools PS-820S by PureLink is a 8x2 seamless presentation switcher that features 4K resolutions, HDMI 2.0 and HDCP 2.2 compliance. This quality made switcher additionally provides 18 Gbps data speeds, instant switching, and individual video scaling for each output buss. Inputs include: HDMI, HDBaseT, DisplayPort, USB-C as well as audio embedding and audio mixing through S/PDIF connections. This device is the ideal multi format switcher for conference rooms, home theaters, auditoriums or larger venues that would benefit from a seamless 4K/60 video and audio distribution solution.

Key Features:

• 4K@60Hz 4:4:4 support with Don’t Blink Switching Technology
• (8) inputs including HDBaseT, HDMI, DisplayPort, and USB-C
• Audio embedding and mixing with volume control via balanced audio inputs
• HDCP 2.2 compliant
• Complete EDID management for individual inputs
• CEC control
• Proprietary Precis codec for lossless video transmission
• HDBaseT Distance: 40m@4K and 70m@1080p
• Auto-switching on HDMI and HDBaseT outputs
• Audio de-embedding with volume control via balanced analog and S/PDIF audio outputs
• Local/pass-through IR and RS-232, TCP/IP, relay, CEC and OSD

Specifications

• Supported Distance: HDBaseT Input/Output 1080p@60Hz up to 230ft. (70m) | 4K@60Hz up to 131ft
• Supported Resolutions: HDBaseT/HDMI/DP - up to 4K@60Hz 4:4:4 | VGA - up to 1920x1200, 50/60Hz Video Bandwidth: 18 Gbps
• Compliance: HDMI 2.0, HDCP 2.2
• Control Options: RS-232, IR, LAN
• Power Consumption: 85W (max)
• Power Supply Input: AC100~240V, 50/60Hz | Output: 24V DC6A
• Enclosure Type: All metal, black powder coat finish
• Rack Mounting Option: Standard 19 inch rack-mountable design
• Product Dimensions: 17.2 x 1.7 x 14.0 in. (WxHxD)
• Product Weight: 6.33 lbs
• Warranty: 3 Years

Downloads

• PureLink PS-820S Specifications (PDF)
