PureLink VIP-200H II Tx
HDMI & USB/KM over IP Extender Transmitter

Description

The PureLink PureStream VIP-200H II HDMI & USB/KM over IP Extension System offers 1080p signal distribution over the network with enhanced features including video wall processing, built-in scaling functionality, and faster switching speeds. Local and remote units can be connected together for point-to-point extension over distances up to 492 ft (150 meters), as well as a point-to-many, many to point, matrix connectivity and up to an 8×8 video wall using the VPX IP Video Management Software.

Key Features

• Full HD/1080p@60Hz support
• HDCP 1.4 compliant
• Video wall processing (up to 8×8 configuration)
• Built-in scaler (Rx) – pass through or lock output resolutions
• Rs-232 extension/steerable distribution
• USB 2.0 Keyboard/Mouse Extension
• Audio insertion and extraction
• Bi-directional RS-232 and IR control
• Loop-out on transmitter (encoder)
• Point to point, Distribution, Switching, and Matrix systems
• Compatible with VPX IP Video Management Software

Specifications

• Rs-232 extension/steerable distribution

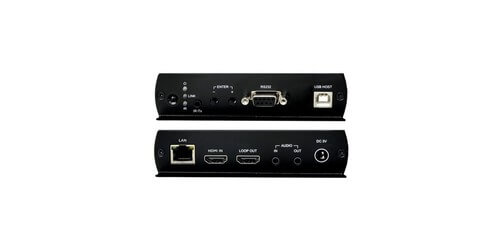

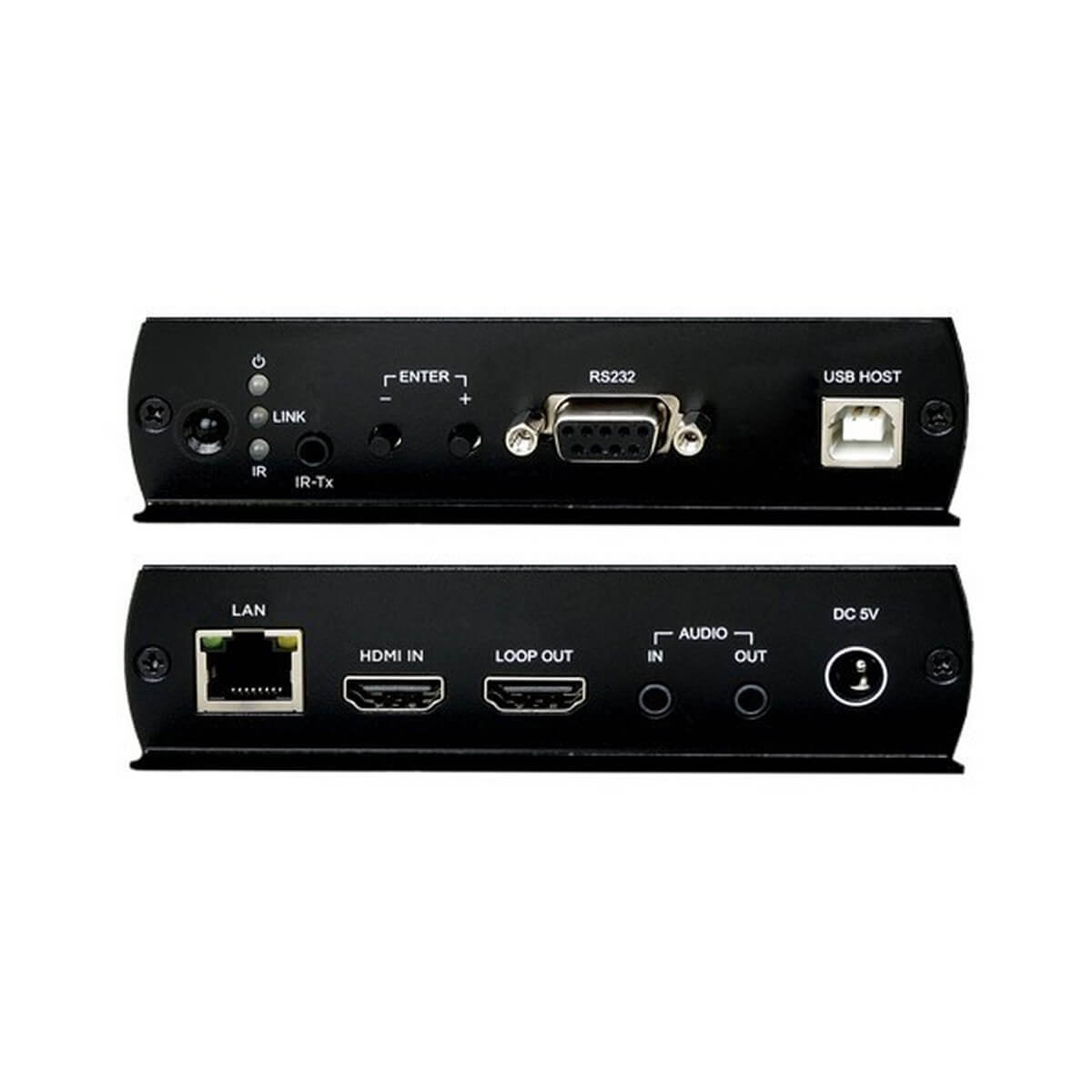

• Inputs: (1) HDMI, (1) 3.5mm Stereo Phone Jack (line-in), (1) USB 2.0 Type B, (1) RS-232 DB9 Female
• Outputs: (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-out) (1) Gigabit RJ45
• Supported Distance: Up to 492'
• Supported Resolutions: Up to 1080p
• Compliance: HDCP 1.4
• Dimensions: 5.51" x 4.92" x 1.18"
• Weight: 0.84lbs
• Warranty: Limited 3 Years

Downloads

• PureLink VIP-200H II Tx Specifications (PDF)
