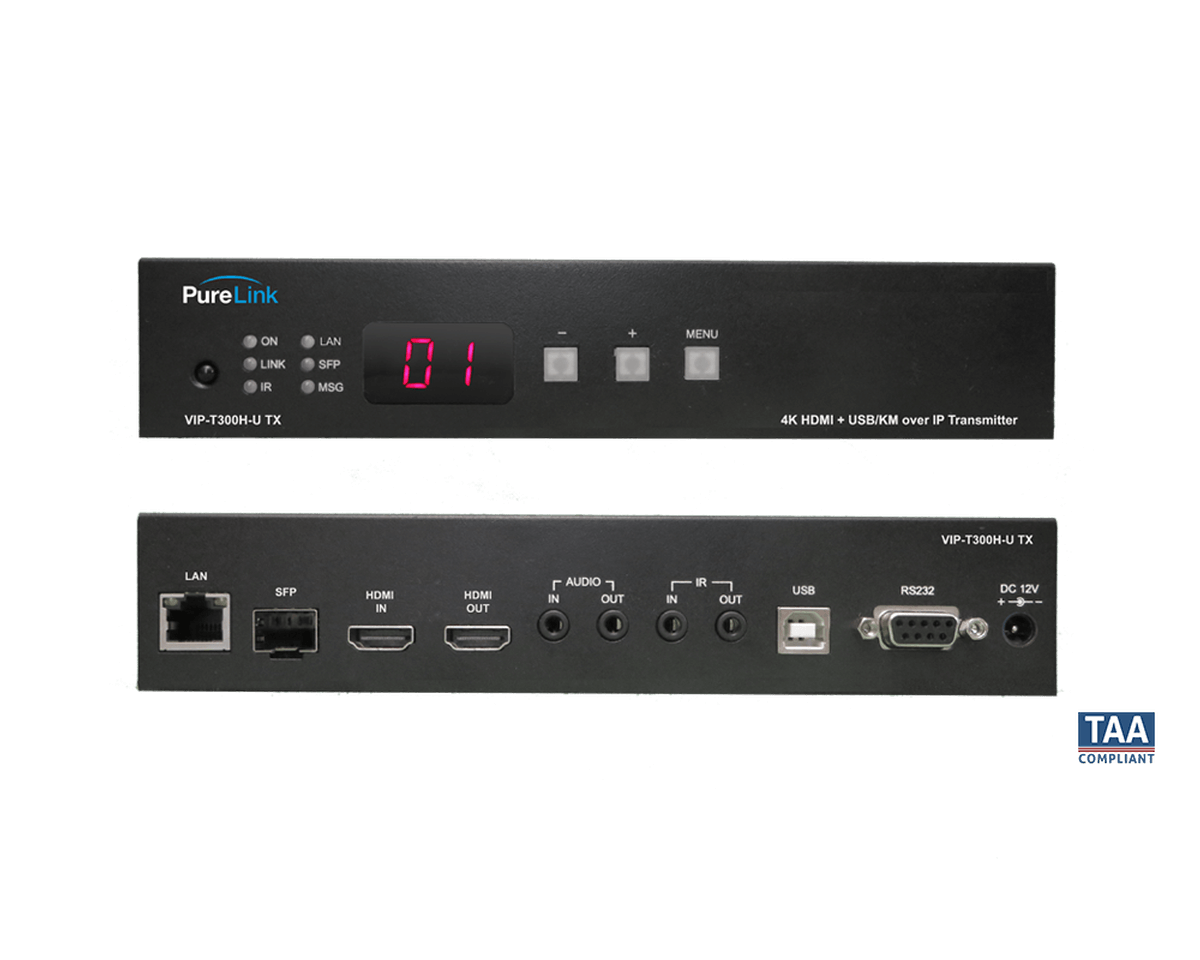

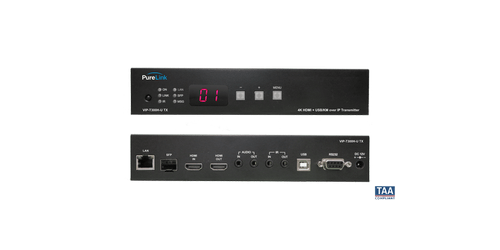

PureLink VIP-T300H-U-TX
4K HDMI & USB/KM over IP Transmitter TAA Compliant

Description

The PureLink VIP-T300H-U 4K HDMI & USB/KM over IP Distribution System provides UltraHD/4K video, audio, RS-232, IR, and USB signal transport over IP networks. The VIP-T300H-U can be used as a point-to-point extension system supporting distances up to 300 meters, as well as layered distribution, switching, and matrix switching systems using multiple control options including PureLink’s VPX IP Video Management Software.

Key Features

• Ultra-low latency (<17mS)
• 800Mbps max data rate; 250Mbps nominal
• Fiber or CAT transport – 1G port
• Extend signals up to to 300 m. using network switch
• HDCP 2.2 compliant
• Comprehensive diagnostics via API – device discovery, signal data, and EDID
• Supports instant switching
• Multiple control interfaces – built-in web interface, front panel buttons, IR remote control, VPX Management Software, Crestron module, and 3rd party control development via API
• Built-in video wall processing (up to 8×8)
• Built-in scaler on receiver (decoder)
• Image rotation 0, 90, 180 degrees
• IR and RS232 extension
• TCP/IP to RS232 conversion
• USB 2.0 for keyboard/mouse, camera, or hard drive
• HDMI loop-out on TX (encoder)
• PoE 802.3af (under 5W)
• Supports Dolby, DTS, and LPCM audio
• Matrix switching systems up to 999 sources and 65K displays
• TAA compliant
• Rack-mount option available

Specifications

• Compliance: HDCP 2.2
• Supported Audio: Up to 7.1 LPCM 192Khz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X
• Power Consumption: 600mA
• Power Supply: DC 12V 1500mA
• Power over Ethernet: 802.3af
• Dimensions: 8.2" x 4.8" x 1.5"
• Weight: 1.5lbs
• Warranty: Limited 3 Years

Downloads

• PureLink VIP-T300H-U-TX Specifications (PDF)
