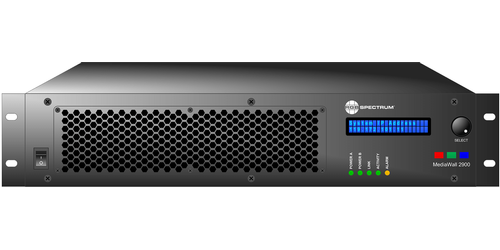

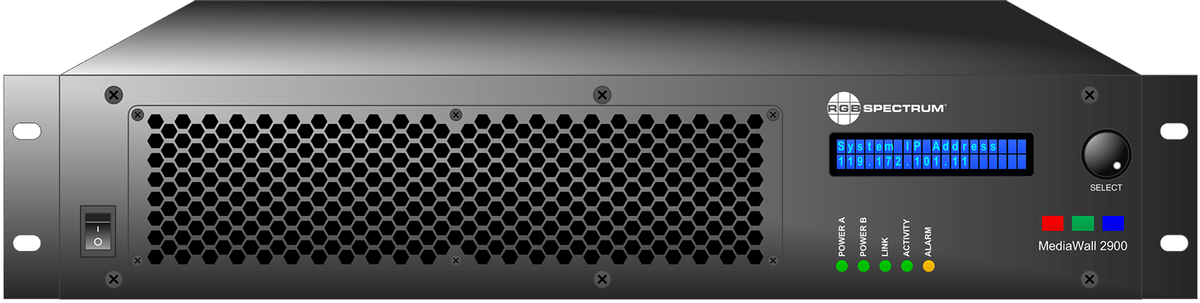

RGB Spectrum MW 2900
MediaWall 24x4 HDMI Display Processor - HDCP

Description

The MW 2900 MediaWall from RGB Spectrum is a high-end, top of the line of Display Processors that offer an amazing real-time embedded operating system. These devices were created to enable high performance visualization with an array of devices, including multiple projectors, tiles, cubes, or flat panel displays. Each and every one of these processors are based on custom built architecture that dedicates processing resources towards each input in the unit. What this does in-turn results in faster video frame updates, display flexibility, security with HDCP compliance, and very crisp enhanced visual experience. The MW 2900 MediaWall features up to 24 inputs working simultaneously, which will accept DVI, HDMI, and RGB input signals that can support video and graphic signals up to 1920x1200 and HD inputs up to 2048x1152, and 4 DVI single link outputs that can handle up to 1920x1200 in single link mode, and HD 2048x1080p per output. With its superb video quality, a dedicated real time architecture, robust design for 24/7 operation ability, and being a highly secure system without PC vulnerabilities, the MW 2900 is an ideal device for use in some of the most demanding of situations including military, security, and government mission-critical video wall type applications.

One of the primary features within this amazing machine is in the multi-screen array, which can display up to 8 windows for graphics and/or video, which forms a display surface on which any configuration of window layout is possible. Users have the option to display video images anywhere, in any size within or across your screens boundaries with edge-blend overlap and bezel compensation, making for a truly unique and customized experience to suit your companies exact needs and functions. Images can also be displayed in correct aspect ratio, stretched to fit, in full screen mode, or zoomed in to emphasize details or highlight certain areas of interests. As well as the ability to move, size, and arrange screens however you see fit, the high-performance video processing using its purpose built hardware makes it so each input is processed at full frame rate, color sampling, and pixel rate, without common PC-based anomalies such as skipped frames or image tearing while delivering superb performance handling.

One of which is through RGB's Web Control Panel (WCP) which provides both local and remote operation, with a graphical representation of the video wall and "drag and drop" window positioning and scaling. Conversely you can also use Remote control commands that are available  via RS-232 and Telnet. RGB Spectrum's BP-16 push button (not included) is available for preset recalls. In addition, MediaWall processors can be controlled by third party control systems.

The MW 2900 from RGB Spectrum, a high-end solution for simultaneously displaying multiple computer and videos signals across an array of high definition monitors or projectors, with the ability to interact with any source via KVM control.

Specifications

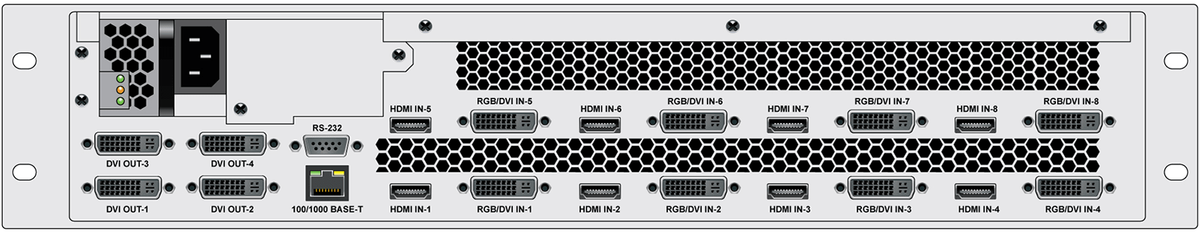

• Connector Type: DVI-I
• DVI Digital Inputs: 8 DVI single-link 1.0
• Resolution: Up to 1080p
• Color Depth: 8-bit
• Cable Equalization: Automatic or Manual, up to 164'
• Connector Type: DVI-I
• HDCP Compliant
• HDMI Digital Inputs: 8 HDMI 1.3a
• Resolution: Up to 1080p
• Color Depth: 8-bit
• Cable Equalization: Automatic or Manual, up to 164'
• Connector Type: HDMI
• HDCP Compliant
• Outputs
• 4 DVI single-link or 2 DVI dual-link
• Display Resolution: Single-link up to 1920 x 1200 and 2048 x 1080, Dual-link mode (option), up to 2560 1600p and 1920 2160p per output
• Clock Rate: 35 to 165Mhz (single-link)
• Pin Power: 500 mA @ 5V DC per output
• Connector Type: DVI-I (digital only)
• Control: RS-232 command line, Ethernet 10/100/1000 BASE-T Telnet, graphical user interface via web browser, 3rd party controllers
• Optional Controls: Single-Point KvM & MCMS
• Power: 100 - 240 VAC auto ranging 50/60Hz, 125W maximum
• Warranty: 1 Year
