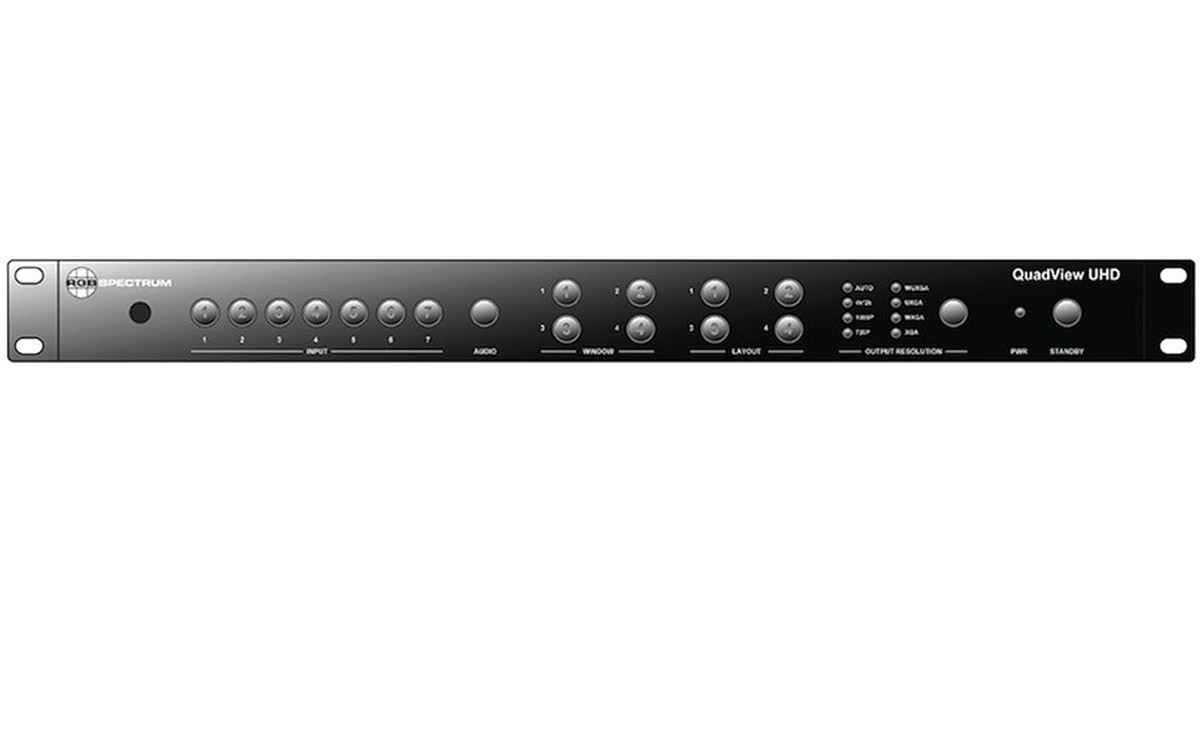

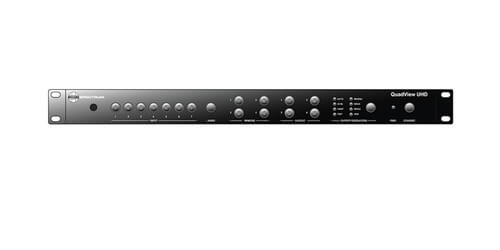

RGB Spectrum QuadView UHD
4K Multiviewer and Multi-Format 7x1 Switcher/Scaler

Description

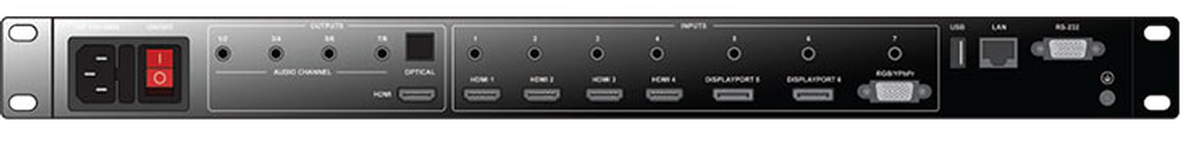

The RGB QuadView UHD is a 7x1 multi-format switcher and scaler that also provides a multiviewer.  Up to 4 sources can be shown on 1 display in 16 different configurations, there are 16 presets that will allow you to find the correct layout that you are looking for with 4K resolution.  For your video inputs you have 4 HDMI, 2 DisplayPort, and 1 VGA, your video output is 1 HDMI.  Integrated into the switcher is an auto scaler for each input that can scale any input up to UHD and then send to any window.  The QuadView UHD provides quick windowing, scaling, and switching with the incredible fast on board image processor.

The RGB QuadView UHD has your audio needs covered as well, it well embed the audio on the HDMI out or you can breakaway the audio and select audio on any source even if it not currently displayed.  The unit can be controlled via LAN with a simple to set up and operate web page, IR remote, front panel, or RS-232.  The UHD is HDMI compliant, has HDMI v1.4b out, and features EDID management so your display gets the correct resolution.

The RGB QuadView UHD is the latest Quadview model and now features 4K support and digital inputs at an affordable price point.

Specifications

• Audio ouptuts: 1x HDMI (embedded), 1x optical, 4x analog (8 channels via 3.5mm mini-pin, stereo
• Scaling: Up to 4K UHD
• HDMI 1.4b

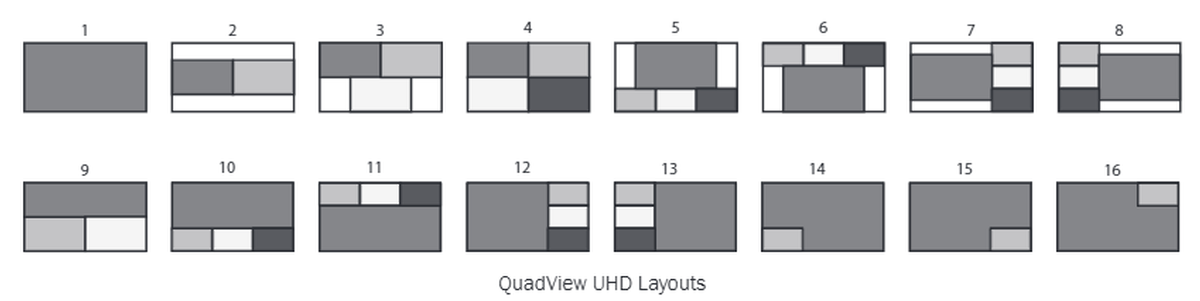

• Multiviewer: Up to 4 sources can be shown on 1 display with 16 different configuration layouts
• Resolution Supported: up to 3840 x 2160 @ 30Hz
• EDID management
• HDCP 1.4 compliant
• Control: Web page, IR remote, front panel, or RS-232
• Breakaway audio: Select audio on any source even if it not currently displayed
• Includes: IR remote and rack ears
• Warranty: 1 year

Downloads

• RGB Spectrum QuadView UHD Specifications (PDF)
