TechLogix TL-CAV-01-HDV
All-in-One AV System with 1 HDMI 1 VGA Input
Manufacturer SKU: 1002-9808
Satisfaction Guaranteed!
MSRP: $1,563.72
Our Price:
$1,440.97
Top TL-CAV-01-HDV Specifications
- 60 day Lead Time ARO & non-cancelable & non-returnable
- Wall Plate Transmitter I/O Connections
- HDMI Input: 1 Type A receptacle
- VGA Input: 1 HD-15 receptacle
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

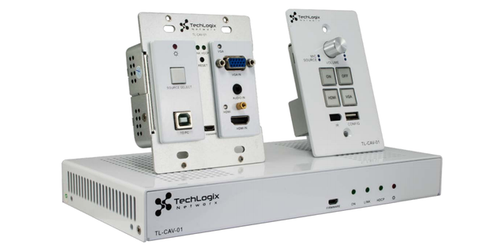

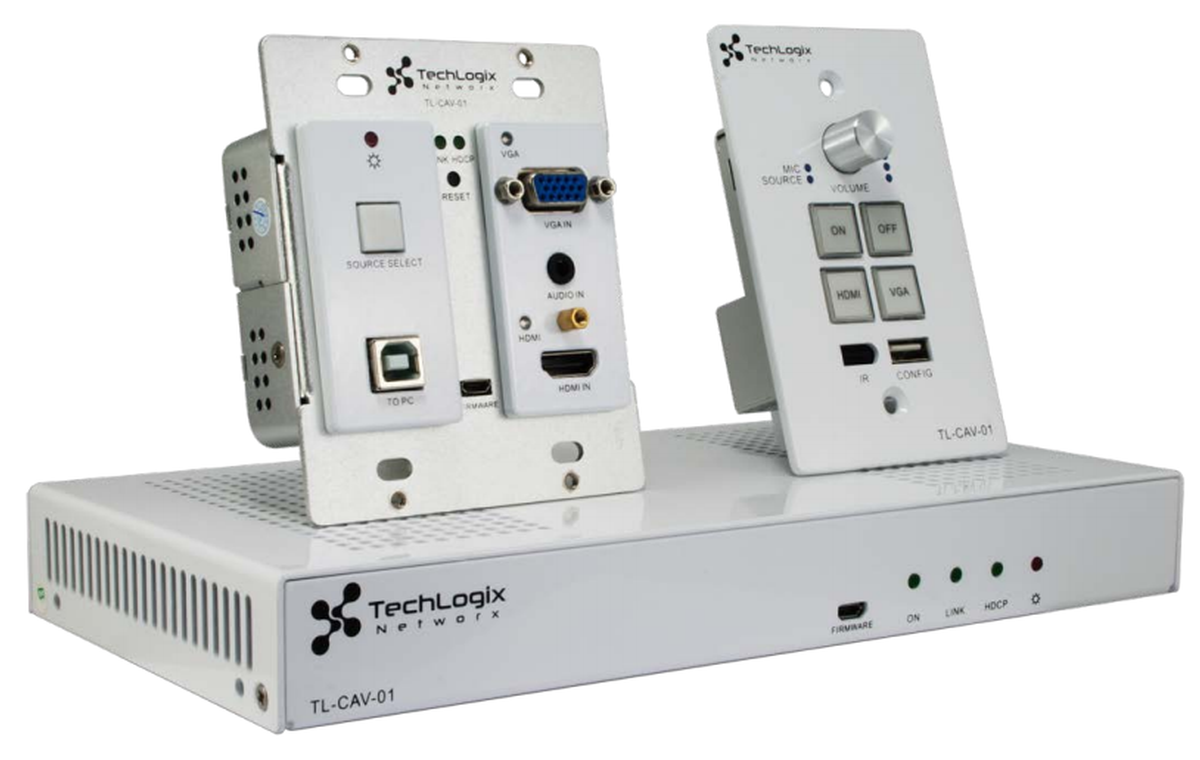

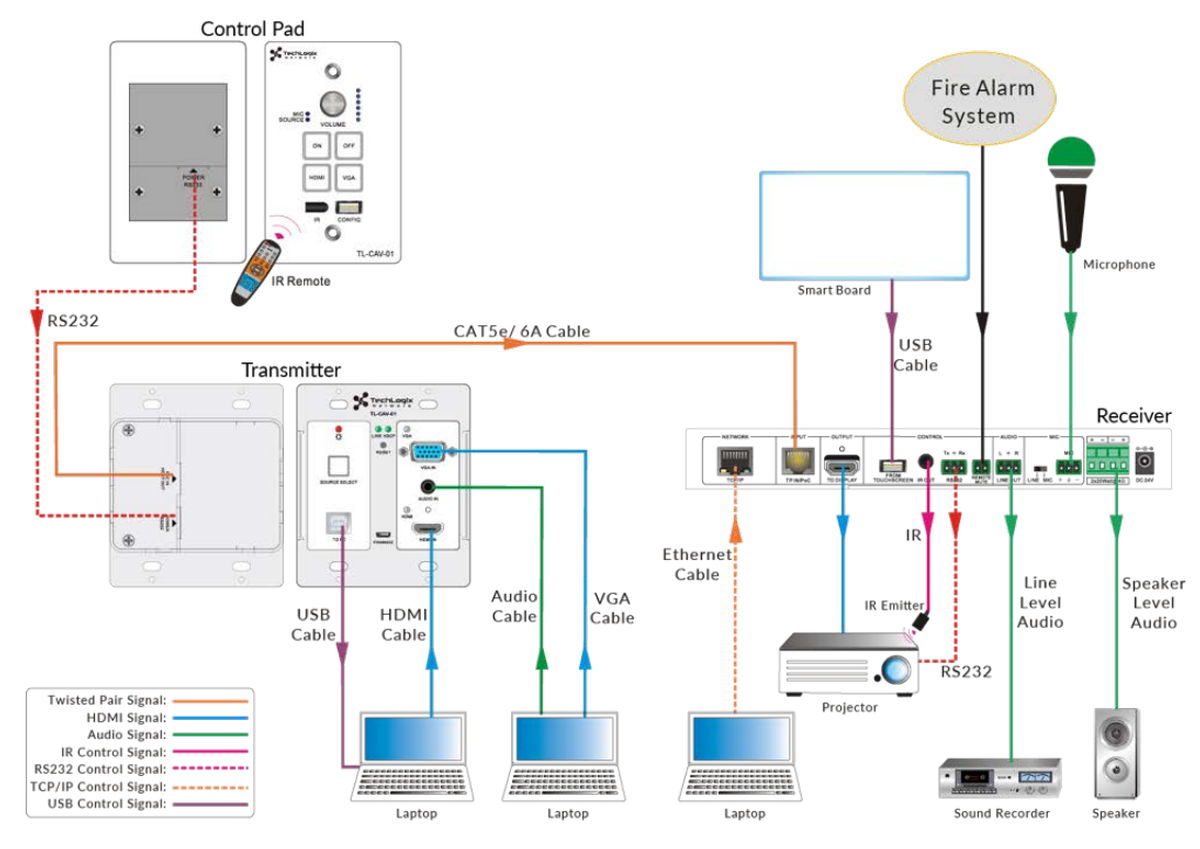

TechLogix TL-CAV-01-HDV is your all-in-one AV system, ready for you and your AV environment. The system includes 2 HDMI inputs, and features audio and video routing and control. The face plate provides source selection and volume control. The TL-CAV-01-HDV includes the following items to complete your AV system:
- (1) included wallplate transmitter

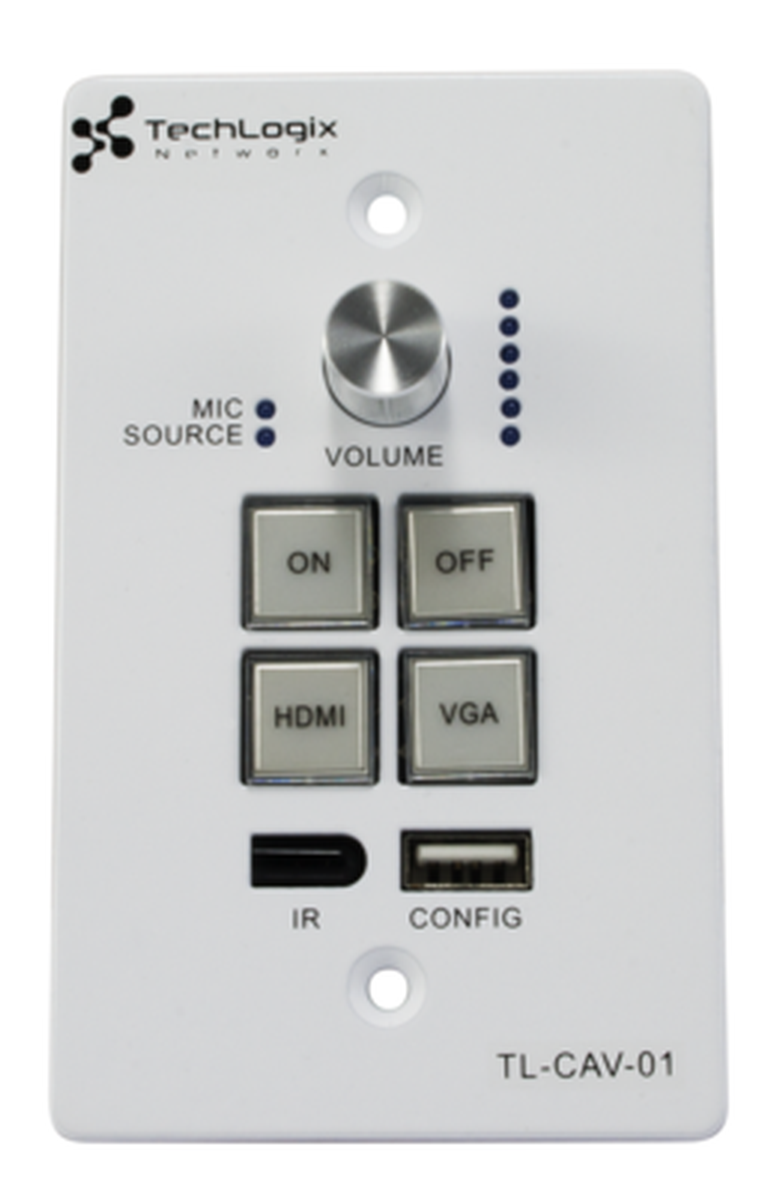

- (1) included wallplate controller
- (1) included surface-mount receiver/processor
- (1) HDMI & (1) VGA source input on the wallplate
- Automatic switching with connection sensing
- Manual control via IR and RS232
- USB pass-through for interactive whiteboard integration
- Single twisted pair connectivity
- Mic/line input with 48V phantom power
- HDMI output with audio de-embedding
- Built-in 2x20W 4Ω amplifier
- TCP/IP connectivity for system wide monitoring and diagnostics
- Firmware upgradeable via USB thumb drive
- IR learning for control of connected devices
Specifications
- Analog Audio Input: 1 3.5mm stereo audio jack
- HDBT Output: 1 RJ45
- USB Control: 1 Type-B receptacle
- Source Select Button: 1 white button, blue back light
- Firmware Update: 1 covered USB Type B micro receptacle
- Power + RS232: 1 RJ45 receptacle

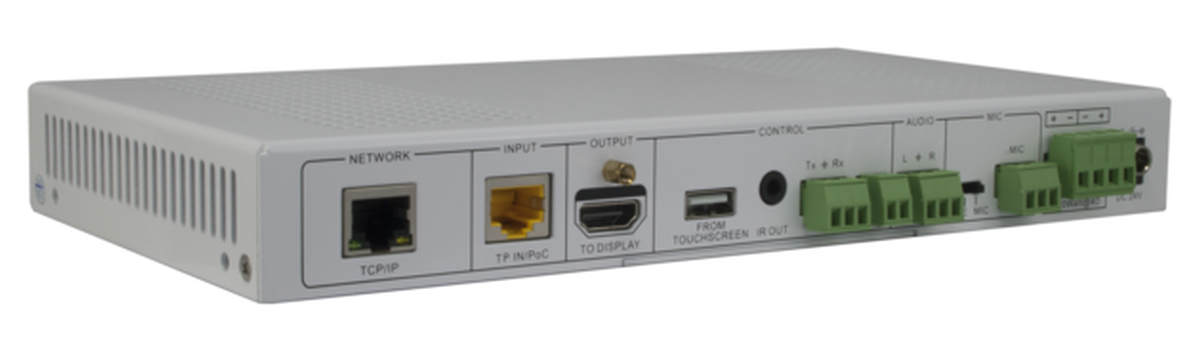

- Surface Mount Receiver Processor I/O Connections
- HDBT Input: 1 RJ45 receptacle
- HDMI Output: 1 Type A receptacle
- Audio Input:1 MIC, 3-pin captive screw connector
- Audio Outputs: 1 Amplifier output, 4-pin captive screw connector, 1 Line out, amplifier loop audio, 3-pin captive screw connector
- TCP/IP Control: 1 RJ45 receptacle
- RS232 Control: 1 3-pin captive screw connector
- IR OUT: 1 3.5mm stereo audio jack USB Control: 1 Type A receptacle
- Remote: 1 2-pin captive screw connector
- Volume/Control: 1 Knob
- Button: 4 white buttons, blue back light
- USB: 1 Type-A receptacle
- IR: 1 Built-in IR receiver
- RS232 + Power: 1 RJ45 receptacle
- Supported Video, Audio and Control
- Maximum Video Compatibility (HDMI): Deep Color 48/36/30/24 Bit at 1080p
- Maximum Video Compatibility (VGA): 1920x1200
- Maximum HDBT Transmission Distance: 30m (98ft)
- EDID: Pass-through from display
- VGA EDID: 1360x768
- Supported VGA Input Resolutions: Up to 1920x1200
- Supported VGA Output Resolutions: Up to 1920x1200
- HDCP: HDCP1.4 compliant
- HDMI Embedded Audio: Up to 8 channel, Dolby Digital TrueHD, and DTS-HD master audio
- Amplifier/Line Out Frequency Response: 20 Hz~20 KHz Analog Audio Output Impedance: 50
- IR Carrier Frequency Range: 33-55KHz at 5V
- USB Transmission Rate: USB 2.0 standard compliant
- TCP/IP control: Built-in GUI
- Chassis and Environmental
- Maximum Power Consumption: 55W
- Power Supply: DC 24V at 2.71A
- Standard Warranty: 3 Year
