TechLogix TL-CPT-HD01
HDMI Under-Table Pass-Through

Description

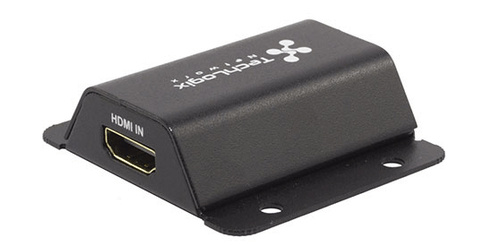

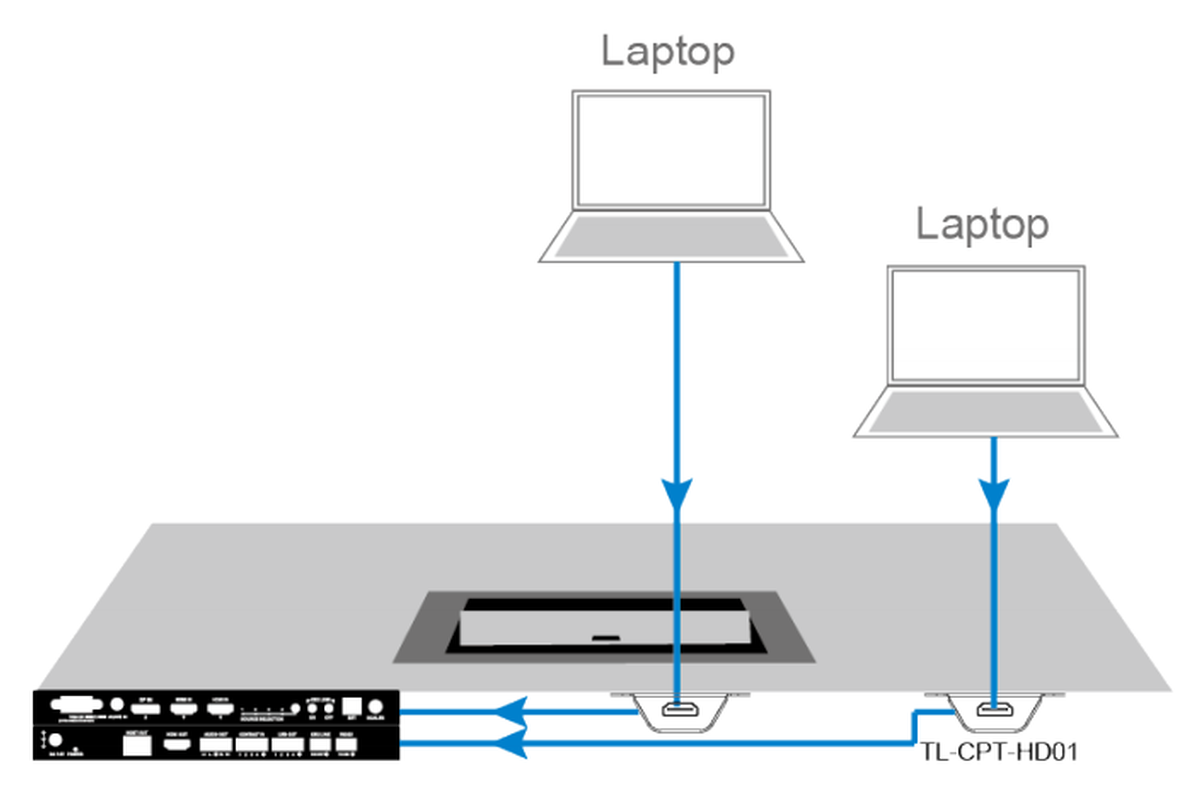

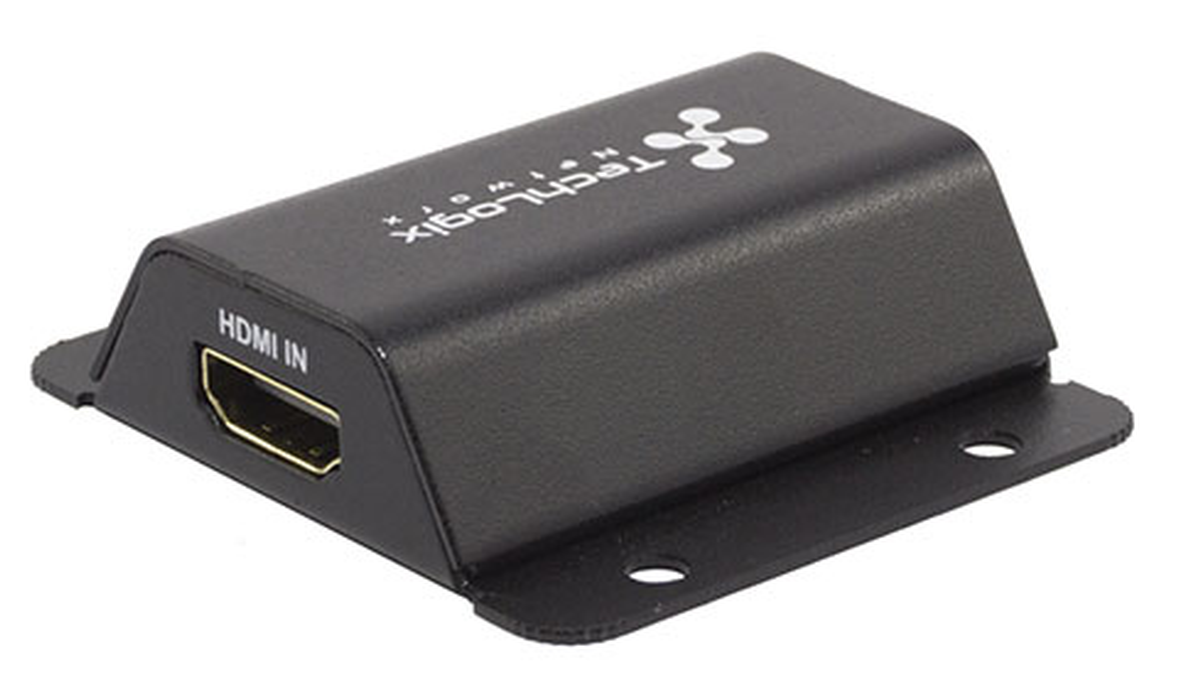

TechLogix under-table pass-through HDMI port, the TL-CPT-HD01, is an HDMI connection port that can be fastened to tables, podiums, desks, racks, and other AV equipment stands. This low-profile connector enables plug-and-play connectivity from the port. Key features of the TL-CPT-HD01 include the following:

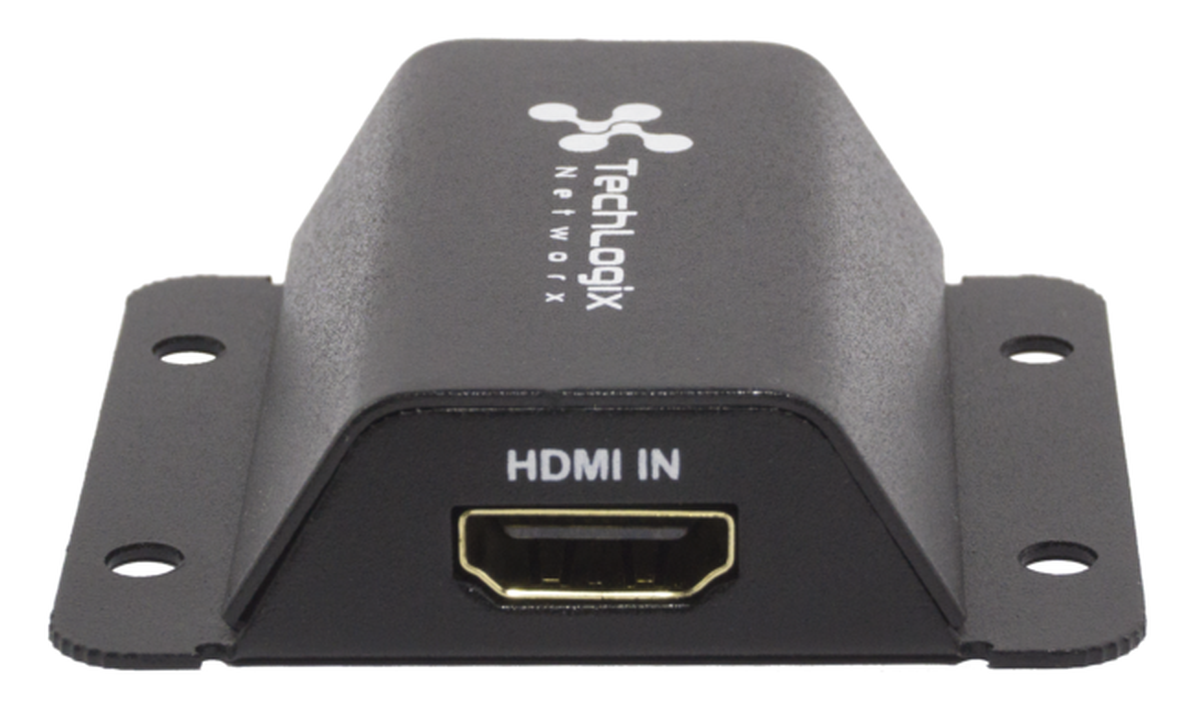

• Female HDMI input

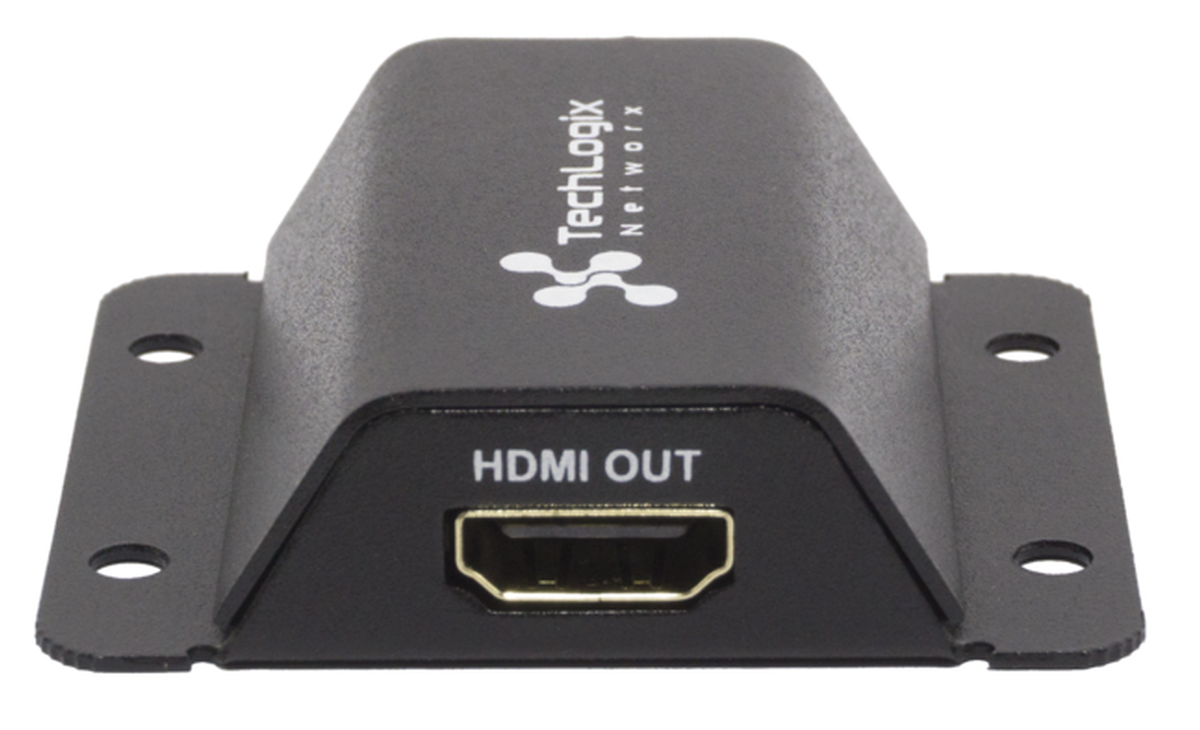

• Female HDMI output
• Pass-through signal design
• 4K@30 compliant
• HDCP 2.2 compliant
• Hot-plug compliant
• HDMI 2.0 compliant
• Powered through the HDMI connection

Specifications

• Input Video Level: 0.5-1.0V p-p
• Maximum Pixel Clock: 600MHz
• Output Signal Type: HDMI 2.0
• Output: 1 x HDMI Out
• VESA Output Resolution Support: 1920x1200@60Hz
• SMPTE Output Resolution Support: 4096x2160@60Hz
• Video Impedance: 100 Ohms
• Audio Input: Stereo, Dolby digital, Dolby TrueHD, DTS Digital, DTS Master Dolby Atmos, DTS-X
• Audio Output: Stereo, Dolby Digital, Dolby TrueHD, DTS Digital, DTS Master Dolby Atmos, DTS-x
• ESD Protection: Human-body Model: +/-8kV (air-gap discharge) / +/-4kV (contact discharge)
• Surge Protection: Voltage +/-kV (ten times respectively for positive and negative voltage)
• Electrical Fast Transient/Burst: Data communication cord: 1kV / Power Cord: 2kV
• Dimensions: 2.37" x 0.66" x 2.13"
• Weight: 0.06kg
• Certification: CE, FCC, RoHS
• Warranty: 3 years
