TechLogix TL-SM3X1-HDV
3x1 Collaboration Switcher with HDMI and VGA Inputs

Description

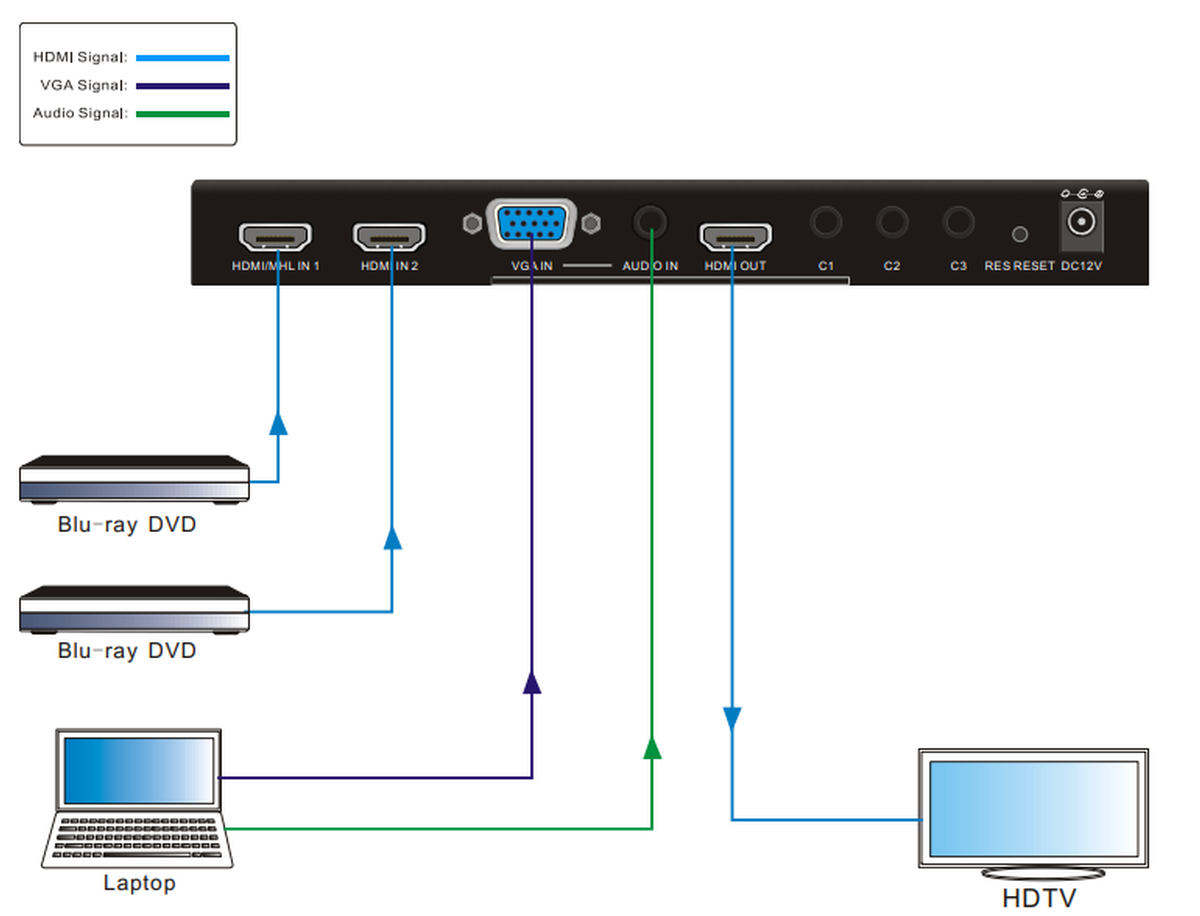

TechLogix introduces the Share-Me line of collaboration AV equipment, ideal for school or work environments. The TL-SM3X1-HDV is a collaboration switcher featuring 2 HDMI inputs, 1 HDMI output, and a VGA input. The TL-SM3X1-HDV can be used in auto-switching or manual-switching mode. The auto-switching capability enables you to plug into the switcher and automatically set the input, where the manual switching capability requires a control command via the remote (IR) or from the front panel. The TL-SM3X1-HDV can control displays as well, which allows On/Off commands to transmit from the unit to the display, saving you energy and extra steps.

Other key features of this switcher include:

• HDMI video resolution up to 4K@30Hz 4:4:4
• VGA video resolution up to 1920x1200@60Hz
• Compliance with HDMI 1.4 and HDCP 1.4
• IR remote control and front panel controls
• EDID pass-through
• Hot-plug support
• Micro USB Firmware Port

Specifications

• Audio Input Connector: 1 3.5mm stereo jack
• Audio Input Impedance: >10k
• Video Output: 1 HDMI
• Video Output Connector: 1 female HDMI
• Output Video Signal: HDMI
• HDMI Output Resolution: Supports HDMI 1.4 & HDCP 1.4 maximum resolution of 4K@30 4:4:4
• VGA Output Resolution: Supports HDMI 1.4 & HDCP 1.4 maximum resolution of 1920x1200
• Other Supported Resolutions Include: 1920x1080, 1600x1200, 1600x900, 1360x768, 1280x800, 1280x720, or 1024x768
• Frequency Response: 20Hz~20K Hz
• Stereo Channel Separation: >80dB @1KHz

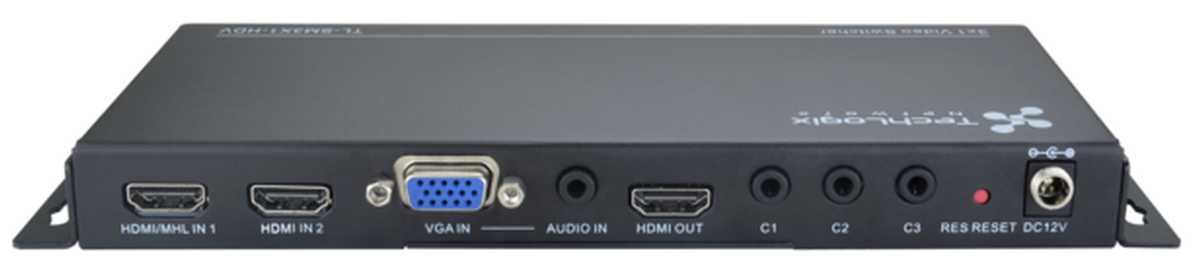

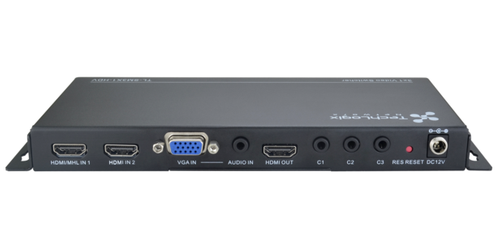

• Control Port: 3 Dry Contact (C1~C3), 1 FIRMWARE
• Control Connector: 3 3.5mm mini jack, 1 Micro-USB

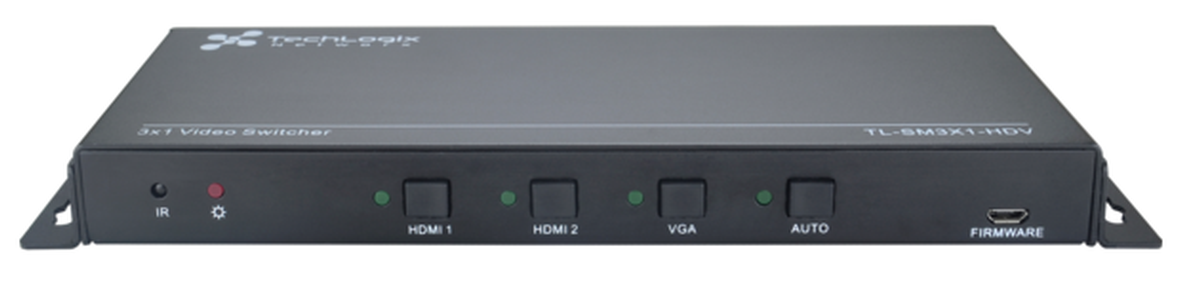

• Control Buttons: Front Panel: HDMI 1, HDMI 2, VGA, AUTO / Rear Panel: RES RESET
• Temperature: 0 ~ +50 C
• Humidity: 10% ~ 90%
• Power Supply: DC12V 1A
• Max Power Consumption: 2W
• Dimension (W*H*D): 201.5mm x 22.0mm x 84.0mm (7.9"x0.86"x3.30")
• Weight: 246g (1 lb.)

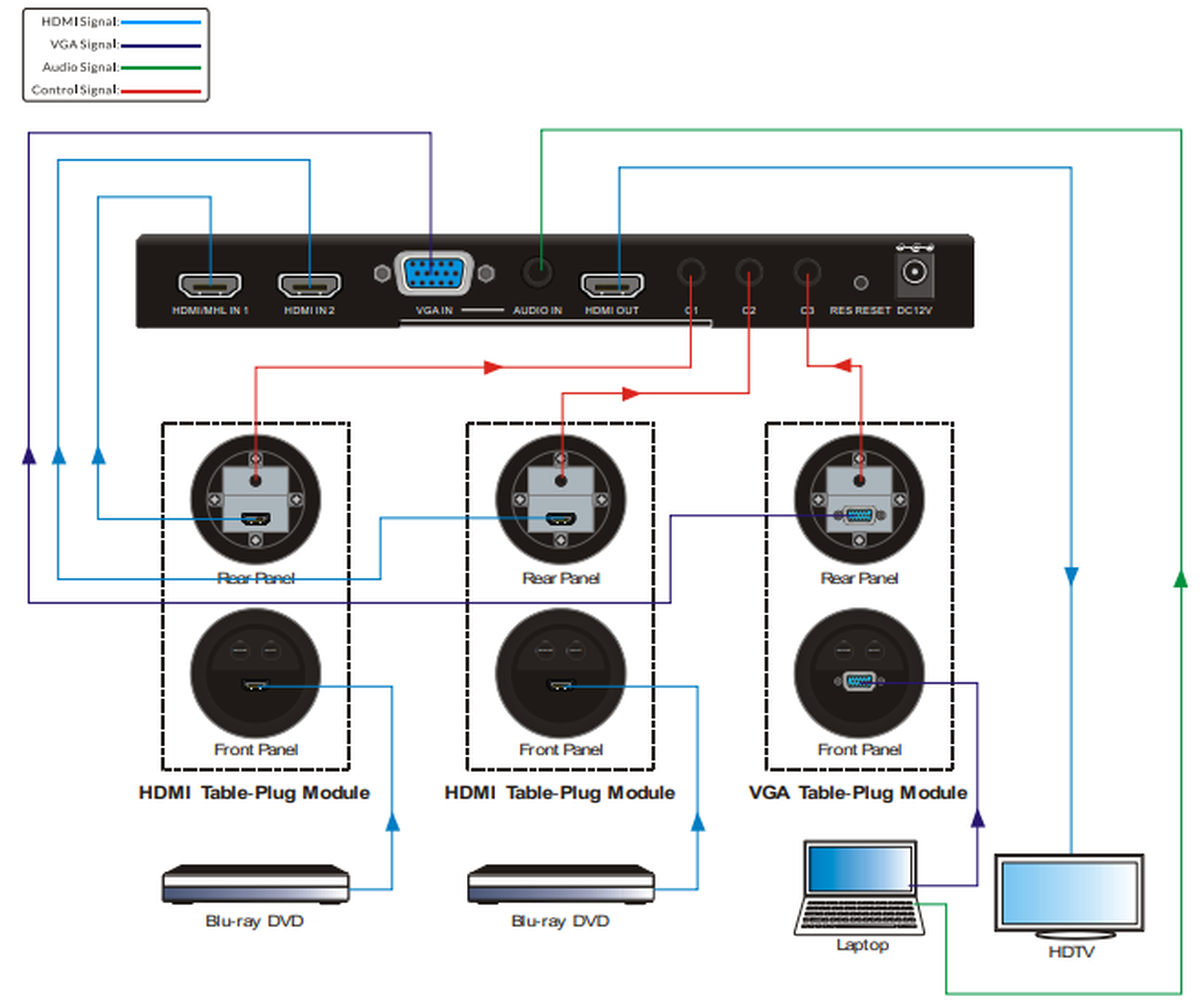

• Compatible TechLogix Table Inserts: TL-SMG-HD (HDMI), TL-SMG-VGA (VGA), TL-SMG-DP, (DisplayPort)
• Warranty: 3 years

Downloads

• TechLogix TL-SM3X1-HDV Specifications (PDF)
• TechLogix TL-SM3X1-HDV Manual (PDF)
