TechLogix TL-SMKIT-03
Share-Me Kit: Switcher, 1 HDMI, 1 VGA, HDMI Cable, 1 VGA Cable
- TL-SM3X1-HD Switcher Specifications
- Video Input: 1 HDMI/MHL, 2 HDMI
- Video Input Connector: 3 female HDMI
- Input Video Signal: HDMI
-Brandon K.
Description

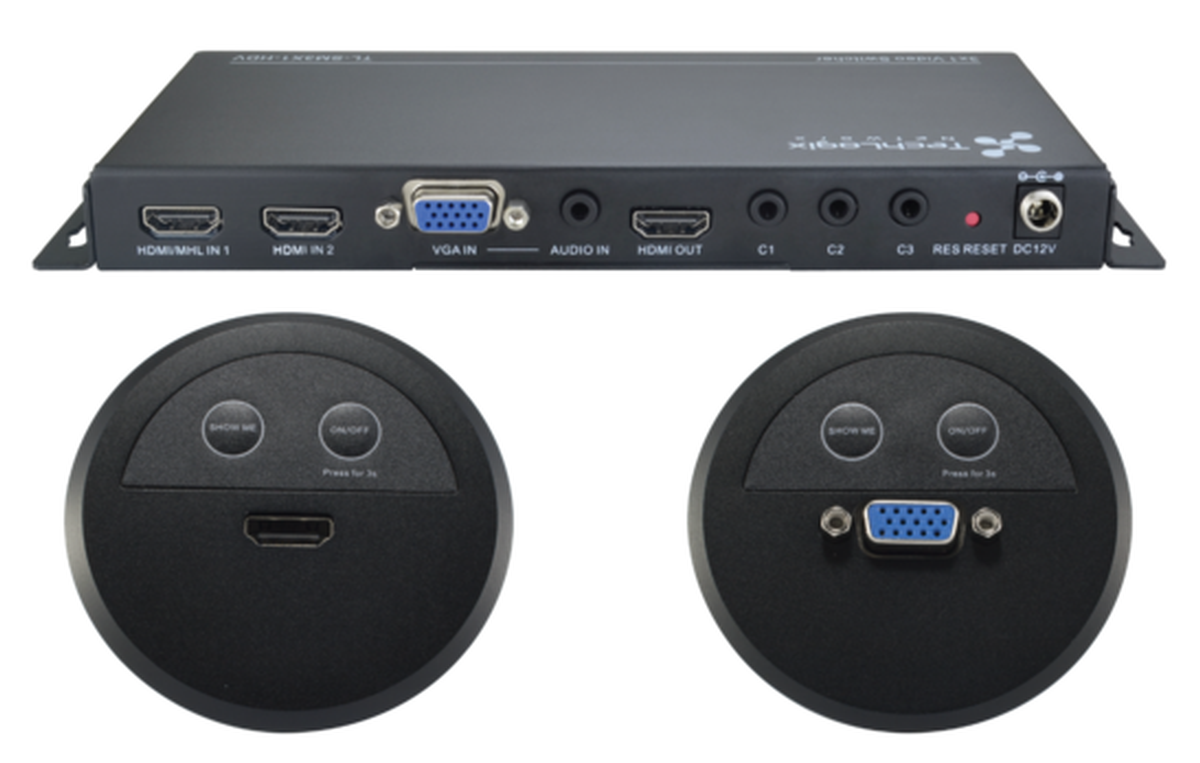

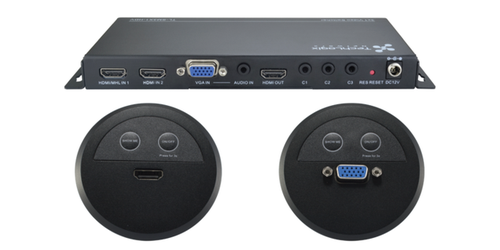

TechLogix introduces the Share-Me line of collaboration AV equipment, ideal for school or work environments. The TL-SMKIT-03 Share-Me kit includes the TL-SM3X1-HD switcher, 1 TL-SMG-HD HDMI control grommet, and 1 TL-SMG-VGA VGA control grommet.
The TL-SMG-HD is a grommet control port with HDMI connection. These grommets are placed into presentation work surfaces and enable users to connect their own devices via HDMI and present the contents of their device to a display. The TL-SMG-VGA is a grommet control port with VGA connection.

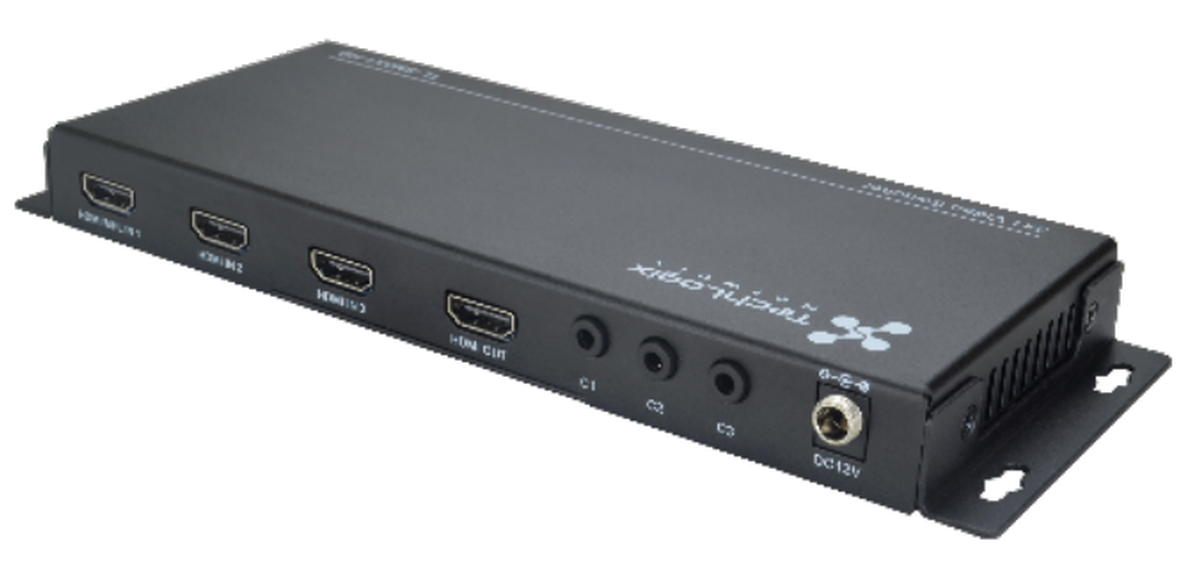

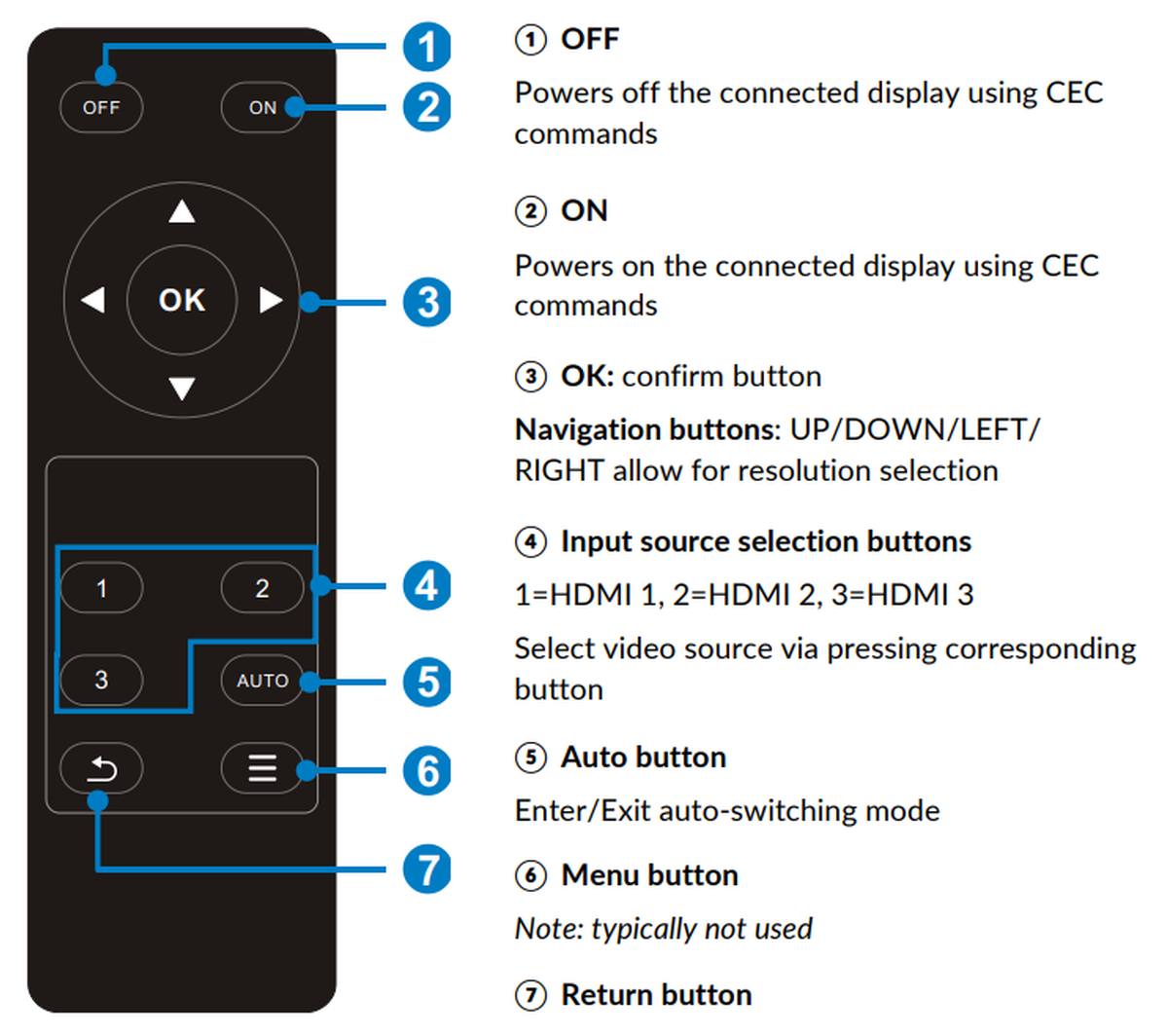

The TL-SM3X1-HD is a collaboration switcher featuring 2 HDMI inputs and 1 HDMI output. The TL-SM3X1-HD can be used in auto-switching or manual-switching mode. The auto-switching capability enables you to plug into the switcher and automatically set the input, where the manual switching capability requires a control command via the remote (IR) or from the front panel. The TL-SM3X1-HD can control displays as well, which allows On/Off commands to transmit from the unit to the display, saving you energy and extra steps.
Key features of this kit include the following:
- Switcher with 2 HDMI inputs, 1 VGA input, and 1 HDMI output
- 1 HDMI control grommet and 1 VGA control grommet
- Includes 1 6-foot HDMI cable and 1 6-foot VGA cable
- Includes 3 6-foot SMC controller cables
- Manual or automatic switching modes
- HDMI ports support DisplayPort and MHL
- CEC display control
- Under table mounting kit included
- Quick connect ports for table insert integration
Specifications
- Video Output: 1 HDMI
- Video Output Connector: 1 female HDMI
- Output Video Signal: HDMI
- Output Resolution: HDMI output video supports HDMI 1.4 and HDCP 1.4 maximum resolution of 4K@30
- Control Port: 3 Dry Contact (C1~C3), 1 FIRMWARE
- Control Connector: 3 3.5mm mini jack, 1 Micro-USB

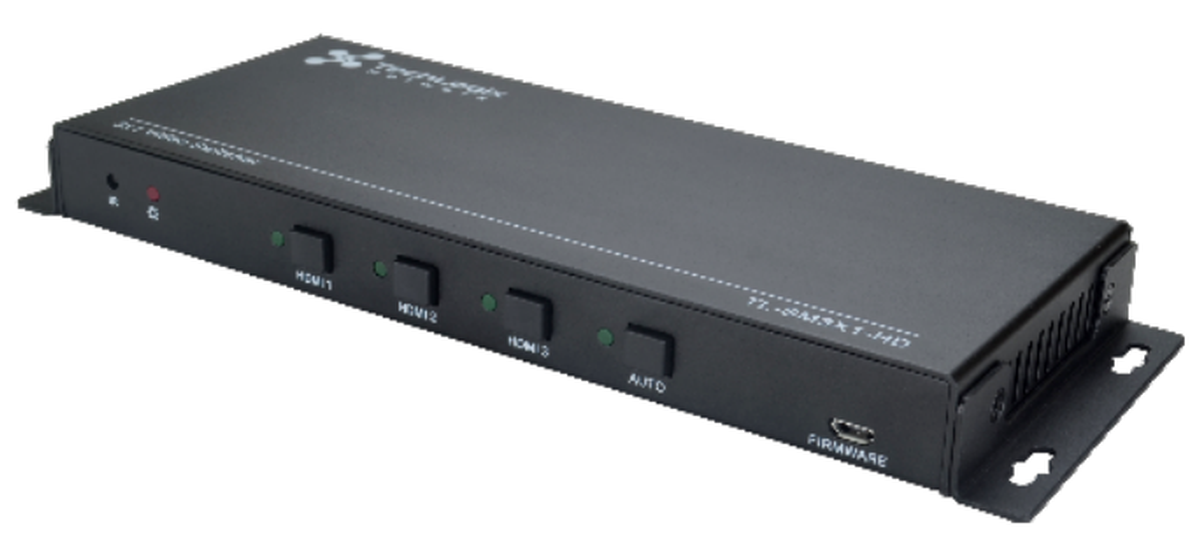

- Control Buttons: HDMI 1, HDMI 2, HDMI 3, AUTO
- Temperature: 0 ~ +50
- Humidity: 10% ~ 90%
- Power Supply: DC12V 1A
- Max Power Consumption: 2W
- Dimension (W*H*D): 7.9"x0.86"x3.30"
- Weight: 0.54 lbs.
- Warranty: 3 years

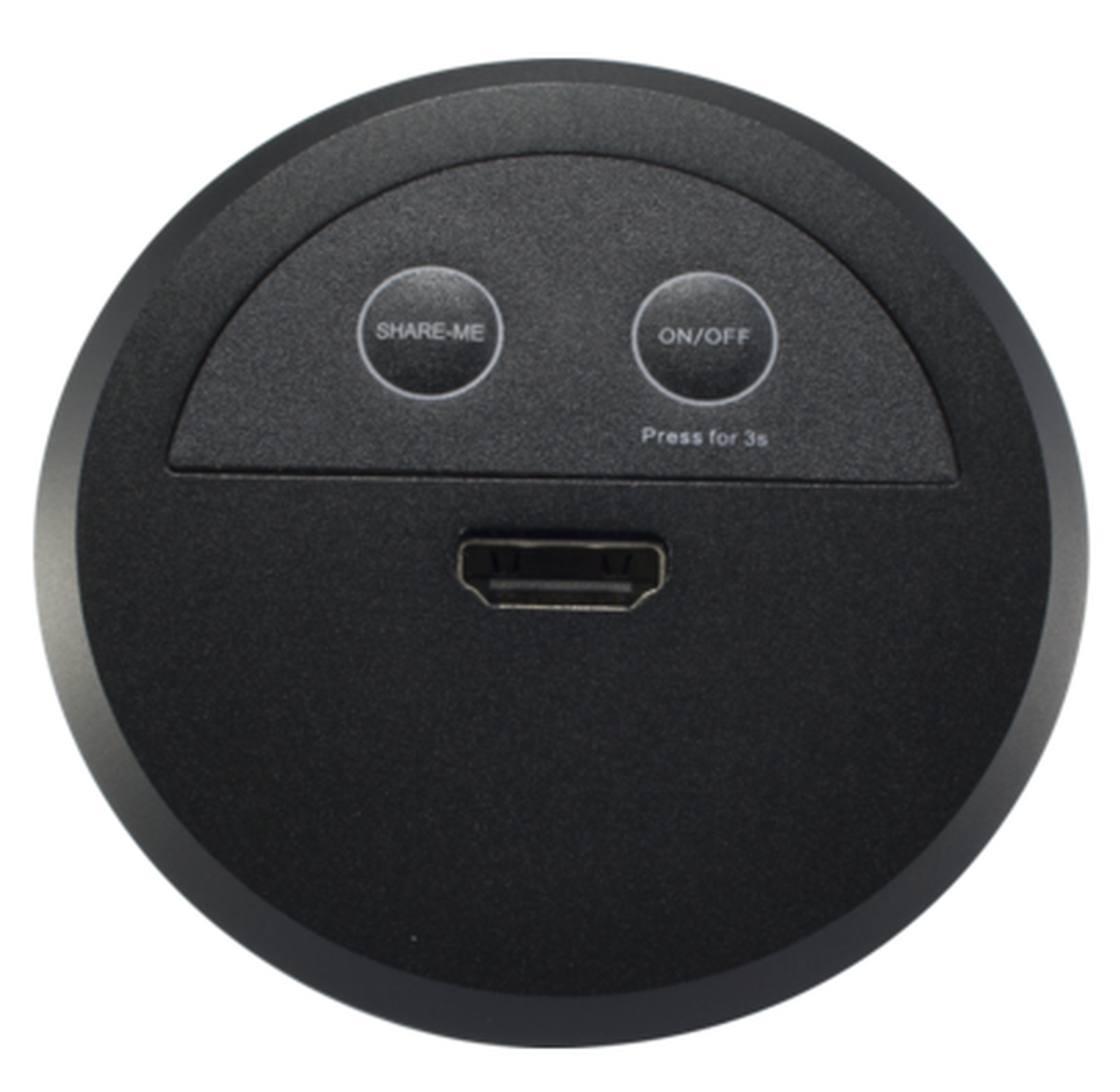

- HDMI Control Grommet Specifications
- HDMI Pass-Through
- HDMI 2.0a Compatible
- 1 HDMI Female Port (Top)
- 1 HDMI Female Port (Bottom)
- Plug-and-Play, Hot-Swappable, Hot-Pluggable
- Snagless under-table mounting
- Aluminum top panel (black finish) with steel housing
- New Installation hole diameter 2.25"
- Retrofit hole size range 2.25"~2.75"
- Maximum table thickness 1.5"
- Warranty: 3 years

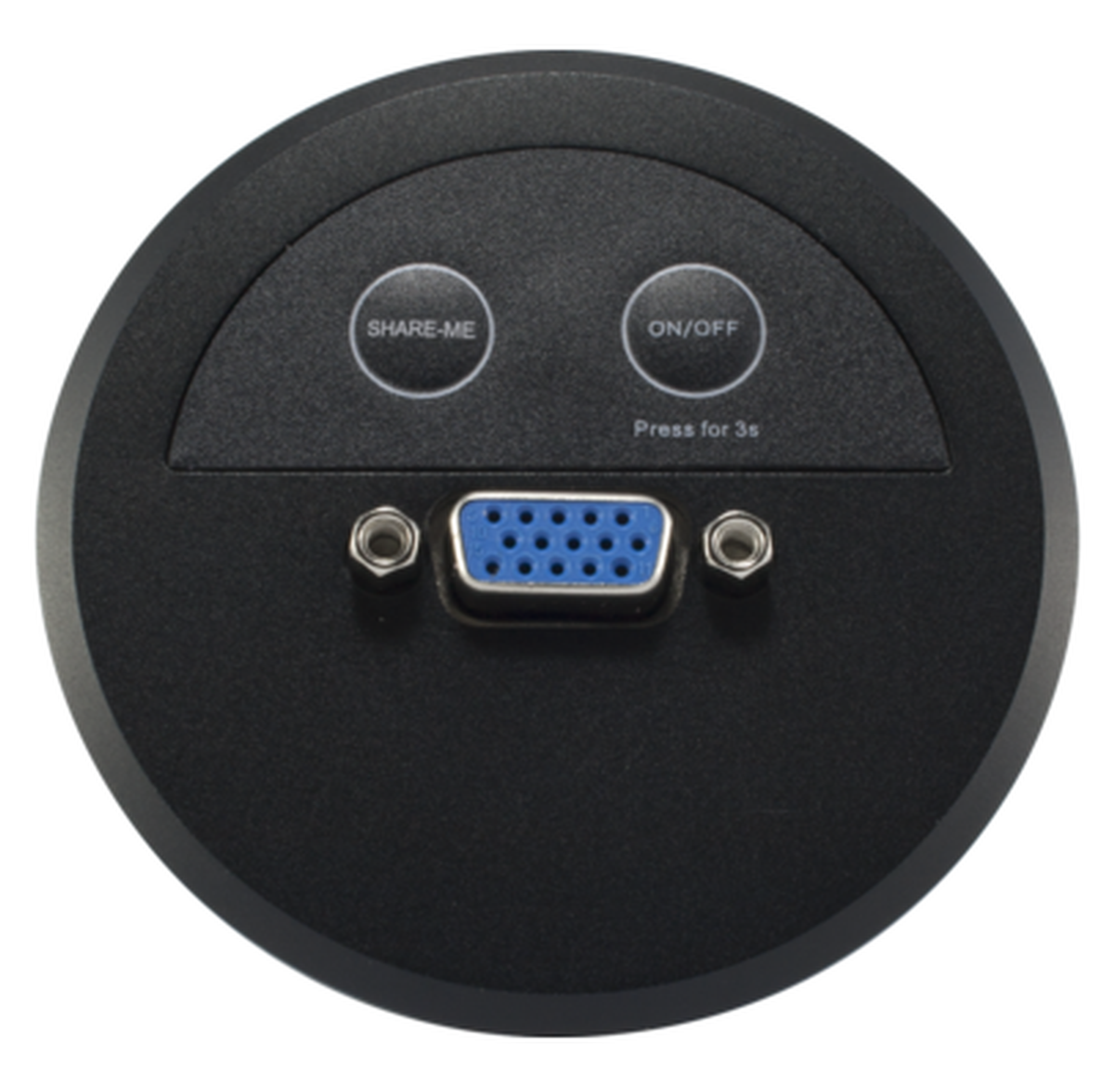

- VGA Control Grommet Specifications
- Mounting hole size: 2.25"
- Table top connection: female VGA
- Under table connection: female VGA
- Control cable connection: 3.5mm
- Buttons: ON/OFF: sends a control command to the display to power on or off / SHOW ME: sends a control command to the switcher to make the table insert live
- Warranty: 3 years
